Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
9 Confidential
Copyright © 2009 NOKIA
All rights reserved
Version 1.0
ISSUE 1

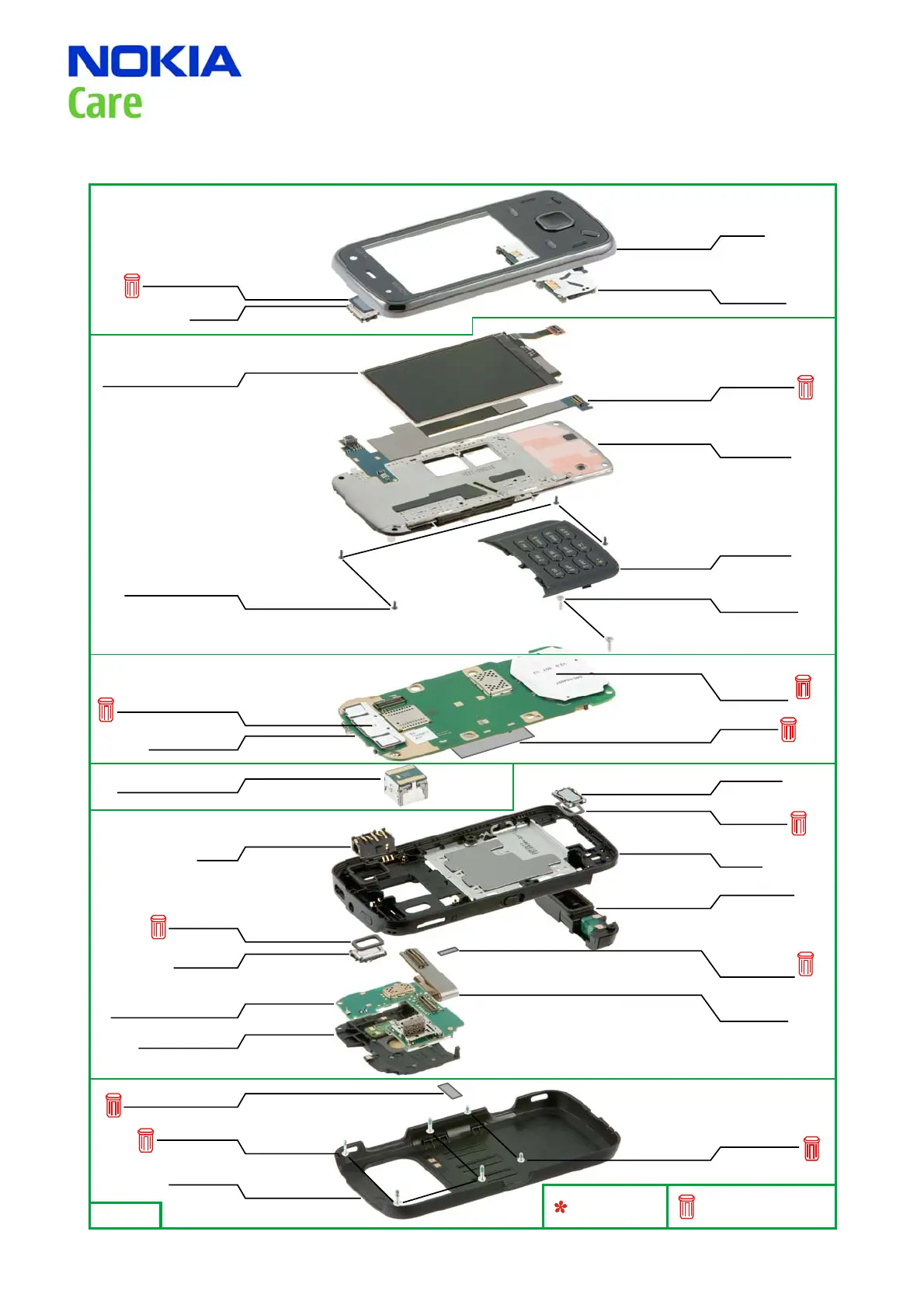

7. EXPLODED VIEW
Only available as
assembly
Ver. 1.0
These parts can not be
reused after removal
EARPIECE
I0003
DUSTNET EARPIECE
I0002
DISPLAY OLED AM 240x320
I0007
CROSS SLOTTED SCREW
I0103
MM KEYMAT DOMESHEET
I0203
LIGHT SWAP PWB
I0205
CAMERA MOD CMOS 8MP
I0207
AV-JACK
I0208
2SS 2ND ENGINE MODULE
I0214
CAMERA BEZEL ASSY
I0215
TEST PAD COVER LABEL
I0216
IHF SPEAKER
I0210
IHF ADHESIVE
I0209
SCREW TORX+ 6
I0218
C-COVER ASSY
I0219
SLIDE FPC ASSY
I0101
SLIDE MODULE
I0102
ITU-T KEYMAT
I0201
TYPE LABEL
I0206
IHF SPEAKER
I0210
IHF ADHESIVE
I0209
B-COVER
I0211
ANTENNA ASSY
I0212
WATER
INGRESS LABEL
I9998
CONNECTION
FLEX ASSY
I0213
SCREW TORX+ 4
I0217
SCREW TORX+ 6
I0202
ITU-T KEYMAT
DOMESHEET
I0202
S60 FPC ASSY
I0004
A-COVER
I0001
A1 = A-COVER ASSY (I0001-I0004)
A3 = B-COVER ASSY (I0208-I0215, I9998)
A2 = LIGHT SWAP CTR (ENGINE) GLOBAL (I0203-I0206)
