Nokia N86 Service Manual

Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
12 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

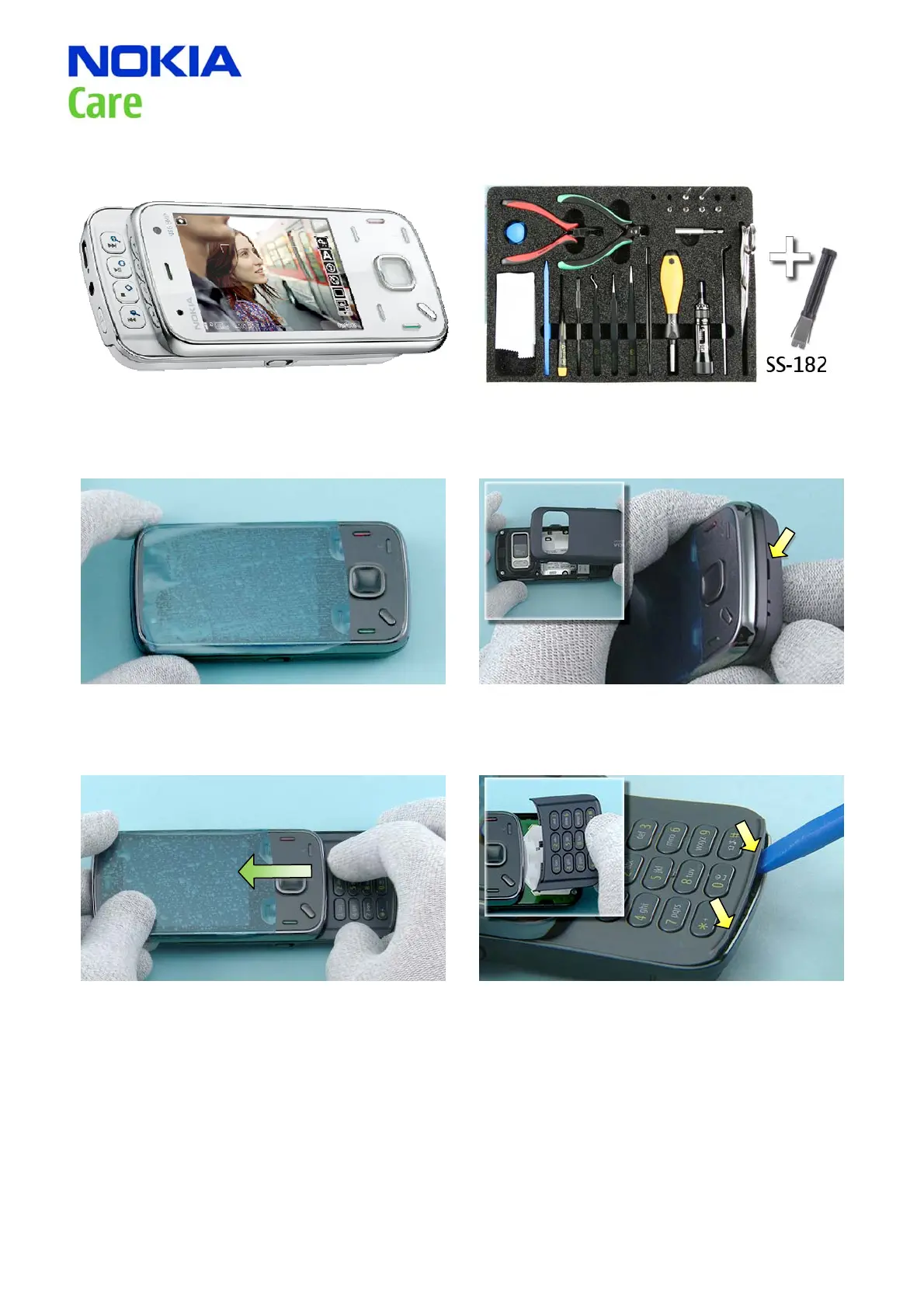

10. DISASSEMBLY INSTRUCTION
1) Nokia N86 8MP disassembly 1) You must use the Nokia Standard Toolkit version
2 and the SS-182 camera removal tool.
3) Protect the front cover with a protective film. 4) Release the BATTERY COVER and remove it.
5) Turn the phone and slide it open. 6) Use the SS-93 to release the keymat and remove
it by pulling it.

Nokia N86 Specifications

General

Display diagonal	2.6 \
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	8000 MB
Sensor type	CMOS
Rear camera type	Single camera
Rear camera resolution	3264 x 2448 pixels
Video capture resolution (max)	640 x 480 pixels
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Headphone connectivity	3.5 mm
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.9 h
Battery capacity	1200 mAh
Standby time (2G)	363 h
2G standards	EDGE, GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	16.5 mm
Width	51.4 mm
Height	103.4 mm
Weight	149 g
