• Set Operation mode to “Burst” (Default).
• Set Tx data type to “All1” (Default).
• Set Rx/Tx channel (see table below)
• Set Edge to “Off” (Default).
• Set Tx PA mode to “High” (Default).
• Set power level (see table below)
Band Channel (RX and TX) TX power level
GSM900 37 5
GSM1800 700 0
GSM1900 661 0

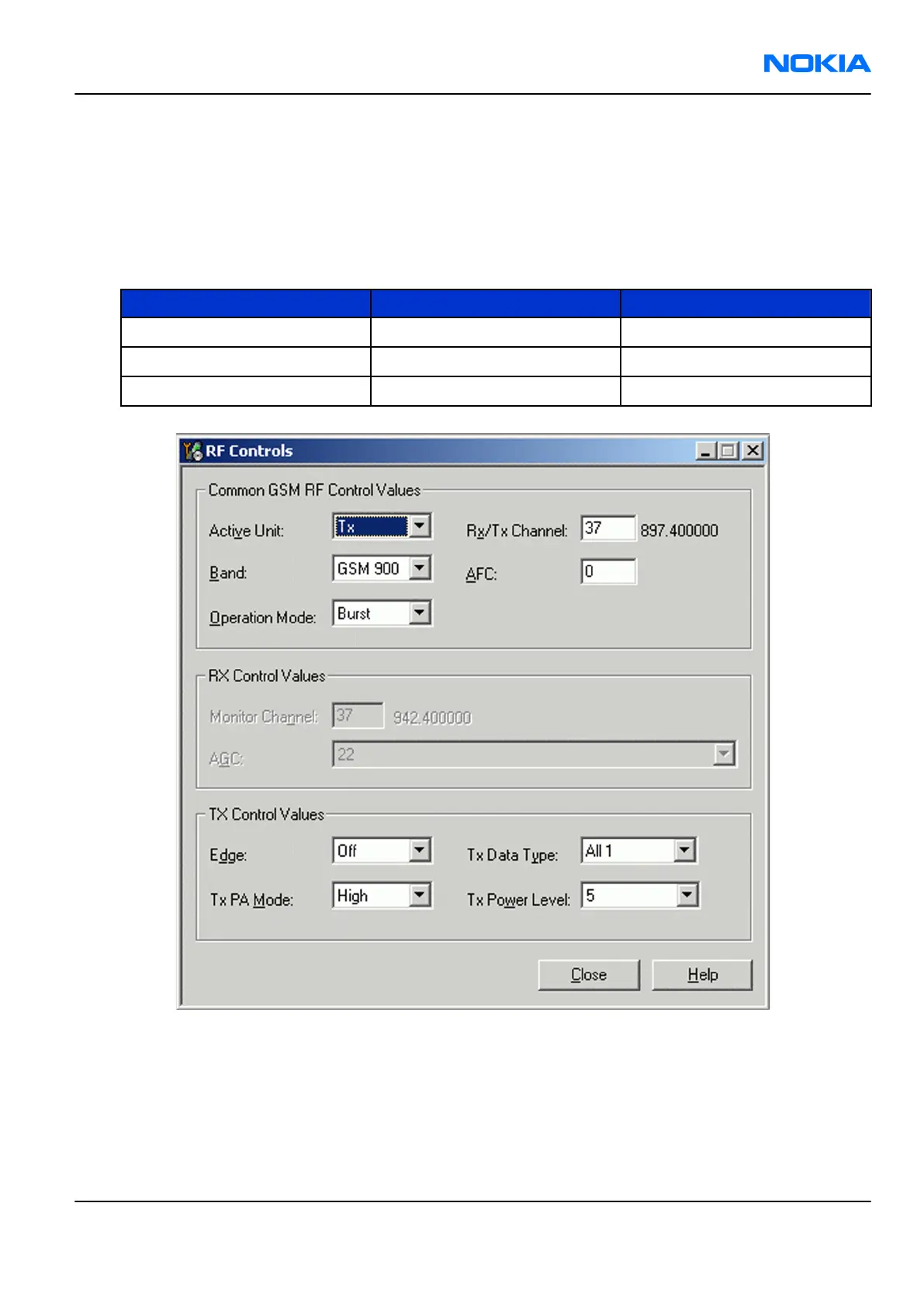

Figure 45 RF Controls window
RM-237
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –13
Copyright © 2007 Nokia. All rights reserved.
