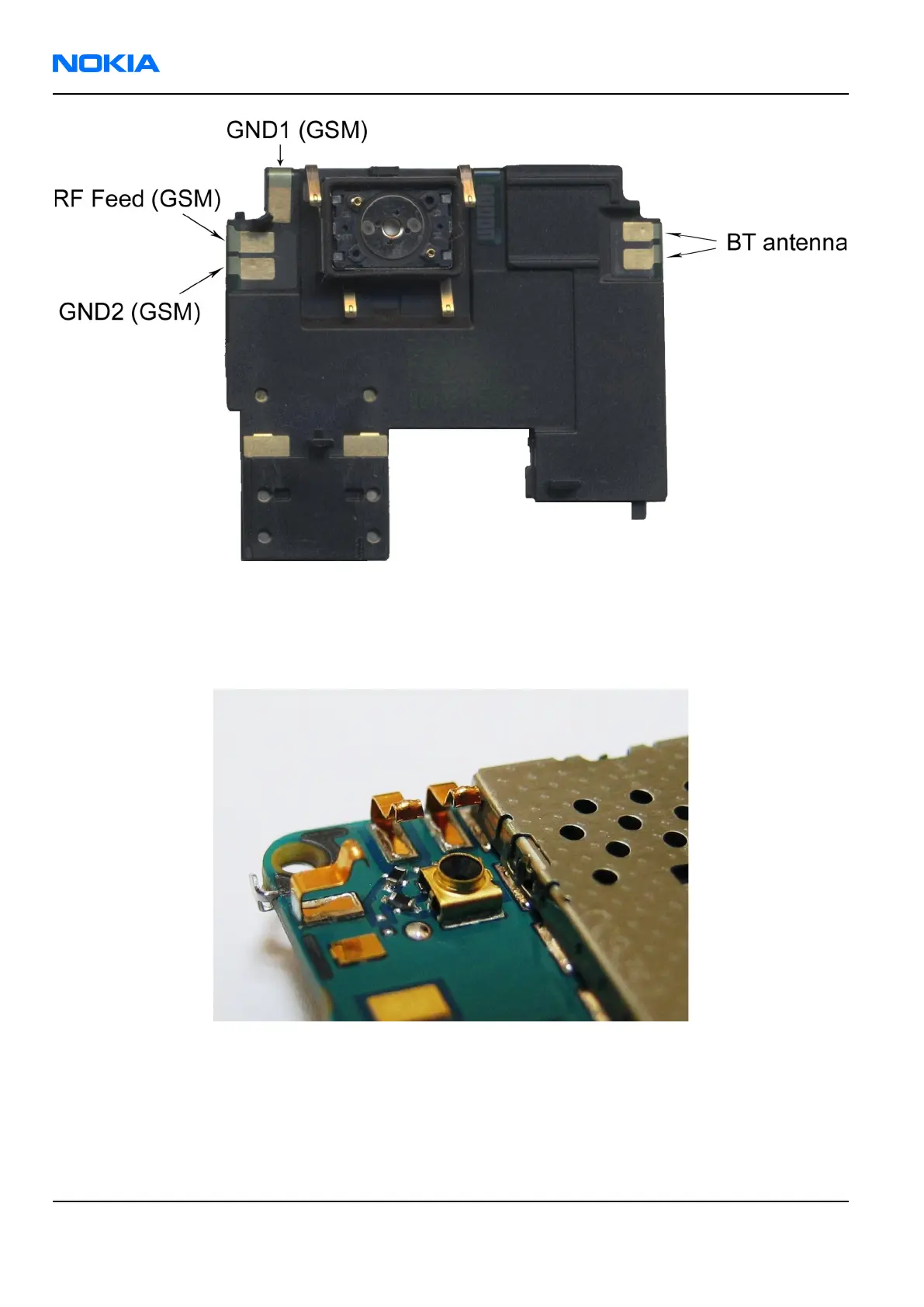

Figure 47 GSM and BT antenna contact pads on the antenna module
Antenna C-clips
When checking the antenna functionality, you can also check that the antenna C-clips are intact (that is, there
are no cracks/bends in them).
Figure 48 Antenna C-clips on the PWB
RM-237
Nokia Customer Care RF Troubleshooting and Manual Tuning Guide
Page 7 –16 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
