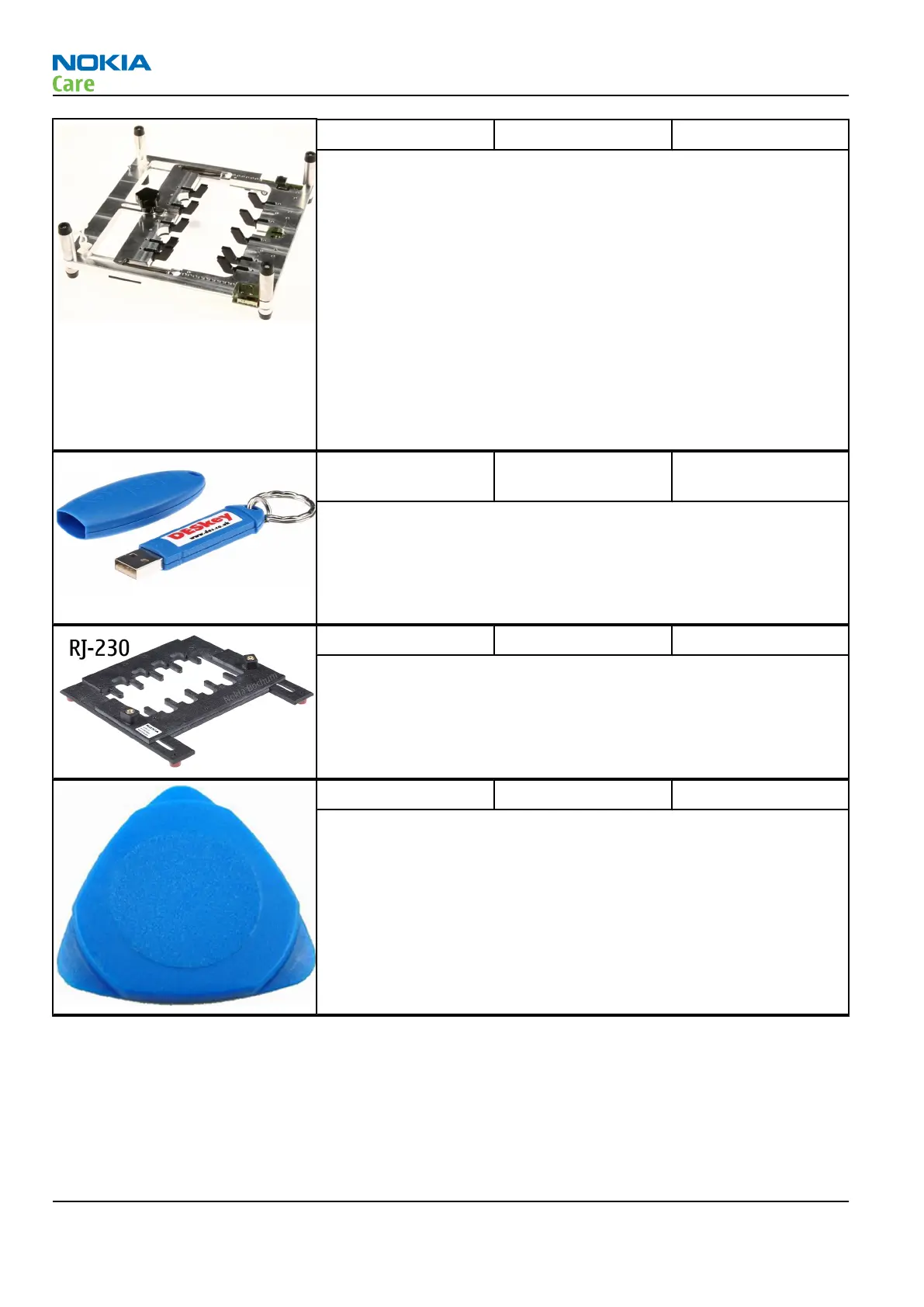

MJ-300 Module jig
Module jig MJ-300 can be used for flashing via USB and RF, battery and
system testing.
The main functions are:
•
Powering with external power
•
CU-4 interface adapter to phone (requires SS-227)
•
WLAN/BT/GPS RF-interfaces with probes
•
GSM/WCDMA RF-interfaces with probes
•
BSI mode selector (Tabby and Lynx interface, selected with battery
cable)
•
VBATT interface (Tabby and Lynx interface, selected with battery
cable)
•
CA-128RS cable is used together with this jig for RF testing
PK-1 Software protection
key
PK-1 is a hardware protection key with a USB interface. It has the same
functionality as the PKD-1 series dongle.
PK-1 is meant for use with a PC that does not have a series interface.
To use this USB dongle for security service functions please register
the dongle in the same way as the PKD-1 series dongle.
RJ-230 Soldering jig
RJ-230 is a soldering jig used for soldering and as a rework jig for the
engine module.
SRT-6 Opening tool
SRT-6 is used to open phone covers.
Note: The SRT-6 is included in the Nokia Standard Toolkit.
RM-761; RM-799; RM-800
Service Tools and Service Concepts
Page 2 – 8 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
