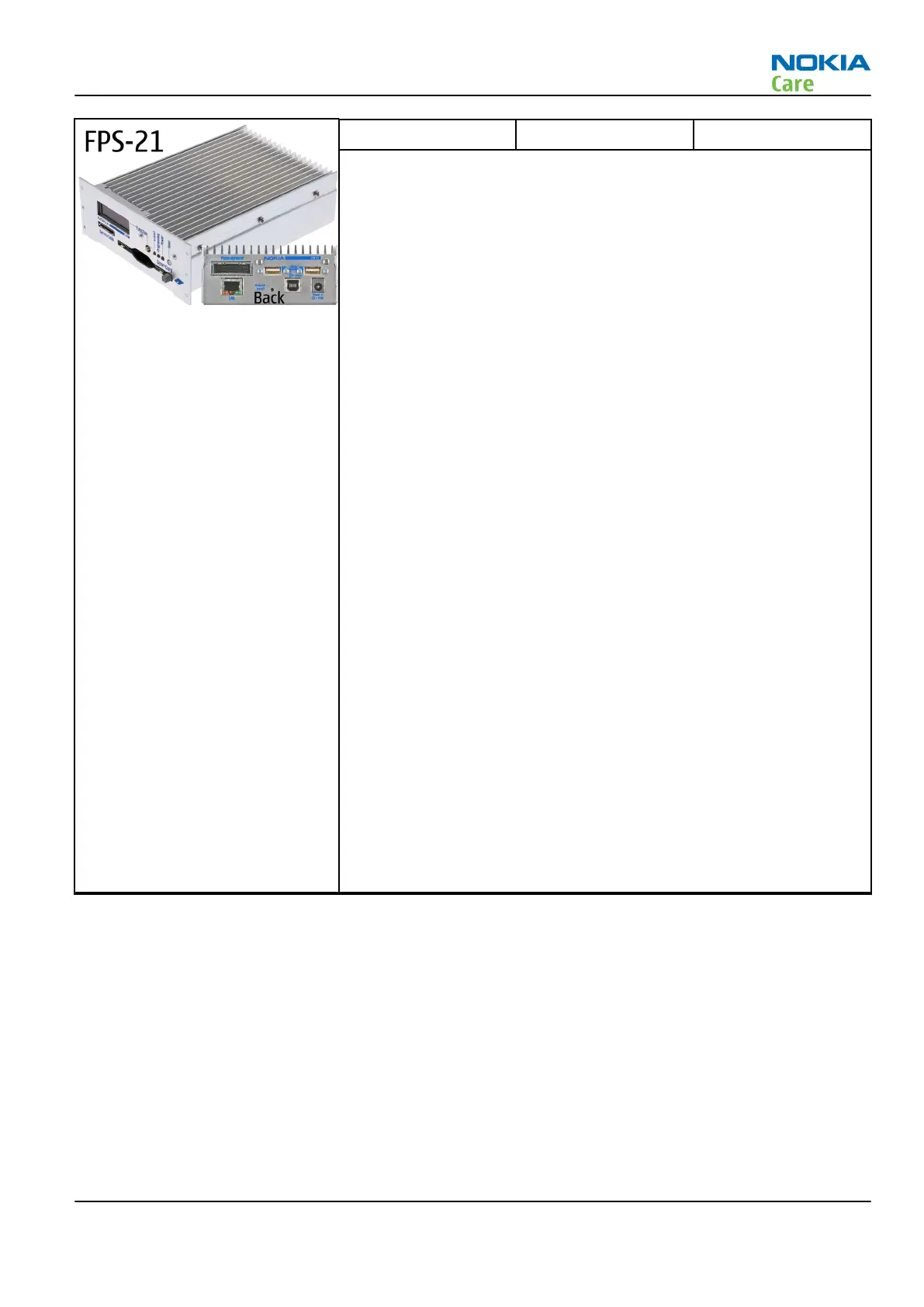

FPS-21 Flash prommer
FPS-21 sales package:
FPS-21 prommer
AC-35 power supply
CA-31D USB cable
FPS-21 interfaces:
Front
Service cable connector
Provides Flashbus, USB and VBAT connections to a mobile device.
SmartCard socket
A SmartCard is needed to allow DCT-4 generation mobile device
programming.
Rear
DC power input
For connecting the external power supply (AC-35).
Two USB A type ports (USB1/USB3)
Can be used, for example, for connecting external storage memory
devices or mobile devices
One USB B type device connector (USB2)
For connecting a PC.
Phone connector
Service cable connection for connecting Flashbus/FLA.
Ethernet RJ45 type socket (LAN)
For connecting the FPS-21 to LAN.
Inside
Four SD card memory slots
For internal storage memory.
Note: In order to access the SD memory card slots inside
FPS-21, the prommer needs to be opened by removing the
front panel, rear panel and heatsink from the prommer body.
RM-761; RM-799; RM-800
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 – 7
Copyright © 2011 Nokia. All rights reserved.
