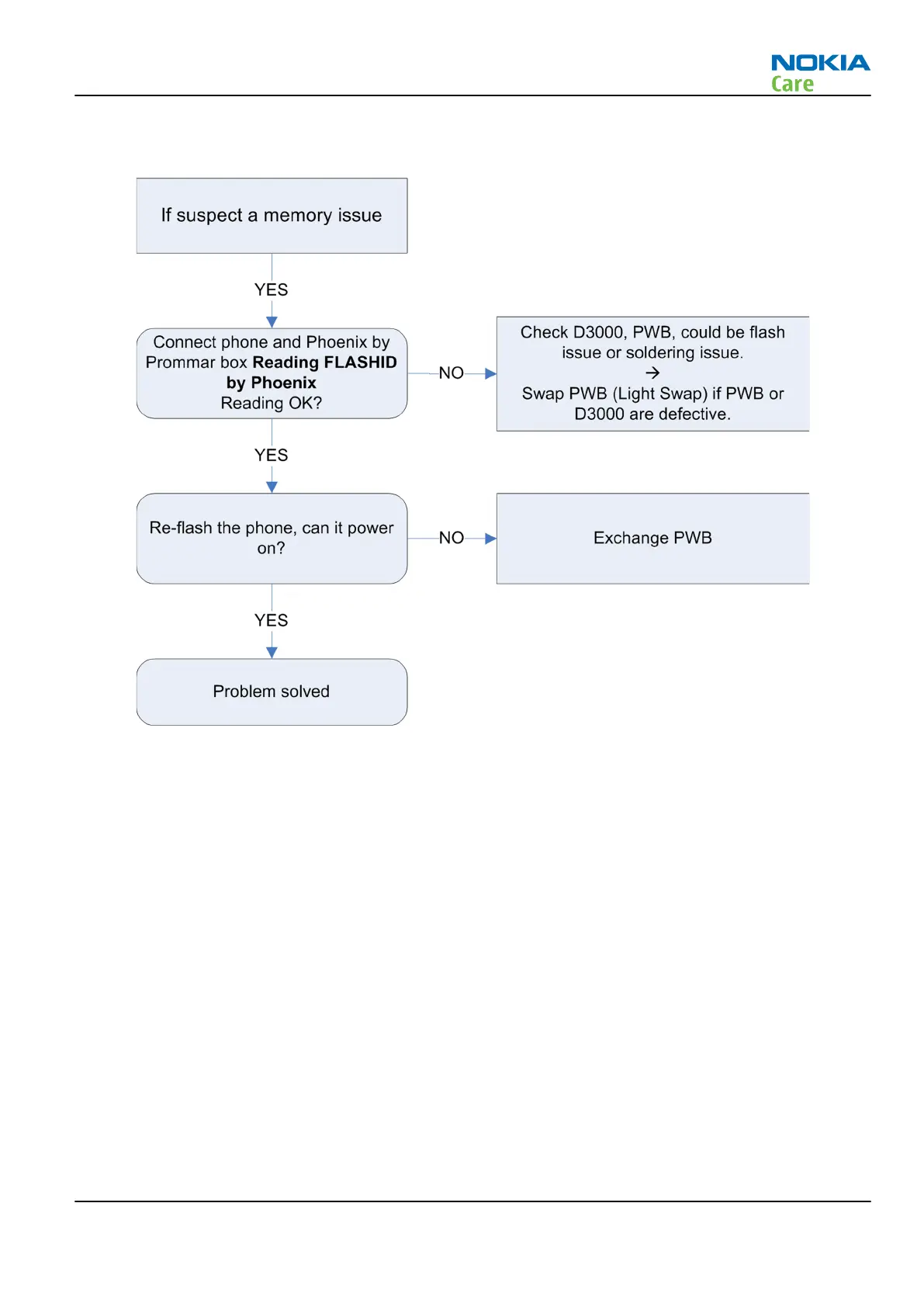

Troubleshooting flow
Charging troubleshooting
Can not identify charger
When inserting the wall adaptor into the phone, the phone will detect a valid voltage if charger output
voltage is 4.6 – 9.3V. But if something is wrong with the voltage detect/measurement circuit, then the phone
cannot correctly identify the charger.
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 – 13
Copyright © 2011 Nokia. All rights reserved.
