No valid data from Camera interface IC

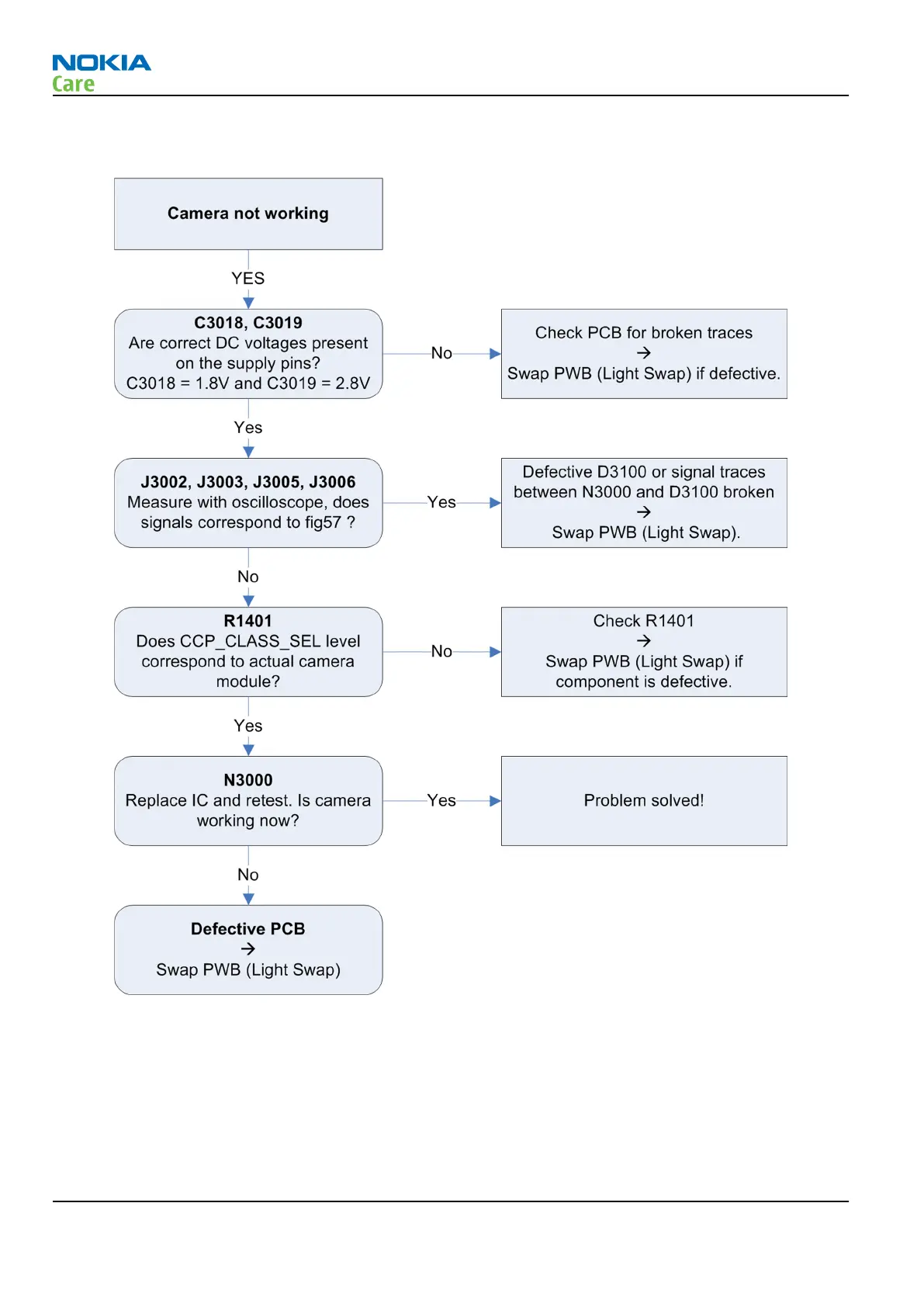

Figure 22 Camera interface IC troubleshooting guide
Configuration of the camera interface chip IC:
CCP_CLASS_SEL = GND: SMIA Class 0, Strobe pins functions as Clock inputs (ACME VGA module)
CCP_CLASS_SEL = 1.8V: SMIA Class 1, Strobe and Data. (2MP module)
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Page 3 – 24 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
