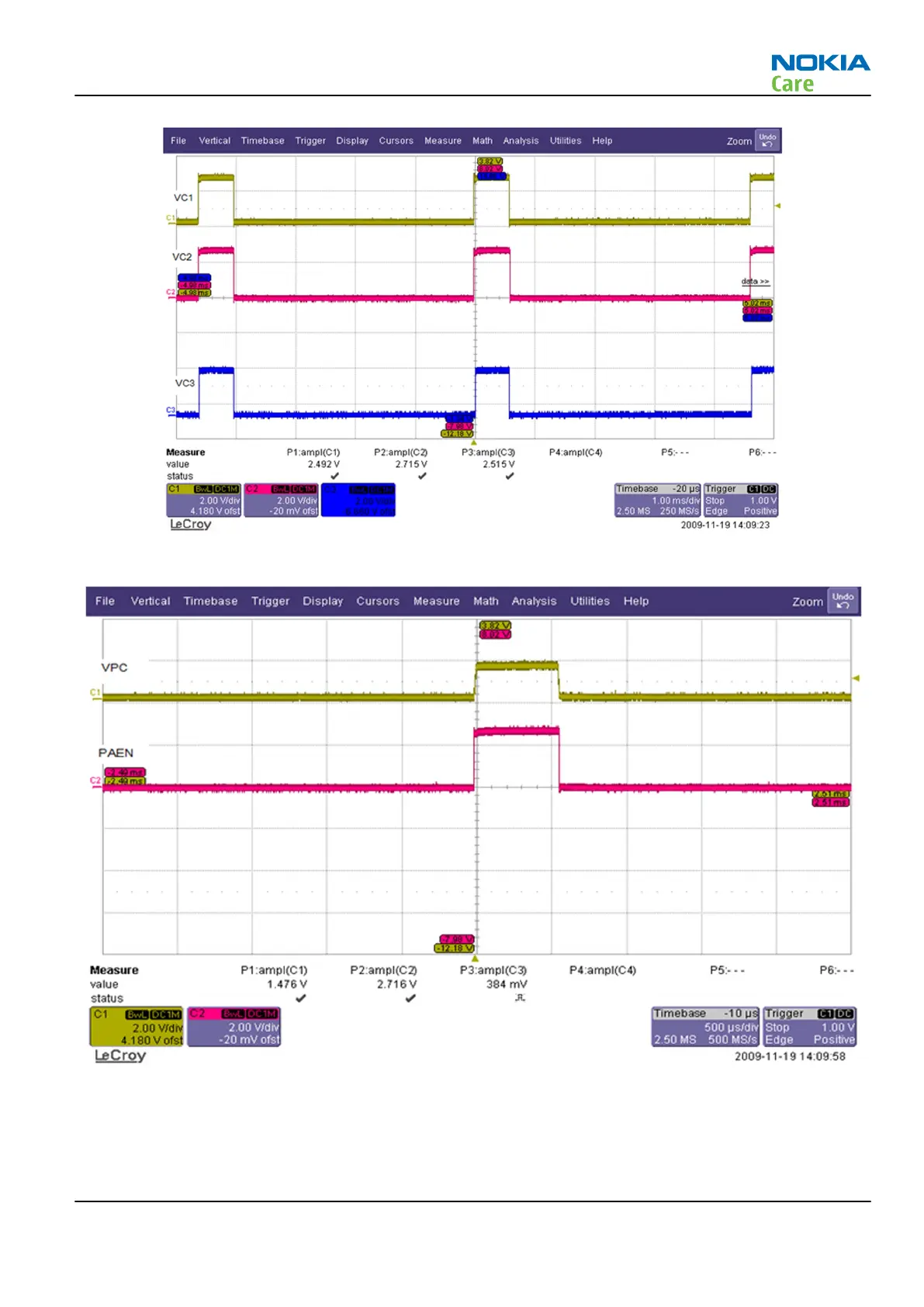

Figure 44 TX HB FEM logic waveform (C1:VC1; C2:VC2; C3:VC3)

Figure 45 TX HB VPC logic waveform-PCL0 (C1: VPC; C2: PAEN)

RM-761; RM-799; RM-800

RF Troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 – 25
