Nokia RM-969 User Manual

Service Manual Level 1 and 2
Nokia 220
RM-969, RM-970, RM-971
Version 1.0
Assembly steps

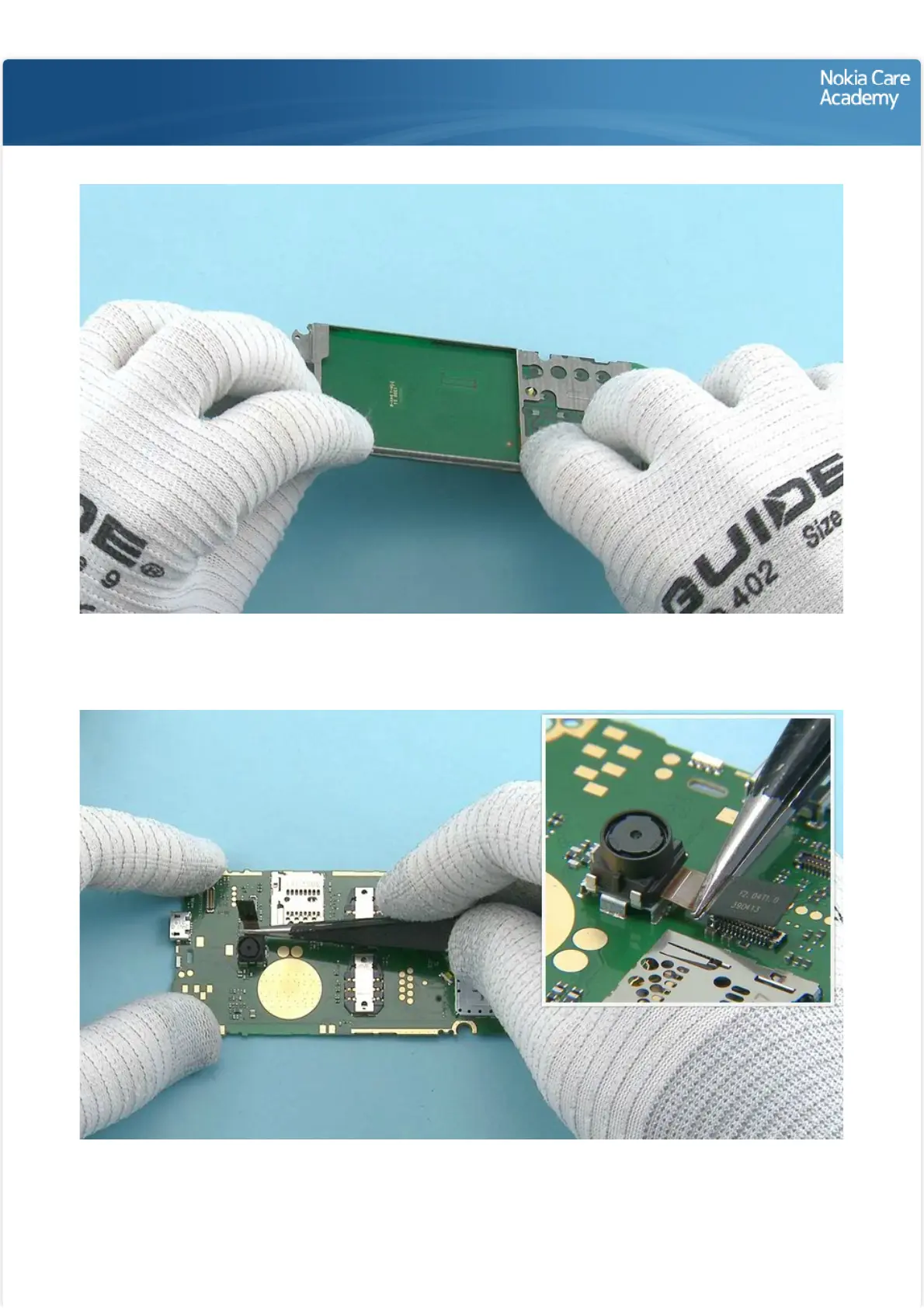

1) Note that before doing any solder repair for ENGINE BOARD you must attach the UI SHIELDING to the
ENGINE BOARD. This prevents damaging the KEY LED.
2) Place the CAMERA to its place as shown and make sure it is aligned correctly.
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia RM-969 Specifications

General

Model	Nokia RM-969
Category	Cell Phone
Device Type	Smartphone
Operating System	Windows Phone 8
RAM	512 MB
Internal Storage	8 GB
Camera	5 MP
SIM Card Size	Micro-SIM
Main Camera	5 MP
Front Camera	No
Battery	Li-Ion 1830 mAh, removable
Talk Time	Up to 13 h 20 min (2G) / Up to 15 h 10 min (3G)
Network	GSM / HSPA
Display	IPS LCD
Standby Time	Up to 672 h (2G) / Up to 672 h (3G)
Weight	134 g
OS	Windows Phone 8
Stand-by	Up to 672 h (2G/3G)
