RM-732 / RM-733
Service Manual Level 1&2
Co nf id e nt ial | Cop yrig ht © 2011 Nokia | A ll right s reserved

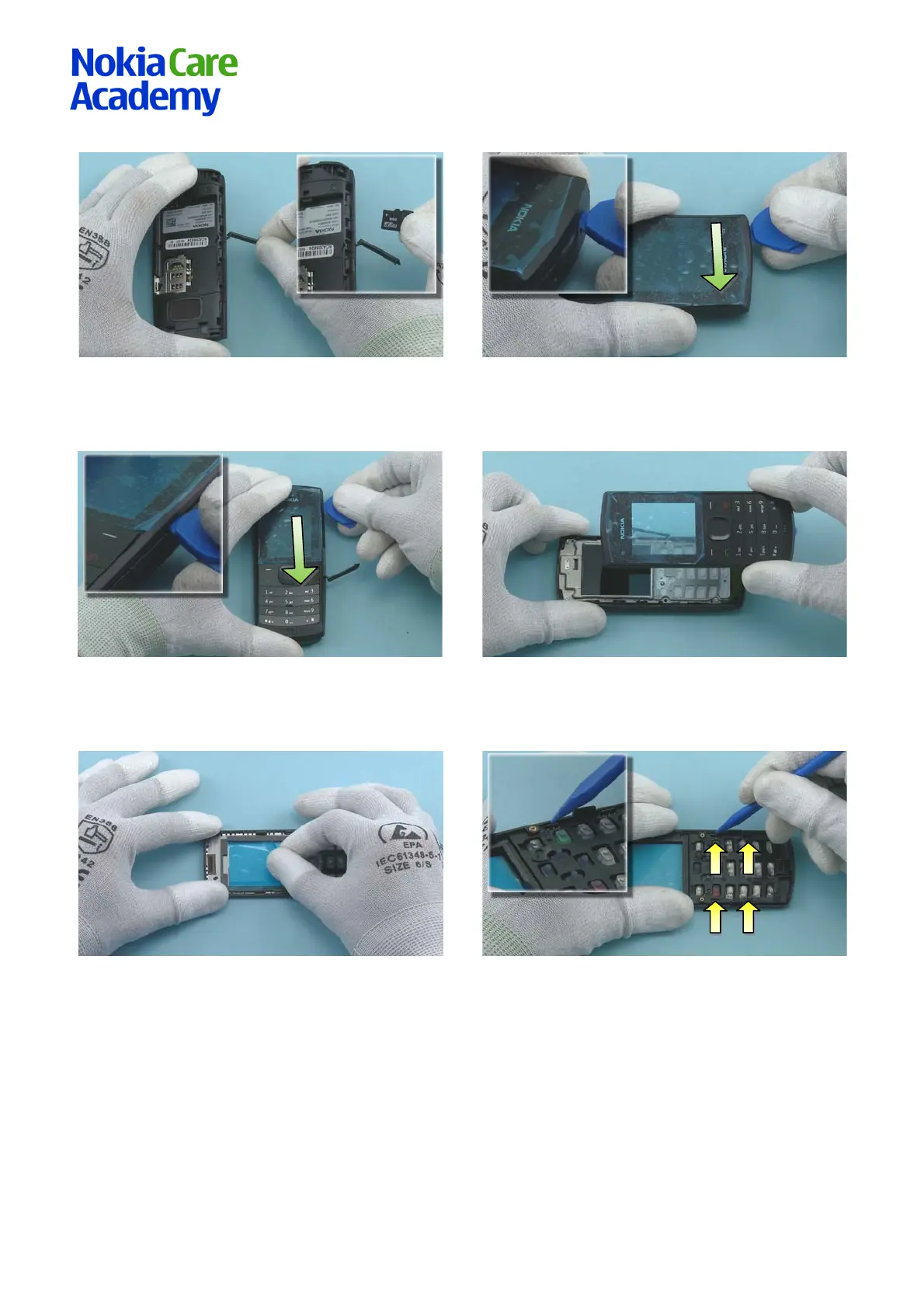

7) Open the MICROSD slot. If there is a card inserted
remove it.
8) Release the A-COVER from the D-COVER by sliding
the SRT-6 to direction shown.
9) Release the sides of the A-COVER by sliding the
SRT-6 to direction shown.
11) Protect the other side of the A-COVER with the
protective f ilm.
12) Release the shown clips with the SS-93.
To Next Page
