Nokia X1-00 - Page 14

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
14
Co nf id e nt ial | Cop yrig ht © 2011 Nokia | A ll right s reserved
V e rs ion 1 .0

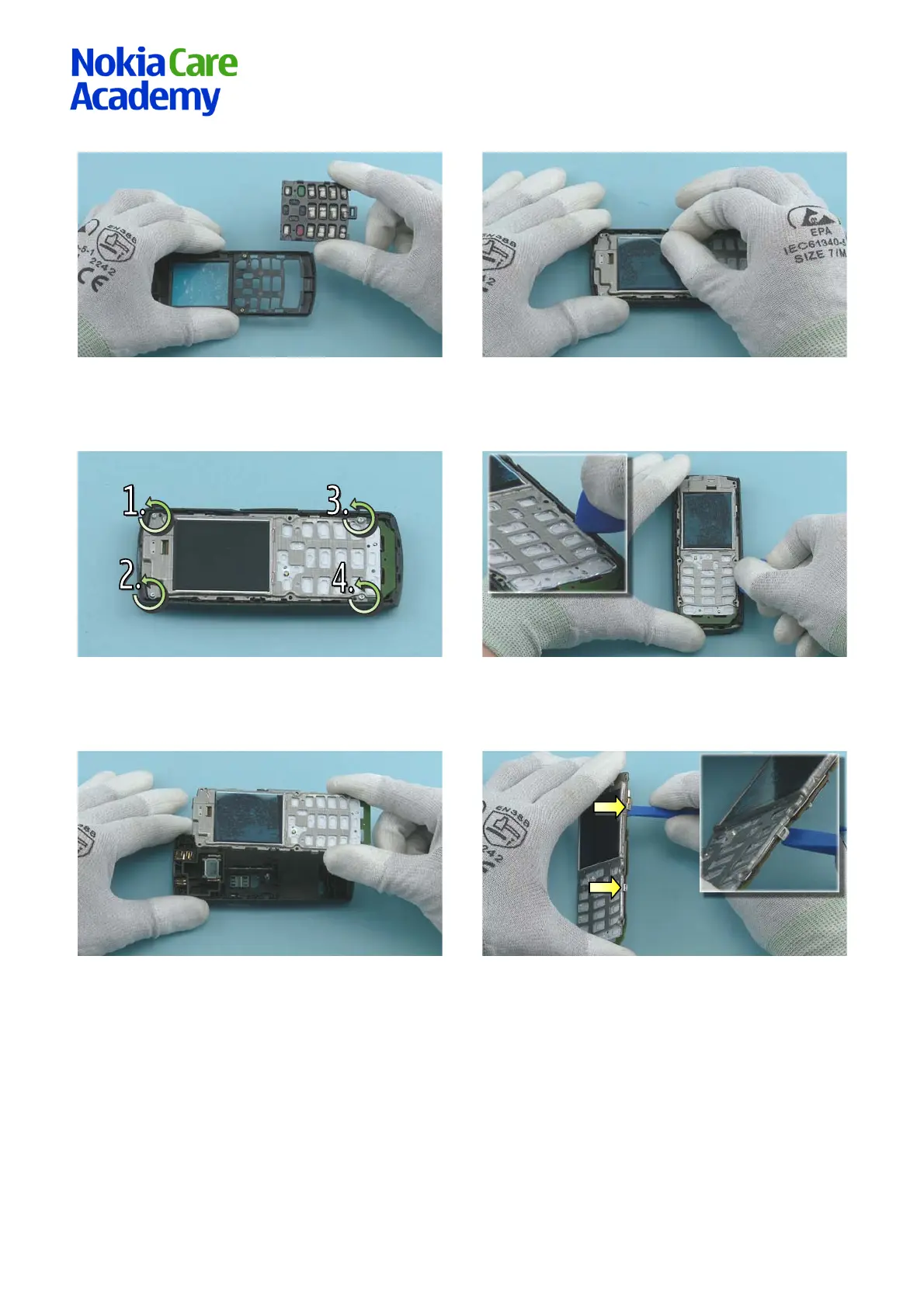

13) Remove the KEYMAT.
14) Protect the DISPL AY with a protec tive fil m.
15) Unscrew the four Torx+ size 4 screws.
16) Use the SRT-6 to release the ENGINE BOARD.
17) Remove the ENGINE BOARD. 18) Release the two clips holding the UI SHIELDING
with the SS-93.
