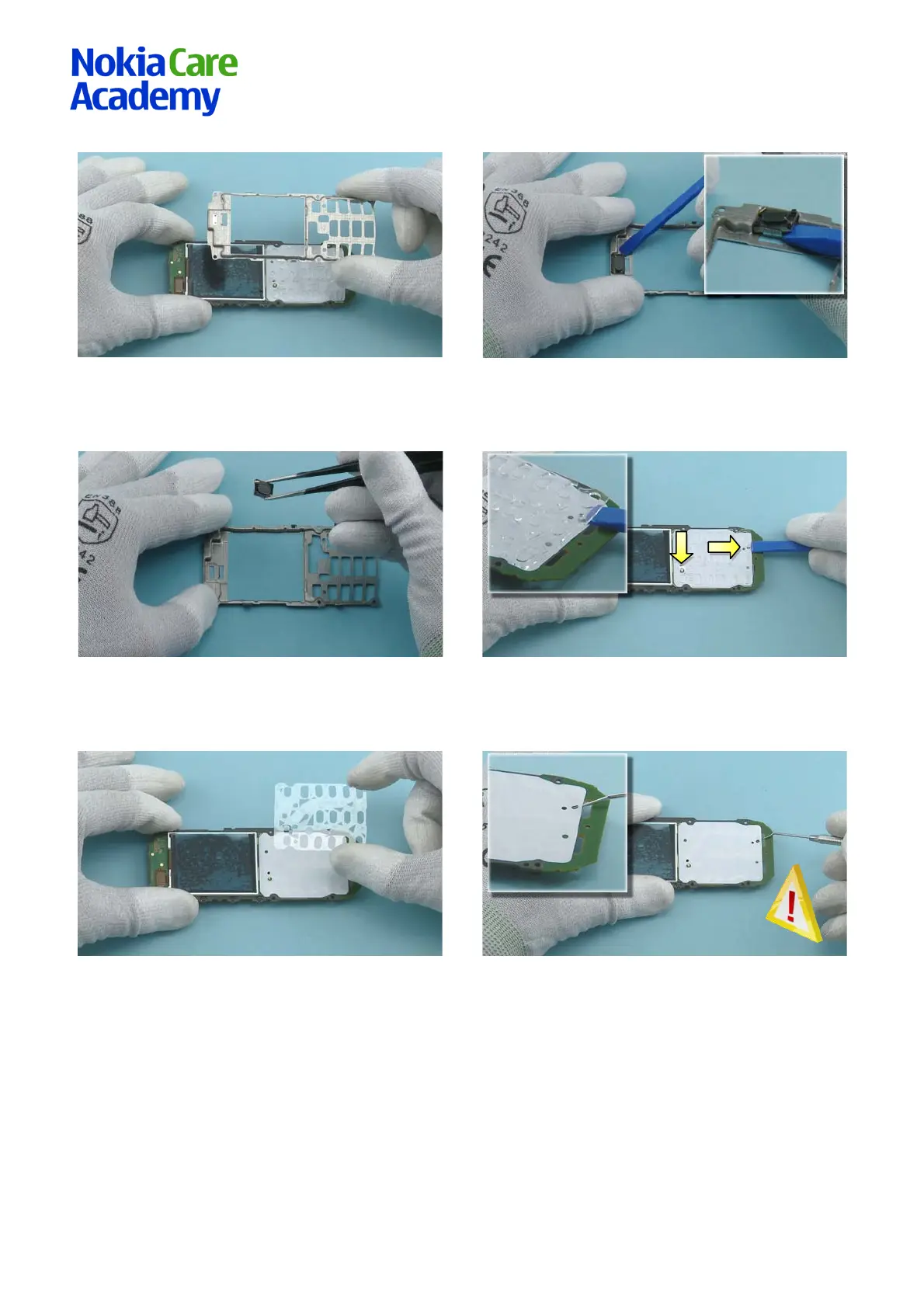

19) Remove the UI SHIELDING.
20) Use the SS-93 to release the EARPIECE from the UI
SHIELDING.
21) Remove the EARPIECE with the tweezers.
22) Release the two guiding pins holding the LIGHT
GUI DE with the SS-93.
23) Remove the LIGHT GUIDE. 24) Use the dental tool release the DOMESHEET. Be
careful not to injure yourself with the sharp end of
the dental tool!
