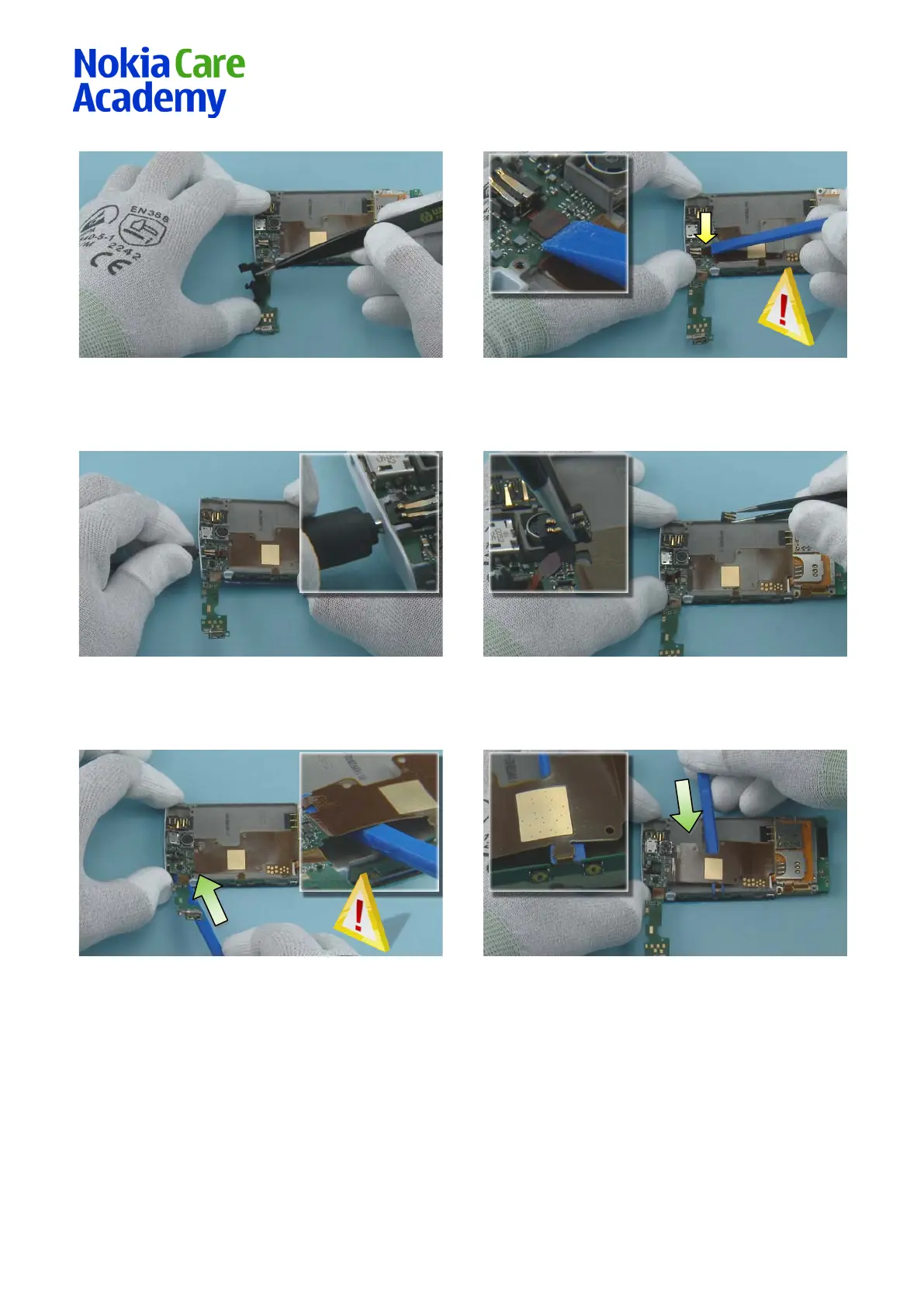

19) Remove the MOUNTING ASSY with the tweezers.
20) Use the SS-93 to release the TOUCH MODULE
connector. Be careful not to damage the connector
or any nearby components.
21) Use the DC plug to release the DC JACK. 22) Remove the DC JACK with the tweezers.
23) Push the SS-93 under the ENGINE BOARD and
move the SS-93 to direction shown to release the
ENGINE BOARD. Be very careful not to damage the
flex!
24) To release the side keys, carefully push the SS-93
to the direction shown.
