Nokia X3-02 - Page 16

Nokia X3-
02
RM-639
Service Manual Level 1&2
16 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

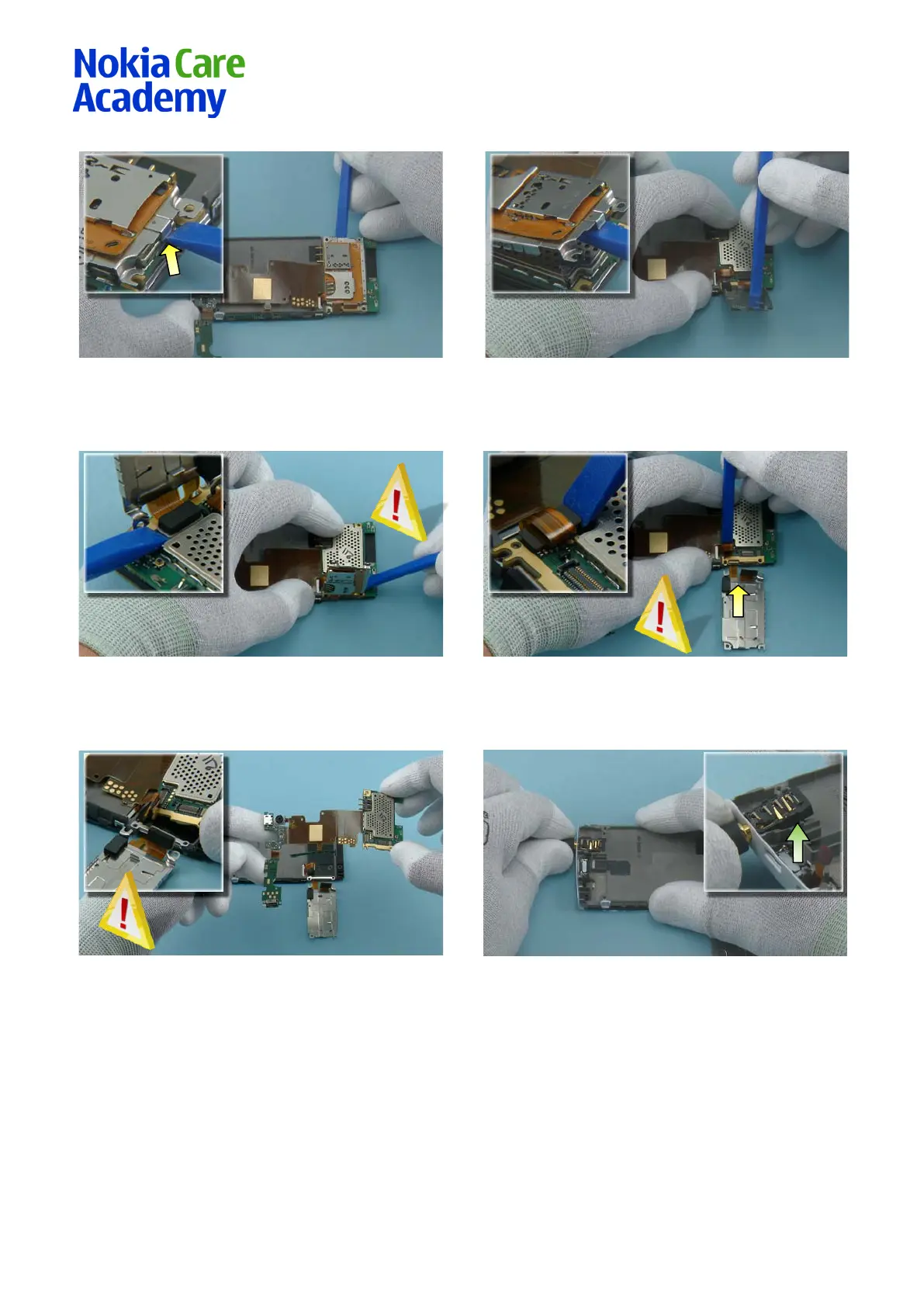

25) Use the SS-93 to release the clip holding the UI-
FLEX ASSY.
26) Turn over the UI-FLEX ASSY with the SS-93.
27) Open the SIM card reader connector with the SS-
93. Be careful not to damage the connector or any
nearby components.
28) Use the SS-93 to release LCD connector. Be careful
not to damage the connector or any nearby
components.
29) Remove the ENGINE BOARD. Be careful not to
damage the LCD connector or any nearby
components.
30) Lever out the AV JACK with an AV plug.
