Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
17 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

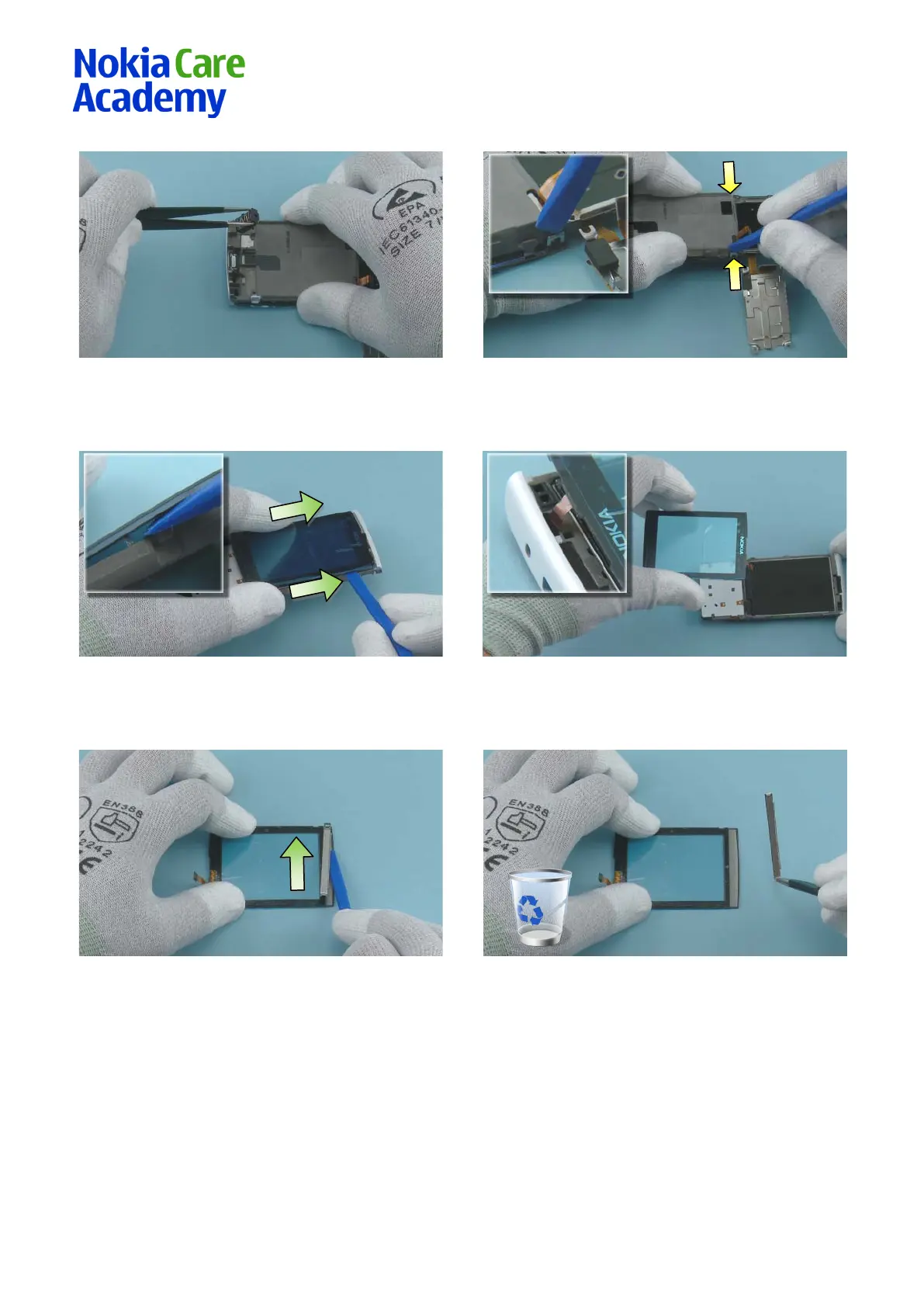

31) Remove the AV JACK with the tweezers.
32) Use the SS-93 to open the two shown A-COVER
BRIDGE ASSY clips.
33) Slide the SS-93 to the directions shown to release
the sides of the TOUCH MODULE.
34) Pull the TOUCH MODULE connector through the
opening and remove the TOUCH MODULE.
35) Detach the A-COVER BRIDGE ASSY by sliding the
SS-93 as shown.
36) Separate the A-COVER BRIDGE ASSY with the
tweezers. Do not use it again. Discard it. The TOUCH
MODULE can not be used again. Discard it.
