Nokia X3-02 Service Manual

Nokia X3-
02
RM-639
Service Manual Level 1&2
19 Confidential | Copyright © 2011 Nokia | All rights reserved Version 3.0

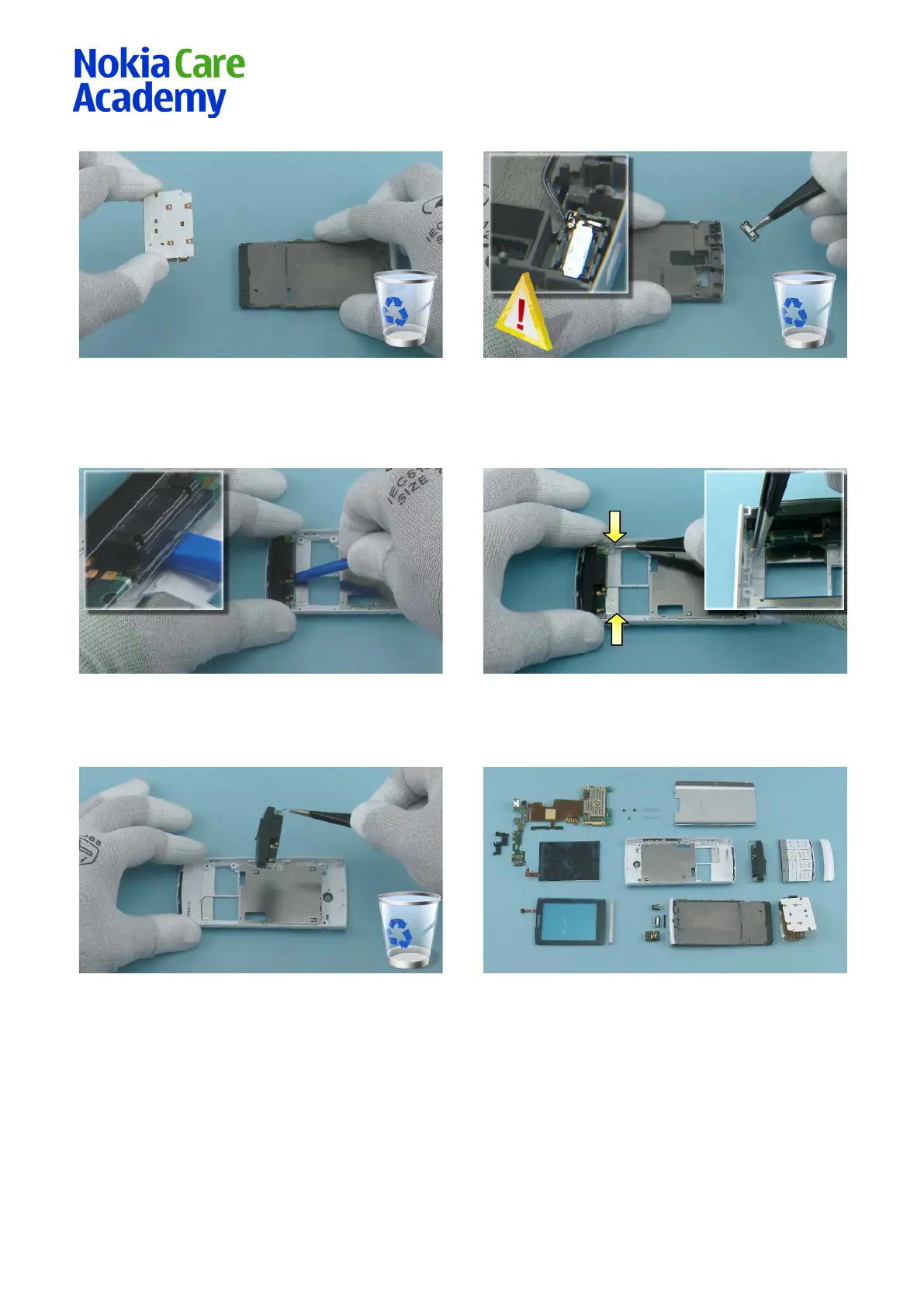

43) Remove the UI-FLEX ASSY. Do not use it again.
Discard it.
44) Use the dental tool to release the EARPIECE and
remove it with the tweezers. Do not use it again.
Remove also the EARPIECE adhesive residues. Be
careful not to injure yourself with the sharp end of
the dental tool!
45) Use the SS-93 to release the ANTENNA MODULE. 46) Pull the ANTENNA MODULE from the shown places
with the tweezers to remove it.
47) Remove the ANTENNA MODULE with the
tweezers. Do not use it again. Discard it.
48) Nokia X3-02 disassembly is now complete.
-END OF DISASSEMBLY-
