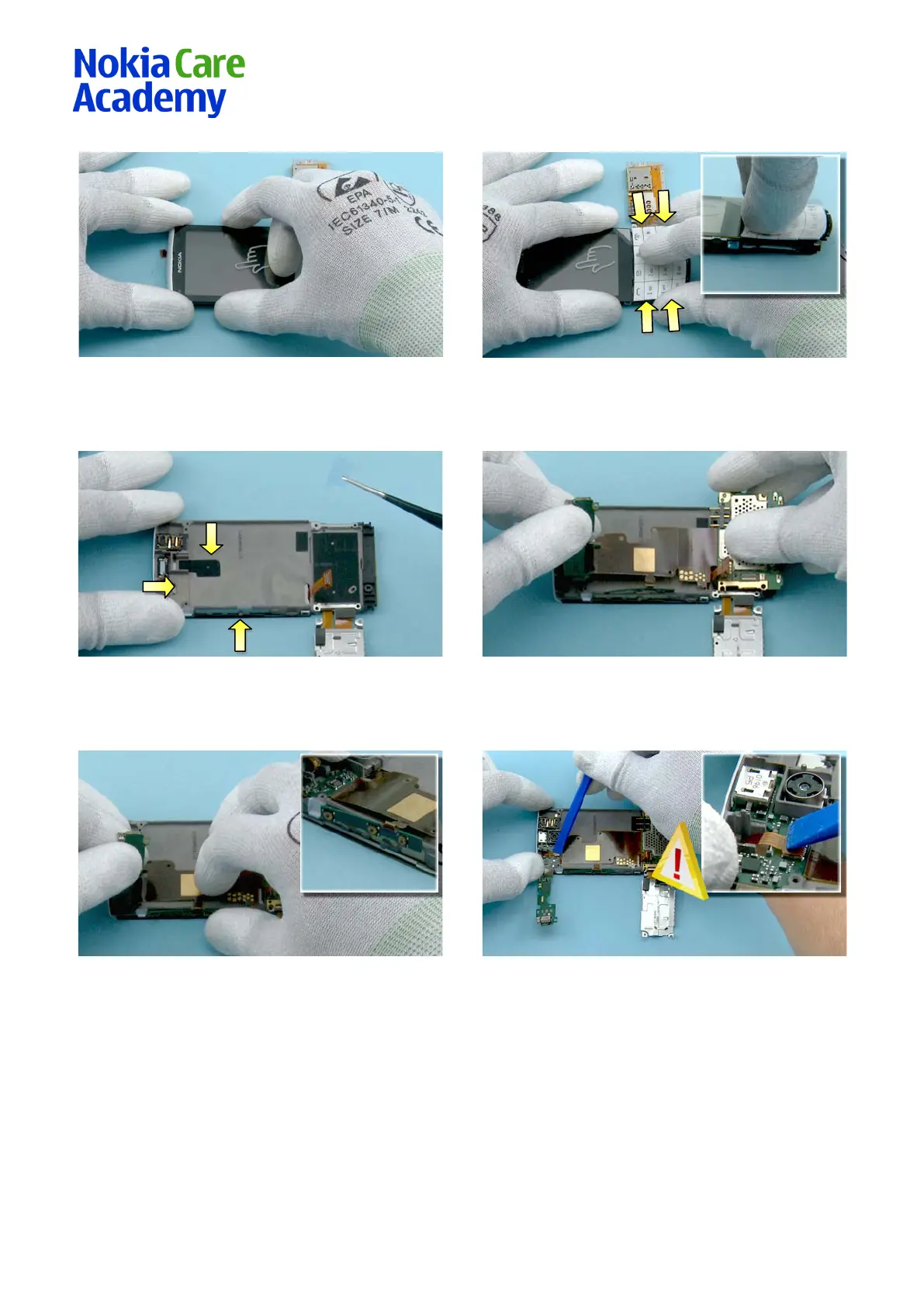

13) Lower down the bottom part of the TOUCH
MODULE. Press gently from all sides of the TOUCH
MODULE to active the adhesive.
14) Place the KEYMAT to its place and press it to lock
the four shown clips.
15) Remove the three adhesive protective films with
the tweezers.
16) Place the ENGINE BOARD carefully to its place and
press it gently to activate the adhesive.
17) Place the side keys to its place and press it gently
to activate the adhesive.
18) Connect the TOUCH MODULE CONNECTOR with the
SS-93. Be careful not to damage the connector.
