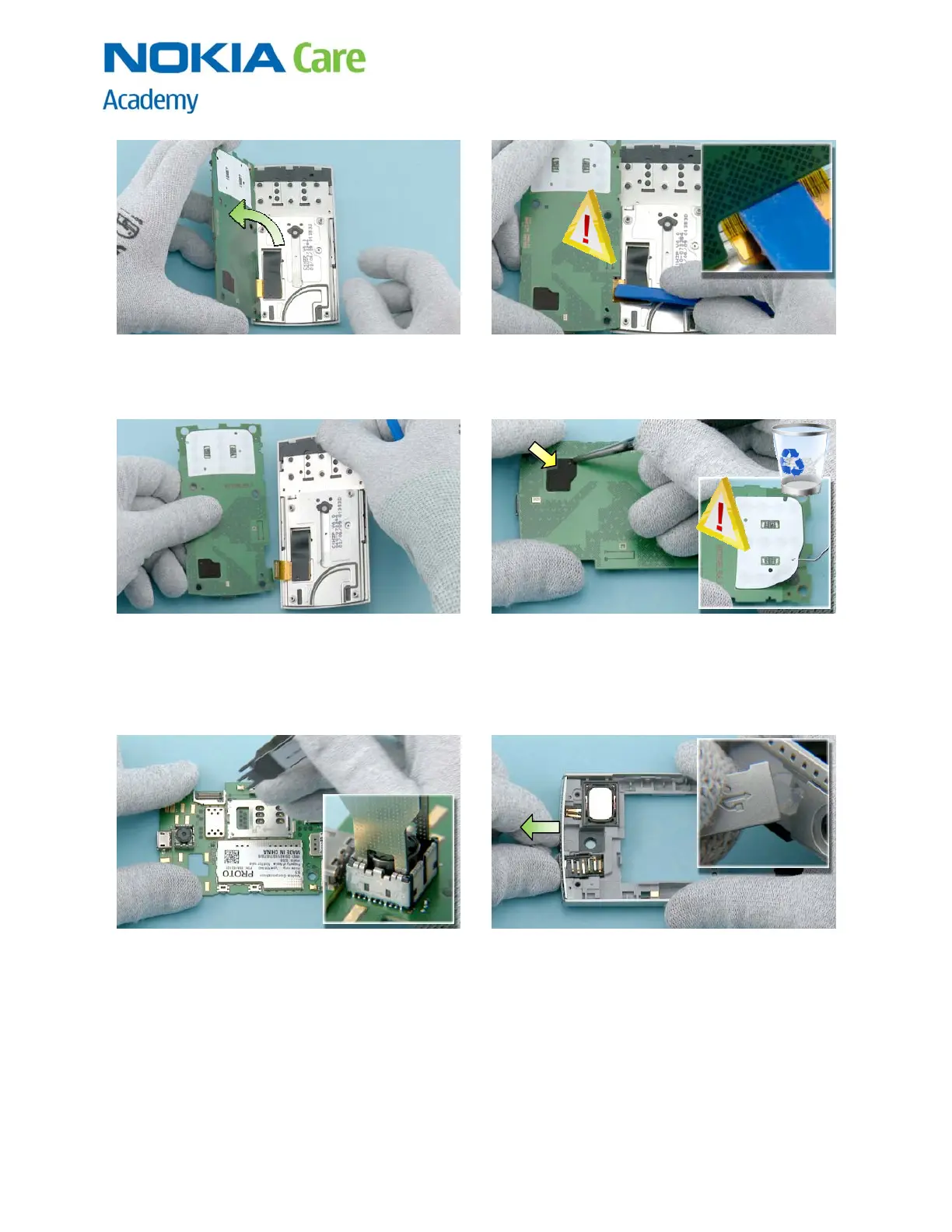

13) Turn over the engine board. 14) Disconnect the UI FLEX connector with the SS-93.
Be careful not to damage the connector or any
nearby components.
15) The engine board and the SLIDE MODULE can be
now separated.
16) Use the tweezers to peel off the SPEAKER MESH.
Detach the corner of the DOMESHEET with the dental
tool and then peel off the DOMESHEET. Be aware of
the sharp point of the dental tool - be careful not to
injure yourself.
Do not use the SPEAKER MESH and DOMESHEET again.
17) Use the camera removal tool SS-88 to detach
the CAMERA.
18) Pull out the USB DOOR.
