• Reposition the right polystyrene cheek pad in its housing.
ONLY FOR FULL-FACE HELMETS
: Insert the chin strap into the polystyrene cheek pad loop.

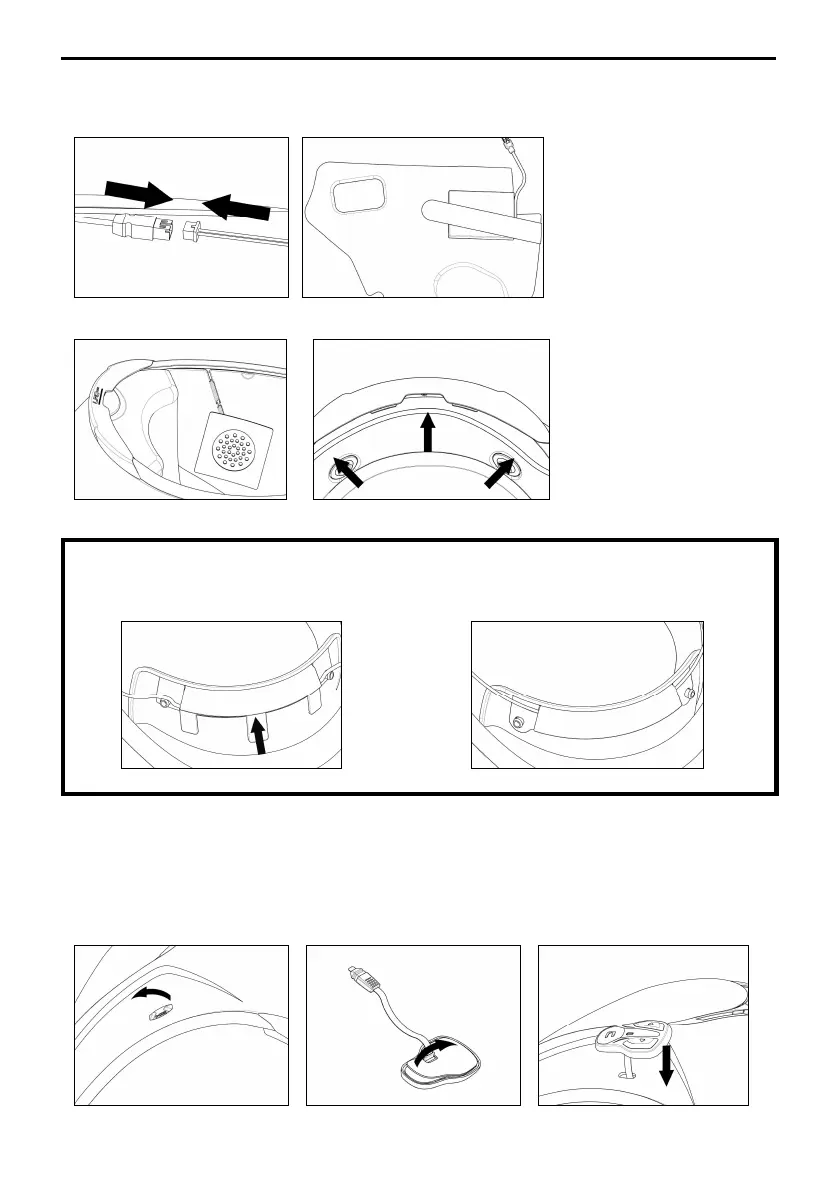

Fig. 27
Fig. 28
Fig. 29
Fig. 30
• Arrange the battery
connector behind the
polystyrene cheek pad.
• Position the wiring in
the rear part of the
helmet (Fig. 30).
ONLY FOR X-702 HELMETS
• Cut along the pre-cut lines of the plastic tab on the back of the comfort padding.
• Position the wiring underneath the plastic tab (Fig. 31).
Fig. 31 Fig. 32
• Remove the small N-Com cap positioned on the left side of the helmet. To make the operation easier, we
recommend pushing the cap from inside the helmet (Fig. 33).
• Thoroughly clean the outside surface of the shell to make sure that the adhesive keypad sticks properly.
Before you apply the keypad, make sure that the shell area is completely clean and grease or dirt free.
• Remove the protective film from the back of the adhesive keypad using the special tab (Fig. 34).
• Pass the keypad flex through the hole in the outer shell (Fig. 35).
Fig. 33 Fig. 34
Fig. 35
