13

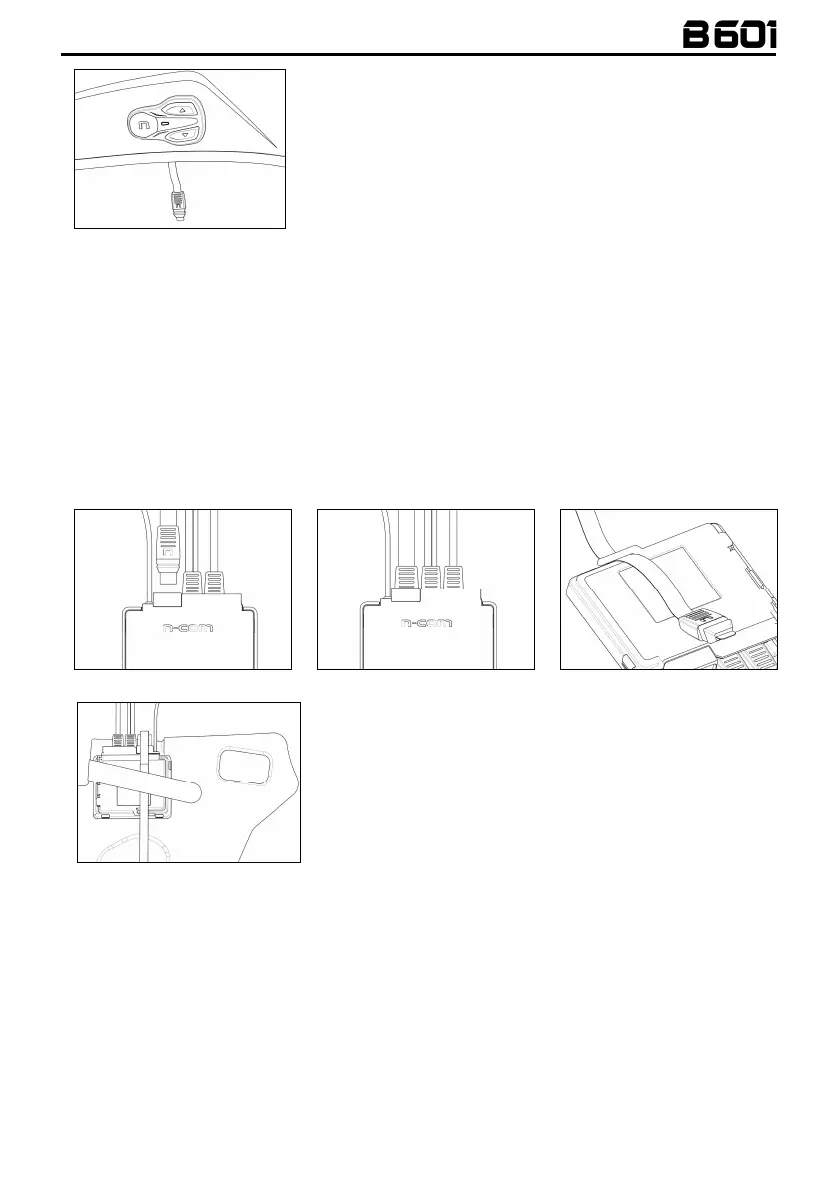

Fig. 36
•
Apply the keypad to the shell and press down on its entire surface to
make sure that it sticks properly (Fig. 36).
N.B.
: Make sure you do not glue the keypad flex underneath the keypad support.
N.B.
: In the event that the keypad is not positioned correctly, peel it off right away with extreme care and
repeat the positioning.
N.B.
: It takes up to 24 hours for the keypad to stick completely. During this time, do not expose the helmet to
atmospheric agents.
• Line up the keypad flex connector to the e-box making sure that the letter “
n
” is pointing as shown in Fig.
37.
• Gently position the connector in its seat until it is all the way in (Fig. 38).
• Switch on the N-Com system (press “
ON
” for about 2 seconds) to verity its proper operation.
N.B.
If the system does not work, remove the flex and repeat the previous operation, making sure that the
“
n
” is positioned as in Fig. 37.
Fig. 37
Fig. 38
Fig. 39
Fig. 40
•
Secure the keypad flex in the special stop (Fig. 39) and position
the e-box inside its housing in the cheek pad (Fig. 40).
•
Temporarily reposition the polystyrene cheek pad inside the
helmet and continue with the subsequent paragraph.
4.3
Microphone positioning
FLIP UP OR JET HELMETS
• Insert the microphone securing clip (Fig. 41).
• Position the microphone on the left side of the helmet, screwing in the screw in the small shell frame (Fig.
42). Make sure that the side of the microphone with the caption “
n
” is facing the inside of the helmet (Fig.
43).
