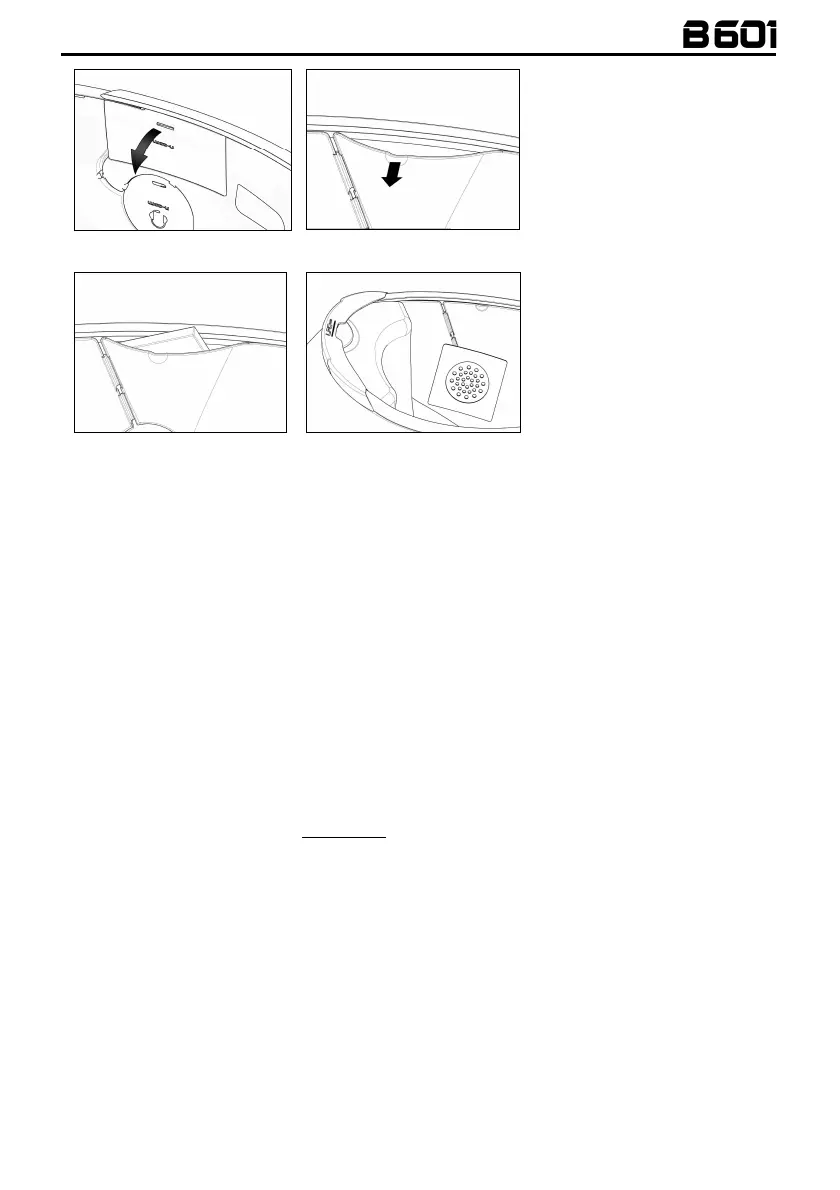

Fig. 24 A – X-1005 HELMET
Fig. 24 B – X-903 HELMET
•
On the right side of the helmet,
bend the cheek pad lining and
insert the battery in its housing
(Fig. 24 A/B - 25).
ONLY FOR X-1005 HELMETS
:
Remove the filling material. Keep
it in case you want to use the
helmet without the N-
Com
system installed in the future.
Fig. 25 Fig. 26
•
Position the right loudspeaker in
its housing, inserting the cable in
the special groove (Fig. 26). If
necessary, secure the earphone
using the adhesive supplied as
standard equipment.
• Position the wiring and the connectors behind the cheek pad lining, lifting it up with the help of a flat head
tool.
3.4 Repositioning the padding
Reposition the internal comfort padding by following the specific instructions provided in the helmet user
manual.
Warning:
Always verify the proper length of your chinstrap and adjust it if necessary, referring to the specific
helmet instructions.
4 INSTALLATION ON THE X-LITE HELMETS
This procedure must be followed for the installation of N-Com systems on X-lite helmets other than model X-
1005 and X-903.
Important
: Prior to installing the N-Com system, it is recommended to write down the identification code
affixed to the product (see chapter 18.4).
The installation video can be seen at www.n-com.it / Support section.
4.1 Preliminary operations
• Remove the internal comfort padding by following the specific instructions provided in the helmet user
manual.
• If present, remove from the polystyrene cheek pads the foam filling material that cover the housings of the
N-Com earphones. Keep this filling materials should you decide in the future to use the helmet without the
N-Com system installed.
4.2 Installing the system in the helmet
• Connect the battery to the wiring system (Fig. 27).
• Position the battery in the right polystyrene cheek pad housing and secure it using the Velcro ribbon (Fig.
28).
• Position the right-hand side speaker in the specific cheek pad housing and secure it using the specific
adhesive (Fig. 29).
