10

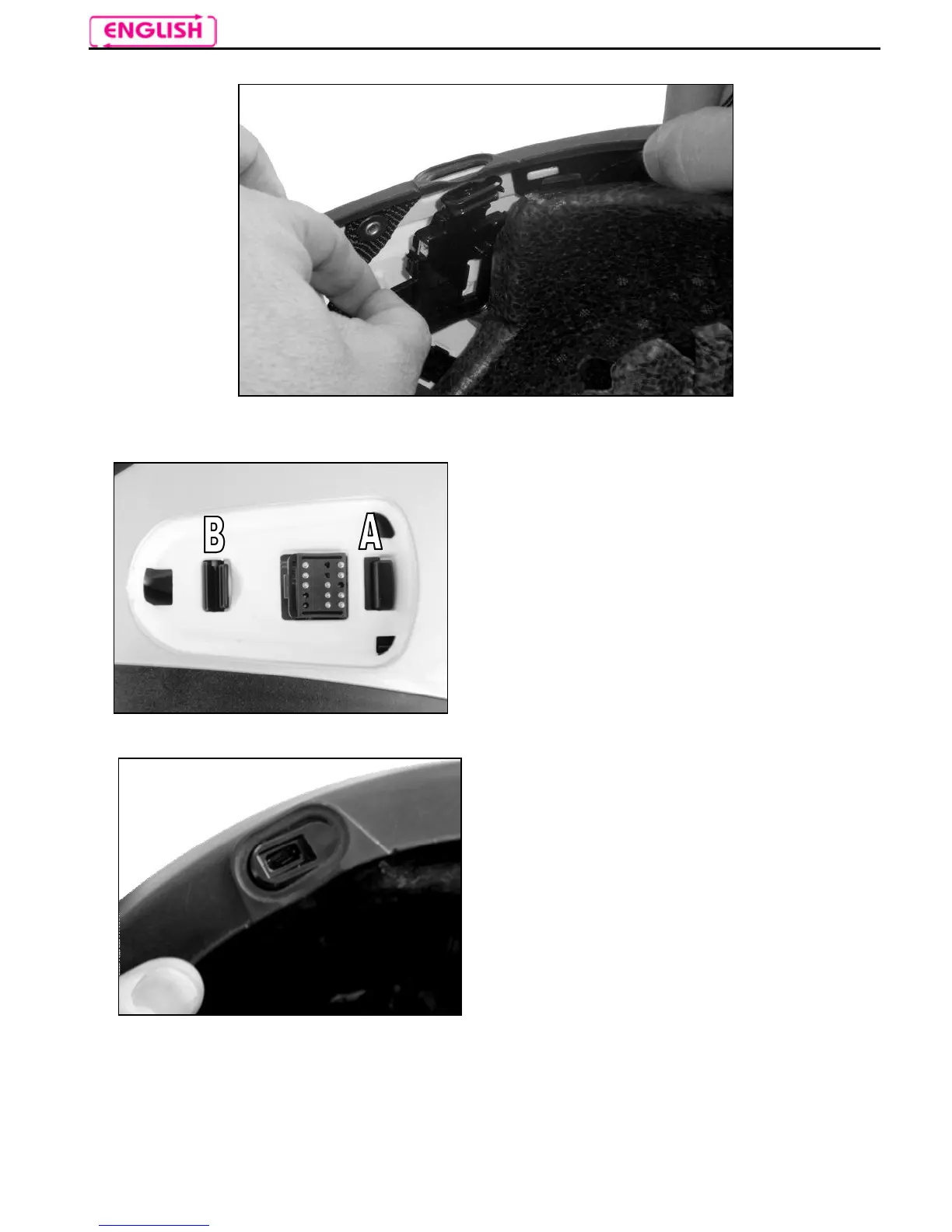

3.2. Installing the system on the helmet
Fig. 20
Position the system inside the helmet as shown in figure 20, next to the N-Com housing in the shell.
Fig. 21
Looking at the helmet from the outside, slide
the rear positioning tab into groove A as
shown in the figure;
Press in the area marked PUSH from inside
the helmet until the fastening clasp B clicks
(Fig. 21).
Fig. 22
Pull out the connectors area from the helmet
gasket: the gasket will have to be slightly
deformed to facilitate the insertion.
