Nomadic NC-X2 - Control Panel Wiring (12 V;24 V Models)

Nomadic Cooling Co 15 NC-X
2
Instalation Manual Ver. 240130

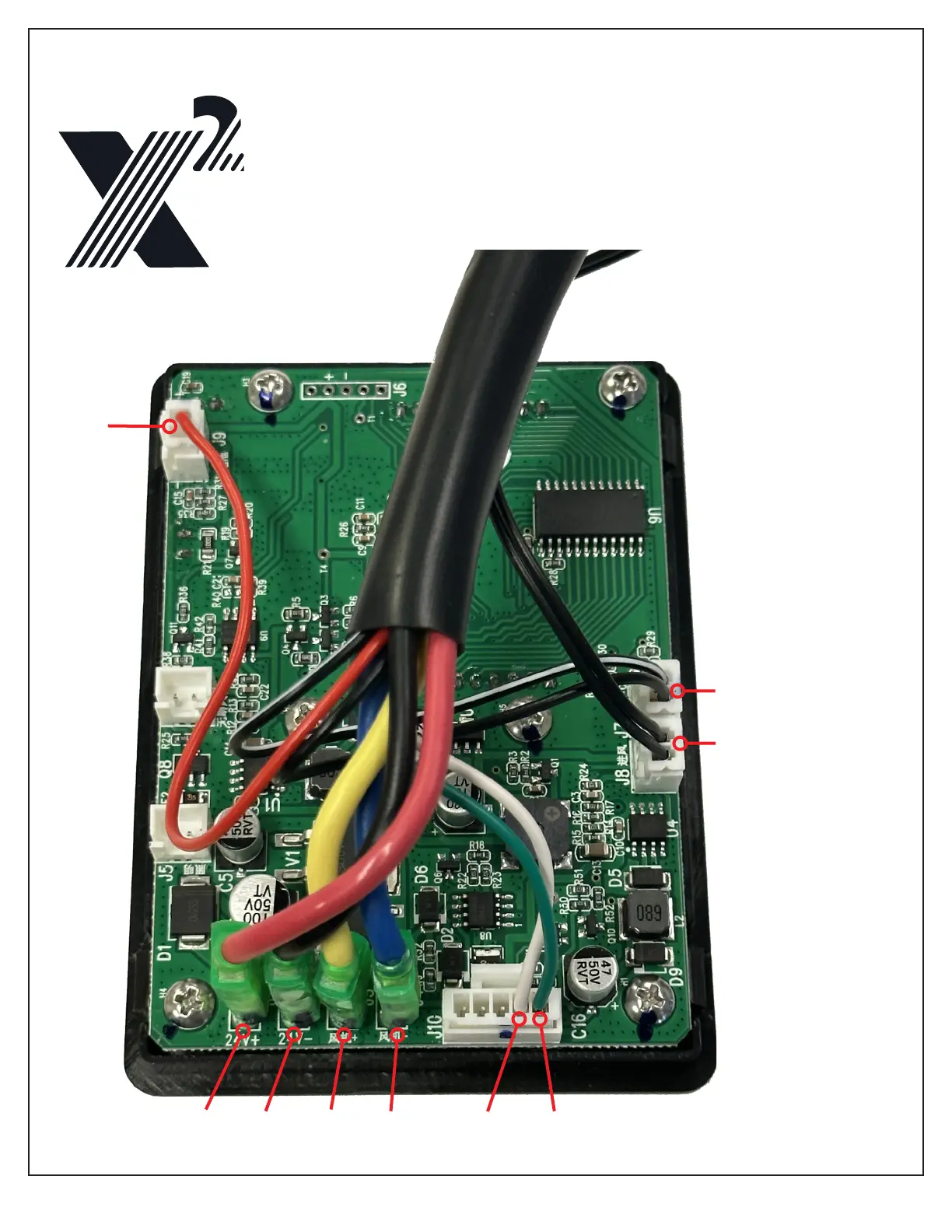

Shown below is a properly wired LED Control Panel for X
2
(12V and 24V) models.
Red
Red
White
Back
Green
Back and
Back wires to
Thermistor
Sensor (Air In)
Back and
Back/White Striped
wires to Thermistor
Connector (Air Out)
24V | 12V
Yellow Blue
