Nomadic NC-X2 - Installation Steps; Rooftop Opening Preparation; Cutting and Smoothing Edges

Nomadic Cooling Co 7 NC-X
2
Instalation Manual Ver. 240130

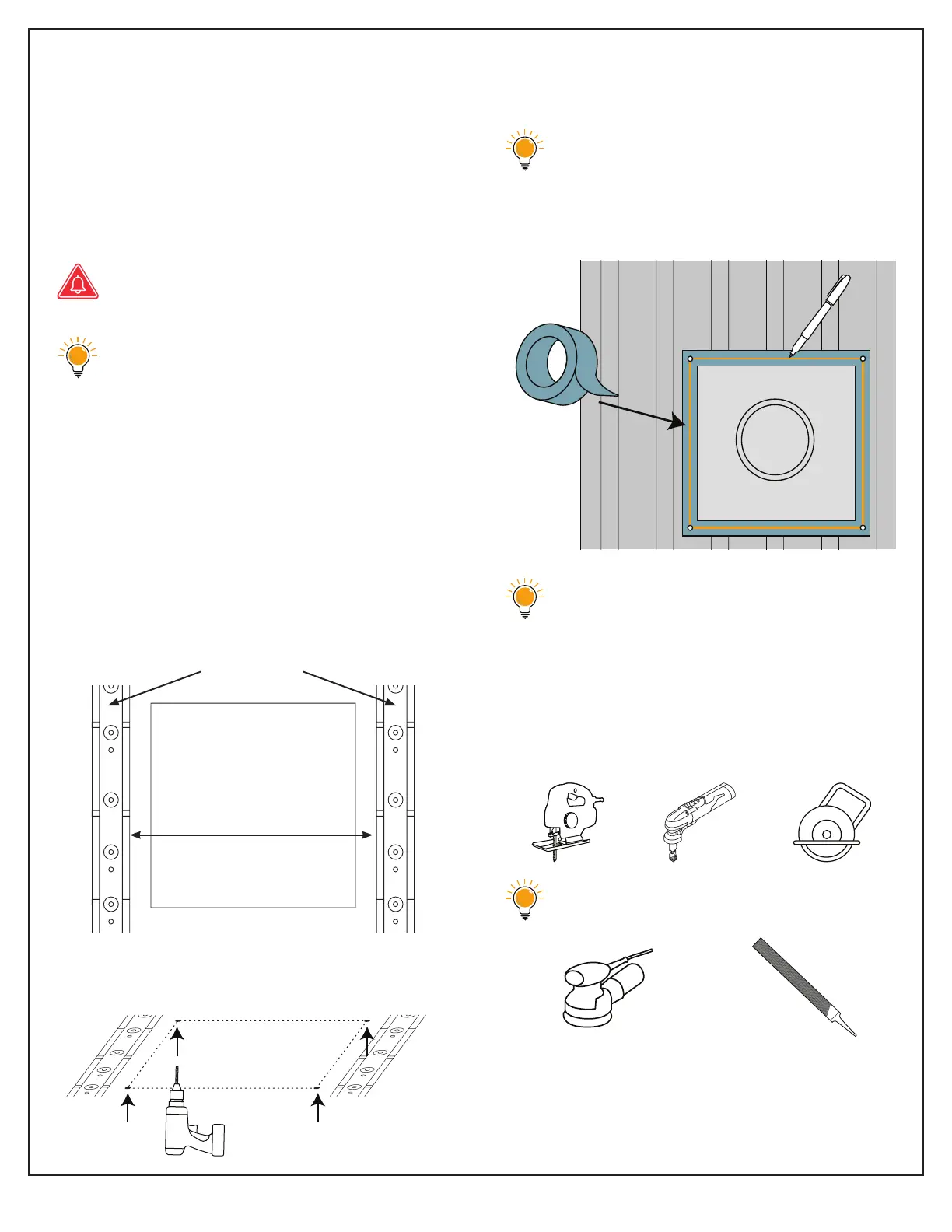

INSTALLATION STEPS
1. The NC-X2 is designed to fit an industry
standard 14"x14" opening. If you need to
cut a rooftop opening, mark the interi-
or ceiling using the cardboard tempate
provided in the host box.
Never cover AC top fan. Do not cut
into structural beams.
When determining AC unit location,
be sure to allow for the 22.5" x 28"
shroud when positioned on the roof.
Make sure there are no electrical or
other encumbrances in the way.
2. Make sure the panned opening is
centered from all four sides. This gives
the best chance for easy instalation.
Center the opening between the ribs of the
interior ceiling.
Using the 14"x14" tempate provided, mark
the four corners with a permanent marker.
3. Drill each corner of your markings
through the interior roof using a 1/8” bit.
On the exterior rooftop, use painter’s
tape and a permanent marker to draw
your 14"x14" cutlines from hole to
hole. Make multiple passes with the
permanent marker.
If you make a mistake repace the
tape and try again. Measure repeat-
edly to make sure your lines create a
perfect 14"x14" square.
4. Cut on your lines on the rooftop using a
jig saw, nibbler or cutting wheel.
Use a sander or file to smooth out the
rough edges after cutting.
14”
14”
14”14”
Interior Ceiling
Ceiling Ribs
14"x14" opening
centered between ribs
Vehicle Front
Interior Ceiling
Front of Vehicl
e
