2 Parts List
Item Part Number Name Quantity
B06 105728 RAM-233 RAIL MOUNT ADAPTER KIT FOR RAM-202 BASE 1
C10 44658-52 CABLE UC4 BC POWER C10 HARDI 1
E01 4461BC+HD UC4 PLUS BOOM CONTROL PANEL HARDI 1
M01 4476BC+MAN7 OPERATOR MANUAL UC4+ SPRAY HEIGHT CONTROL (FIXED BOOM) 1
M03 UC4-BC-HD5-INSTE MANUAL INSTALLATION END-USER HARDI 1
3 Control Panel Mounting
Install the UC4+ Control Panel (E01) in the cab of the sprayer or tractor with the supplied
mounting bracket. The location must facilitate connecting the power cable (C10) to the bottom
of the UC4+ Control Panel.
Using Item B06 together with the adjustable RAM mount on the control panel (E01), mount
panel to the HARDI controller bracket, as shown in Figure 1.

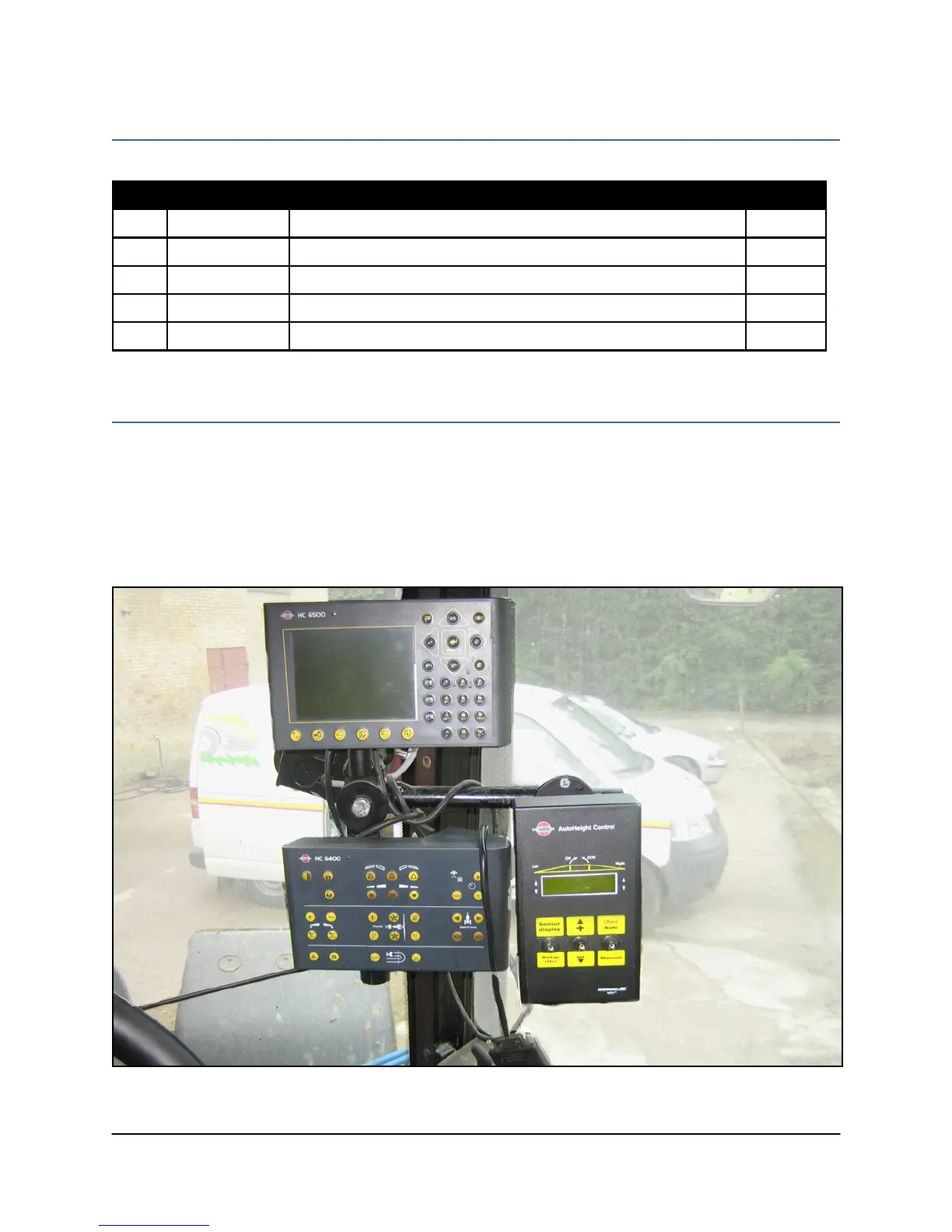

Figure 1: UC4+ Panel Mounting
