4 Cable Installation

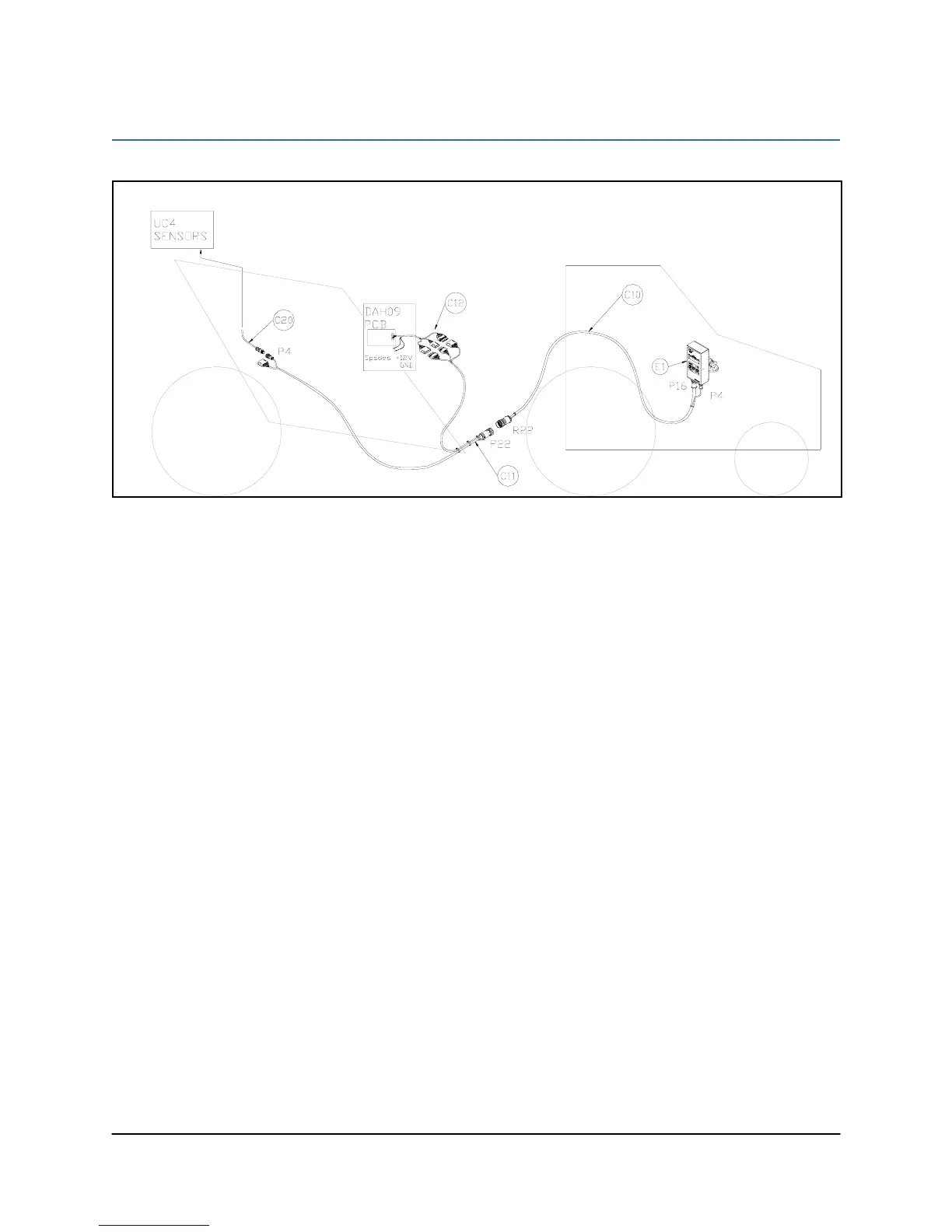

Figure 2: Cable Routing Overview
1. Connect C10 to the UC4+ Control Panel in the sprayer cab. Ensure that both plugs (P16A
and P4) are connected to the panel.
2. Route the receptacle end (R16) of C10 to the exterior of the cab and connect to C11 at the
hitch. Ensure cable is routed in a safe manner to avoid damage.
3. All other cables and connections shown are factory installed – they are illustrated in Figure 2
for reference only.
