NORAUTO NS-318 DBT - Electronic Connection Guide; Connector Pin Assignments

EN
121
Note:
- Watching the video without the parking brake being set is
locked, showing a screen message.
- Video blocking applies to the main screen only, rear screen
RCA output is not locked.
Warning
It is illegal to view video while driving
or operating a motor vehicle, set
parking brake to view video

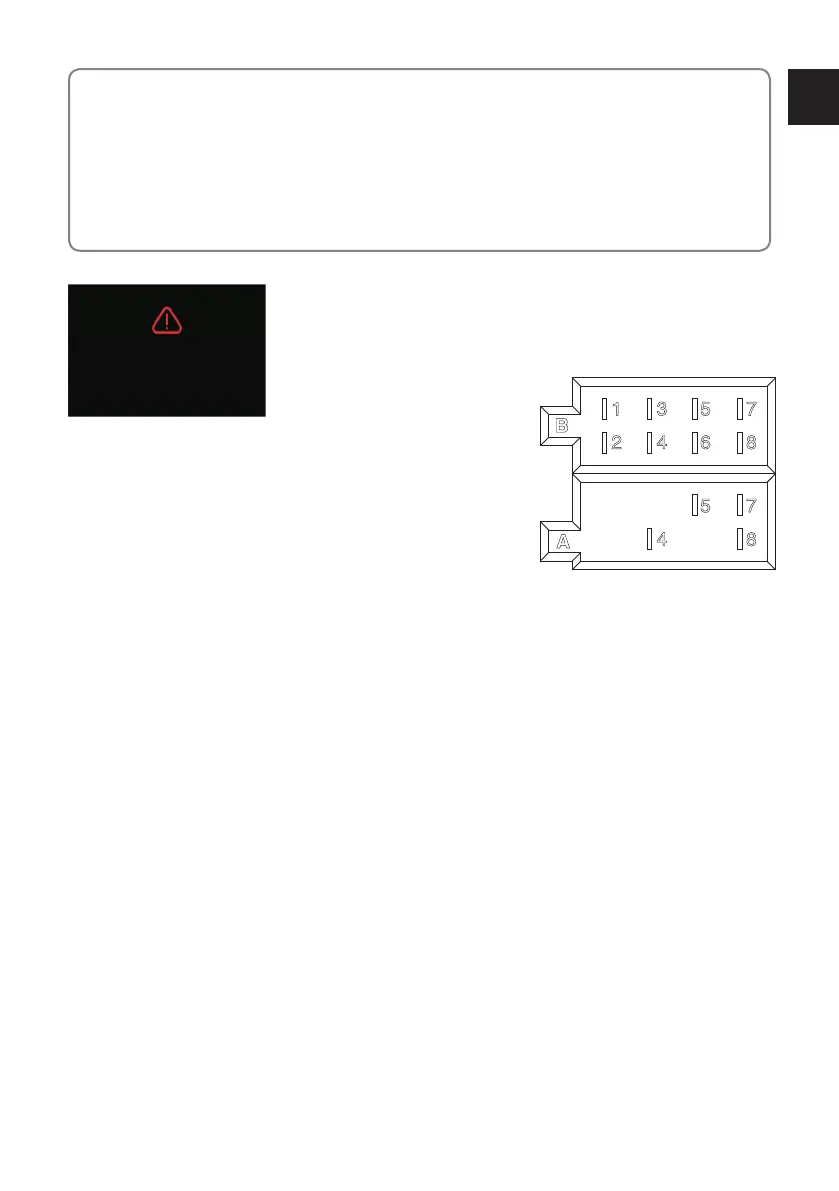

CONNECTOR A
4. Battery (+)
5. VEHICLE ANTENNA OUTPUT
7. ACC+
8. GROUND
Note: (connector A no.7) must be connected by means of a key to
the vehicle's ignition so that the vehicle's battery is not discharged
in the event that the vehicle is not used for an extended period of
time.
CONNECTOR B
1. RIGHT REAR SPEAKER (+)
2. RIGHT REAR SPEAKER (-)
3. RIGHT FRONT SPEAKER (+)
4. RIGHT FRONT SPEAKER (-)
5. LEFT FRONT SPEAKER (+)
6. LEFT FRONT SPEAKER (-)
7. LEFT REAR SPEAKER (+)
8. LEFT REAR SPEAKER (-)
B
1 3 5 7
2 4 6 8
5 7
4 8
A
