188
CONTROL LEAD
Parking brake:
Connect this lead to the vehicle's hand brake
system
Rear-view camera:
Connect to the reverse indicator light� Voltage
should be supplied to this lead when reverse is put into gear�
ATTENTION
To prevent accidents, it is forbidden to watch video while
driving� This unit is ready for this feature the installation is
made correctly� To watch video, park in a safe place and set
the parking brake�
Note:
- Watching the video without the parking brake being set is
locked, showing a screen message�
- Video blocking applies to the main screen only, rear screen
RCA output is not locked�
Warning
It is illegal to view video while driving
or operating a motor vehicle, set
parking brake to view video

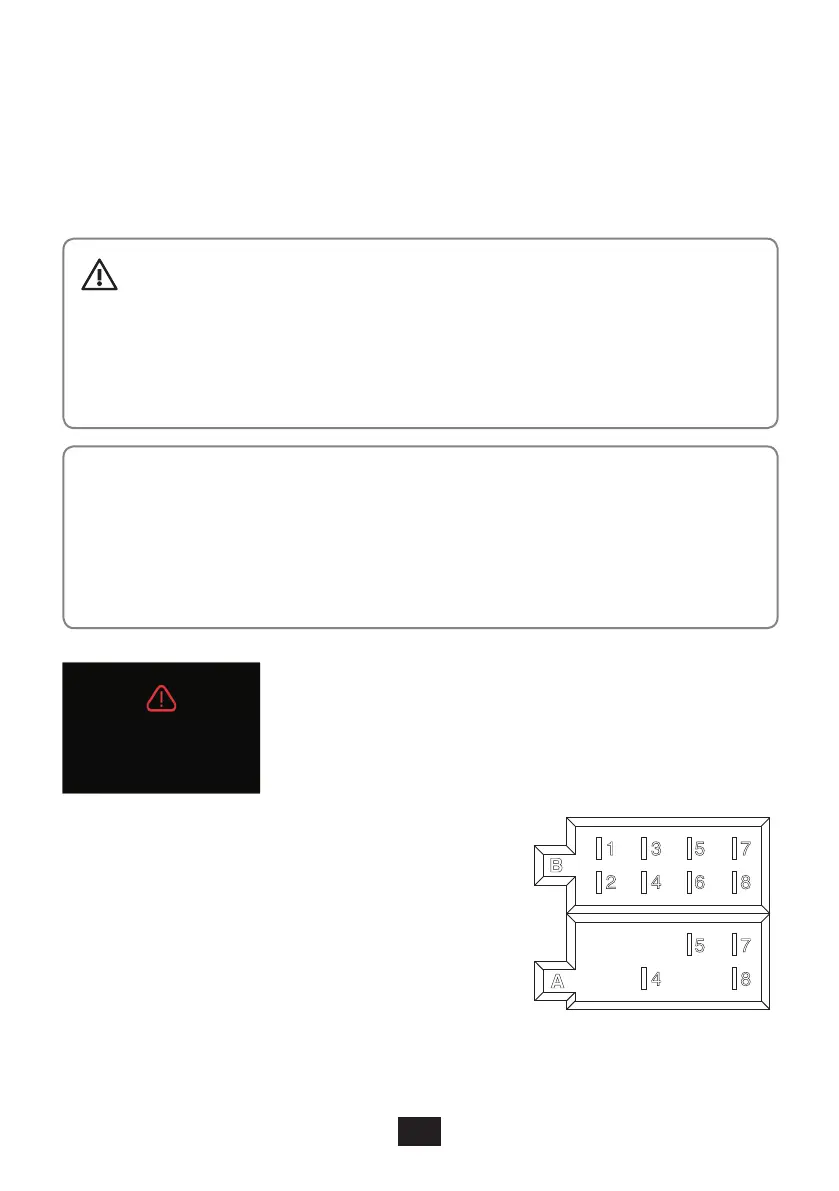

CONNECTOR A
4� MEMORY +12 V
5� VEHICLE ANTENNA OUTPUT
7� +12 V (TO IGNITION)
8� GROUNDING
B
1 3 5 7
2 4 6 8
5 7
4 8
A
