Installation Manual 11

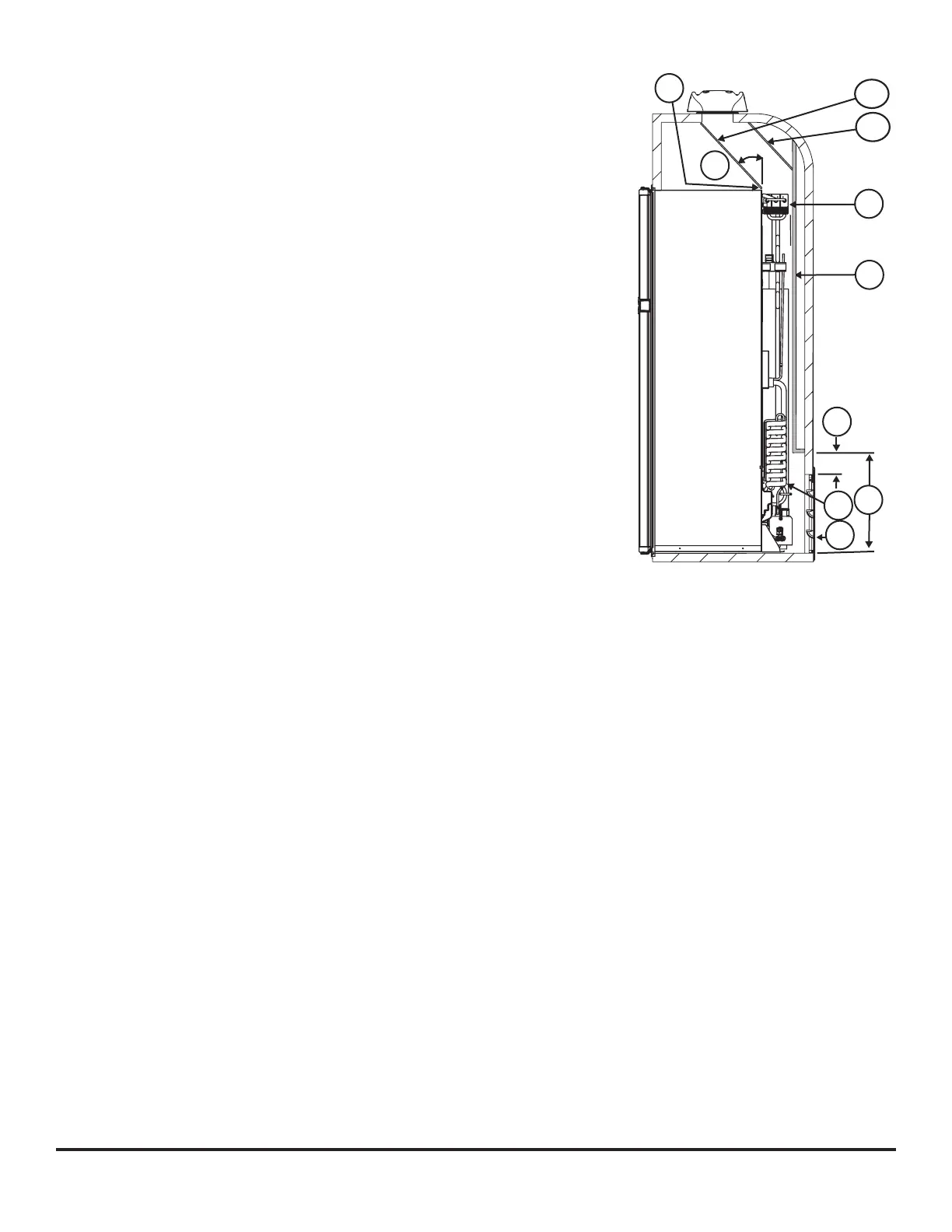

If the enclosure depth is 26 inches or more (See Art01785):
- Install an angled top bafe [172] between the top rear edge of the refrigerator and the
inside edge of the upper exhaust vent opening.
- Make sure that the angled top bafe is less than 1/4 inch from the top of the
refrigerator.
- Make sure that the angled top bafe is no more than 45° from vertical [20].
- Install an inside corner bafe [173] between the outside edge of the upper exhaust
vent opening and either the side wall of the vehicle or the solid box bafe (depending
on the vehicle design).
- Install a wood or an aluminum or galvanized sheet solid box bafe [21] in the rear of
the enclosure.
- Make sure that the bottom of the solid box bafe is 18 inches to 18 1/2 inches
above the bottom of the enclosure [17] (4 1/4 inches to 4 3/4 inches above the top
of the lower intake vent opening) [18] .
- Make sure that the back of the solid box bafe is perpendicular to the bottom of
the enclosure.
- Make sure that the back of the solid box bafe is either against the top of the
enclosure or against the inside corner bafe [173] (depending on the vehicle
design).
- Make sure that the solid box bafe is one inch or less from the coils [10] and
condenser [11] of the refrigerator.
- Make sure that the solid box bafe is the full width of the inside of the
enclosure.
Art01785
14
20
172
21
18
11
9
17
10
173
9
