Installation Manual 9
If the enclosure depth is 25 inches or more and less than 26 inches (See Art01781):
- Install a top bafe [13].
- Make sure that the top bafe is less than 1/4 inch [15] from the top of the
refrigerator.
- Install a condenser bafe [16] at the lowest edge of the condenser of the refrigerator.
- Make sure that the condenser bafe is 1 inch or less [19] from the condenser.
- Install an absorber bafe [171] 18 inches to 18 1/2 inches above the bottom of the
enclosure [17] (4 1/4 inches to 4 3/4 inches above the top of the lower intake vent
opening) [18] .
- Make sure that the absorber bafe is 1 inch or less [19] from the absorber.
If the enclosure depth is 26 inches or more (See Art01782):
- Install a top bafe [13].
- Make sure that the top bafe is less than 1/4 inch [15] from the top of the
refrigerator.
- Install a wood or an aluminum or galvanized sheet solid box bafe [21] in the rear of
the enclosure.
- Make sure that the bottom of the solid box bafe is 18 inches to 18 1/2 inches
above the bottom of the enclosure [17] (4 1/4 inches to 4 3/4 inches above the
top of the lower intake vent opening) [18] .
- Make sure that the back of the solid box bafe is perpendicular to the bottom of
the enclosure.
- Make sure that the back of the solid box bafe is against the top of the enclosure.
- Make sure that the solid box bafe is one inch or less [19] from the coils [10]
and condenser [11] of the refrigerator.
- Make sure that the solid box bafe is the full width of the inside of the
enclosure.

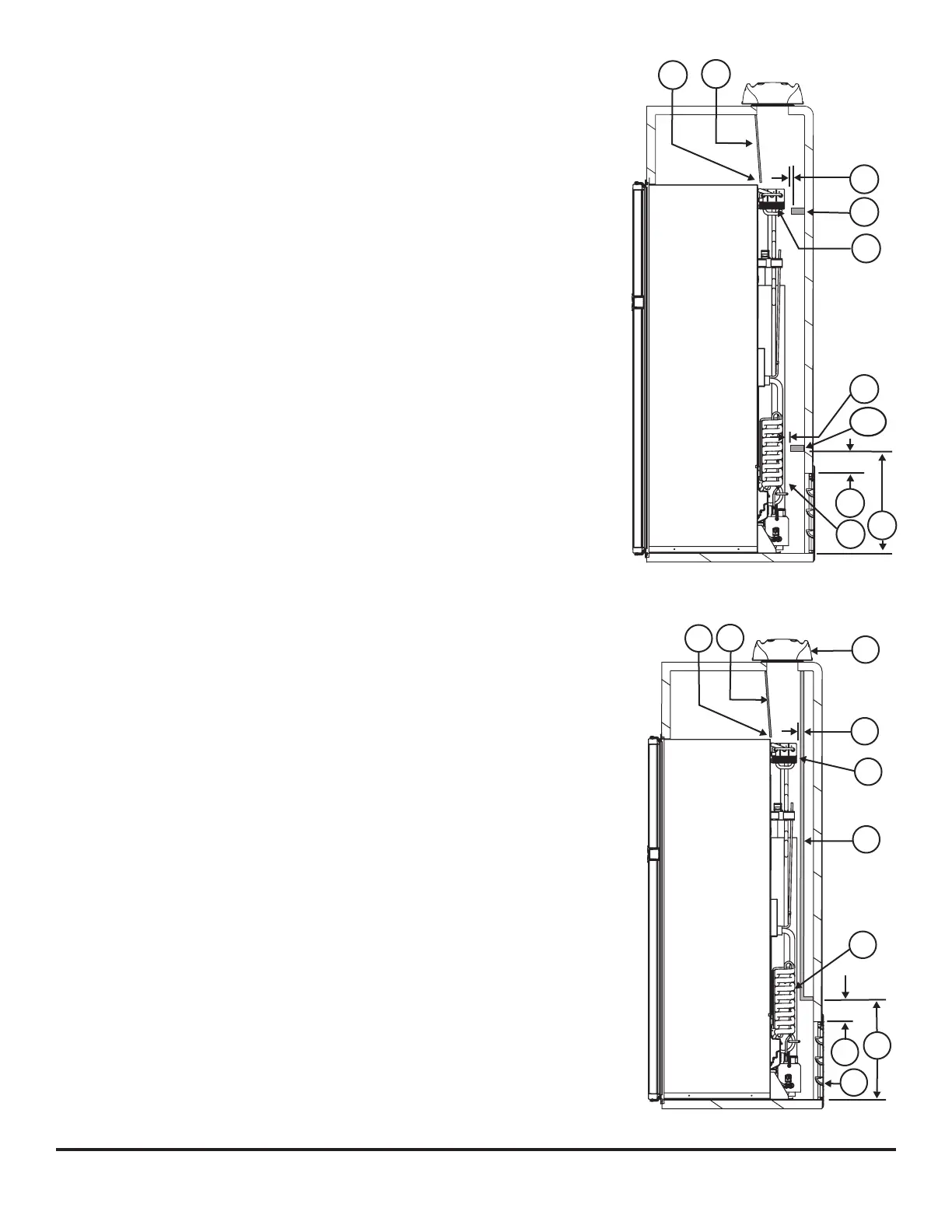

Art01781
