1210 SERIES PARTS LIST - PAGE 8

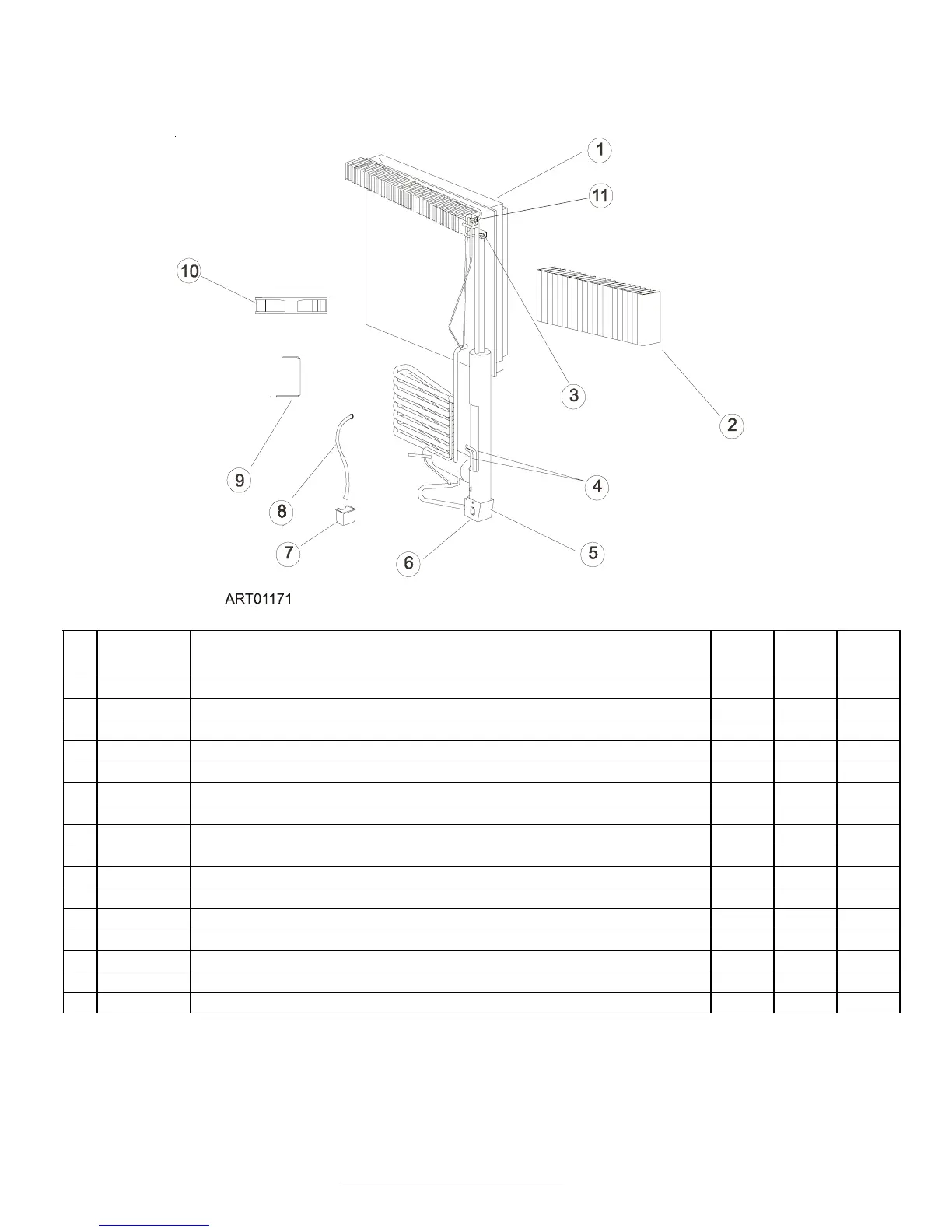

CABINET ASSEMBLY - REAR VIEW (COOLING UNIT AREA) - 1210 SERIES
NO. PART # DESCRIPTION
1210AC
MODELS
1210
MODELS
1211
MODELS
1 632321 NSC SYSTEM PACK-COOLING UNIT/STEP (BACKER HEATER) X X X
NS 630037 KIT-THERMAL SWITCH REPLACEMENT (SERIAL# 9767070 & BELOW) X X X
NS 630103 KIT-THERMAL SWITCH REPLACEMENT (SERIAL# 9767071 & ABOVE) X X X
2 618785 FINS-EVAPORATOR XXX
3 629099 CAP-HEAT DEFLECTOR X X X
4 618872 HEATER-AC (2 PER SYSTEM)(COOLING UNIT SERIAL# 11231145 & BELOW) X X X
630807 HEATER-AC/BACKER (2 PER SYSTEM)(COOLING UNIT SERIAL# 11231146 & ABOVE) X X X
5 618902 BASE-BURNER BOX XXX
6 618910 COV ER ASSY- BURNER BOX X X X
7 622546 DRIP CUP-REAR/PLASTIC X X X
8 622392 DRAIN HOSE ASSY XXX
9 628747 BRACKET-DC FAN (2 PER SYSTEM)(SERIAL # 9144576 & ABOVE) X X X
NS 628011 SPACER-NYLON XXX
10 628685 FAN-EXTERNAL DC (2 PER SYSTEM)(914576 & ABOVE) X X X
12 618093 THERMOSTAT-DC FAN/THERMO DISC X X X
NS 618915 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT/55.15" (NOT SHOWN) X X X
NS = NOT SHOWN
