34. Check the manual shut-off
valve shown in Figure 5.37 to
be sure it is in the ON position.
35. Check the Burner and Orifice
shown in Figure 5.38 for any
obstructions.
36. Check the main line gas pres-
sure (See gas pressure sec-
tion) for 11" WC.
37. Check for corrosion on the
pins of the Ignition Module as
shown in Figure 5.39. Clean
the pins with an eraser.
38. If the flame will not light and
stay lit replace the Ignition
Module.

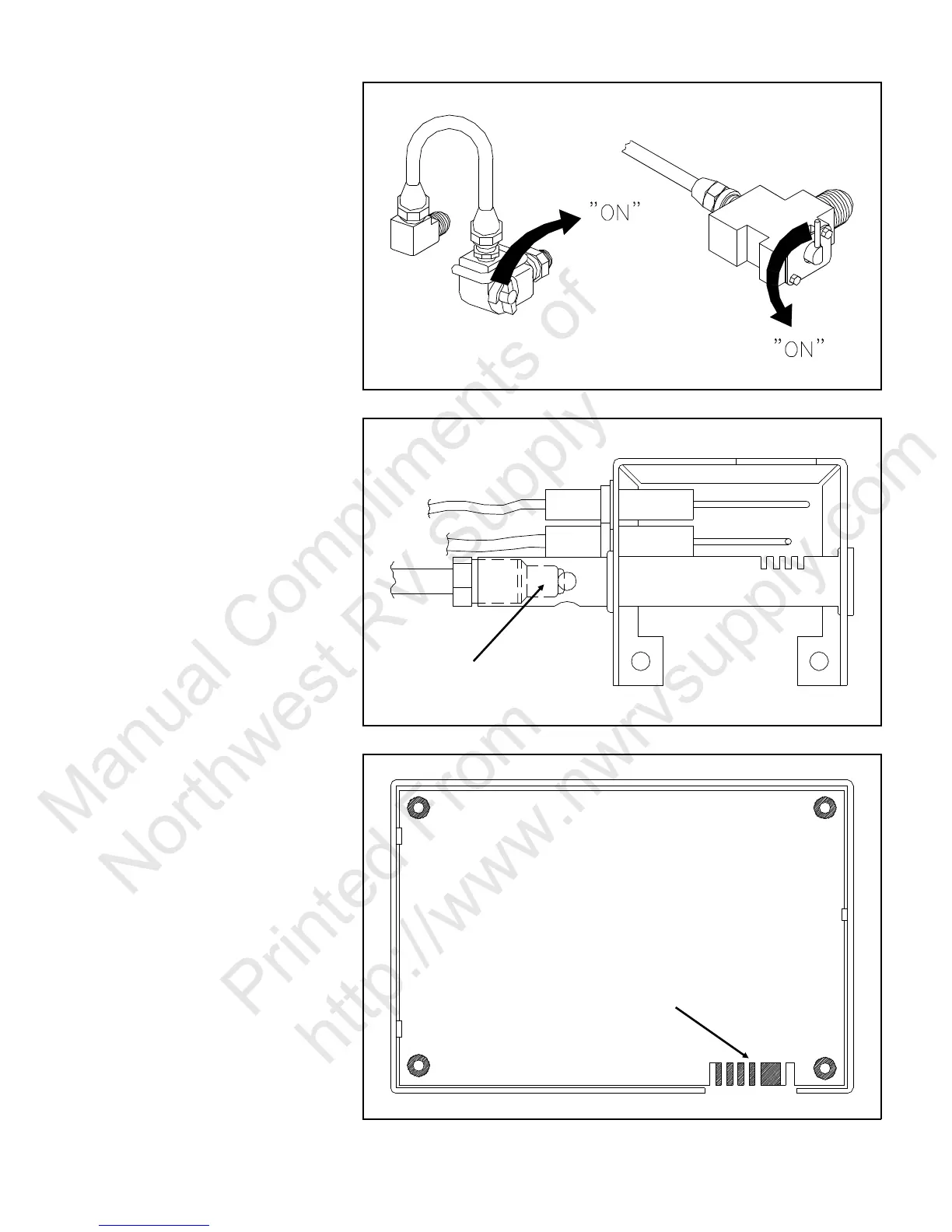

Figure 5.37 Manual Valve (alternate versions)
Figure 5.38 Burner Assembly
Figure 5.39 Edge Connector Visual Inspection
5-20
