Parts and Their Function
High Humidity Switch and
Interior Light Switch
Turning the HIGH HUMIDITY
switch to ON will keep the surface
between the door openings dry
during high humidity conditions.
The switch should be left in OFF
position unless condensation is
observed in this area.
Note:
During times when the refrigera-
tor is not in use (storage) the
HIGH HUMIDITY switch must be
in the OFF position. If the switch
remains in the ON position, a con-
tinuous amp draw may occur, and
result in battery run down.
The interior light switch turns on
the light when the door is opened
(two door models only) See sec-
tion about power supplies.
Power Supply Board
There are three versions of the
Power Supply board
1. The original version Power Sup-
ply board had a storage switch
located on the left side of the
board. The storage switch elimi-
nates all 12 volt DC to the refrig-
erator when in OFF (up) posi-
tion. A transformer was on the
board which allowed the refrig-
erator to operate on AC without
12 volt DC being applied.
Note:
On refrigerators with the "original
version" Power Supply board, the
storage switch must be in the ON
(down) position in order to allow
the refrigerator to operate in the
GAS or DC mode and to allow the
interior light and HIGH HUMIDITY
circuit to operate. When the stor-
age switch is in the OFF (up) posi-
tion the refrigerator will operate in
the AC electric mode, but not Gas
or DC Modes.

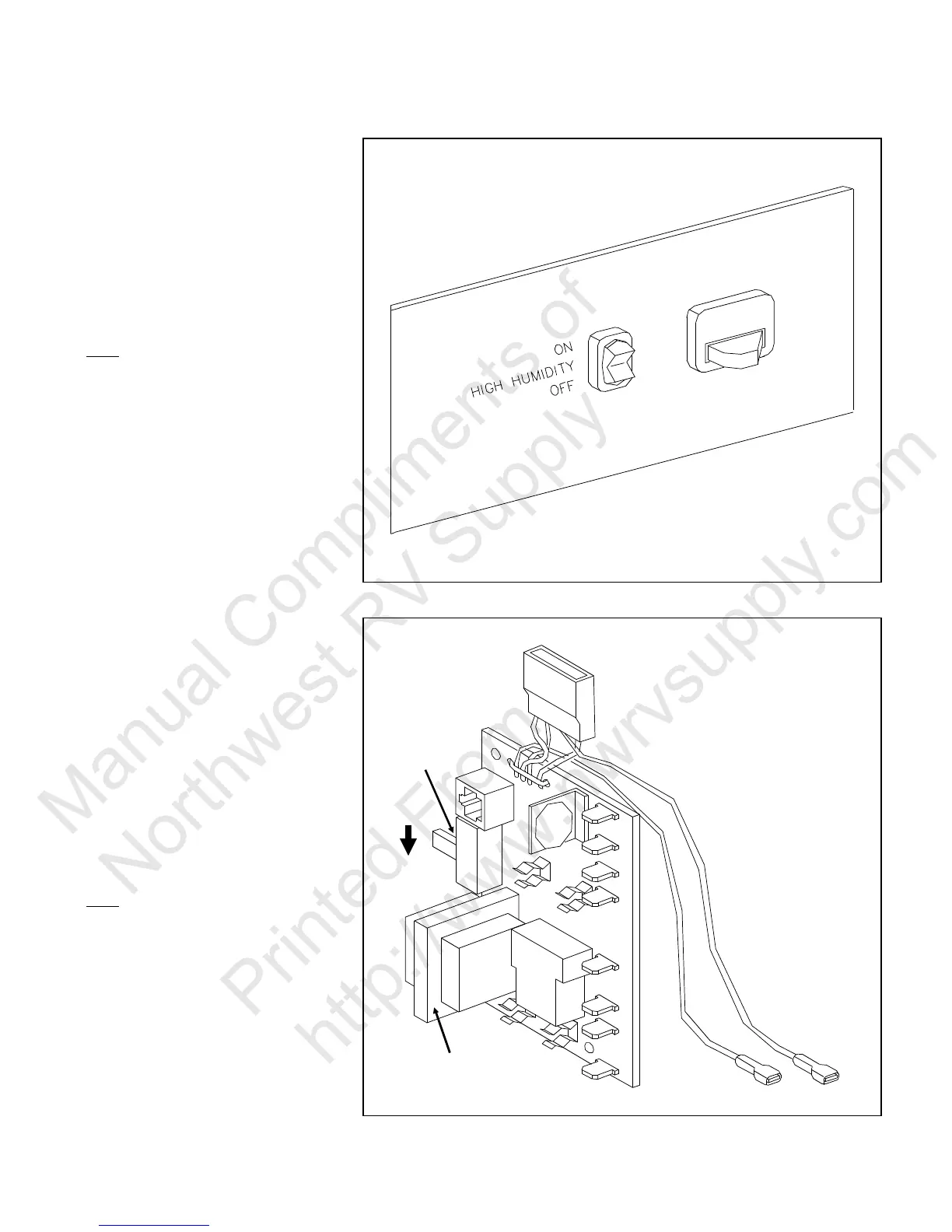

Figure 5.8 Light, Humidity Switch
Figure 5.9 Power Supply Board - Original Version
5-8
