7. Check the three places indi-
cated by Figure 5.55 for 12
volts. If you do not have 12
volts as shown replace the
Power Supply.
Note:
On the original version Power
Supply the diodes will be marked
D6 and D7 and the storage switch
must be in the down position "ON".
8. Reconnect the cable to the
Power Supply.
9. Remove the screws shown in
Figure 5.56 and pull the Eye-
brow assembly away from the
refrigerator.
10. Remove the Eyebrow board
from the Eyebrow as shown
by Figure 5.57.

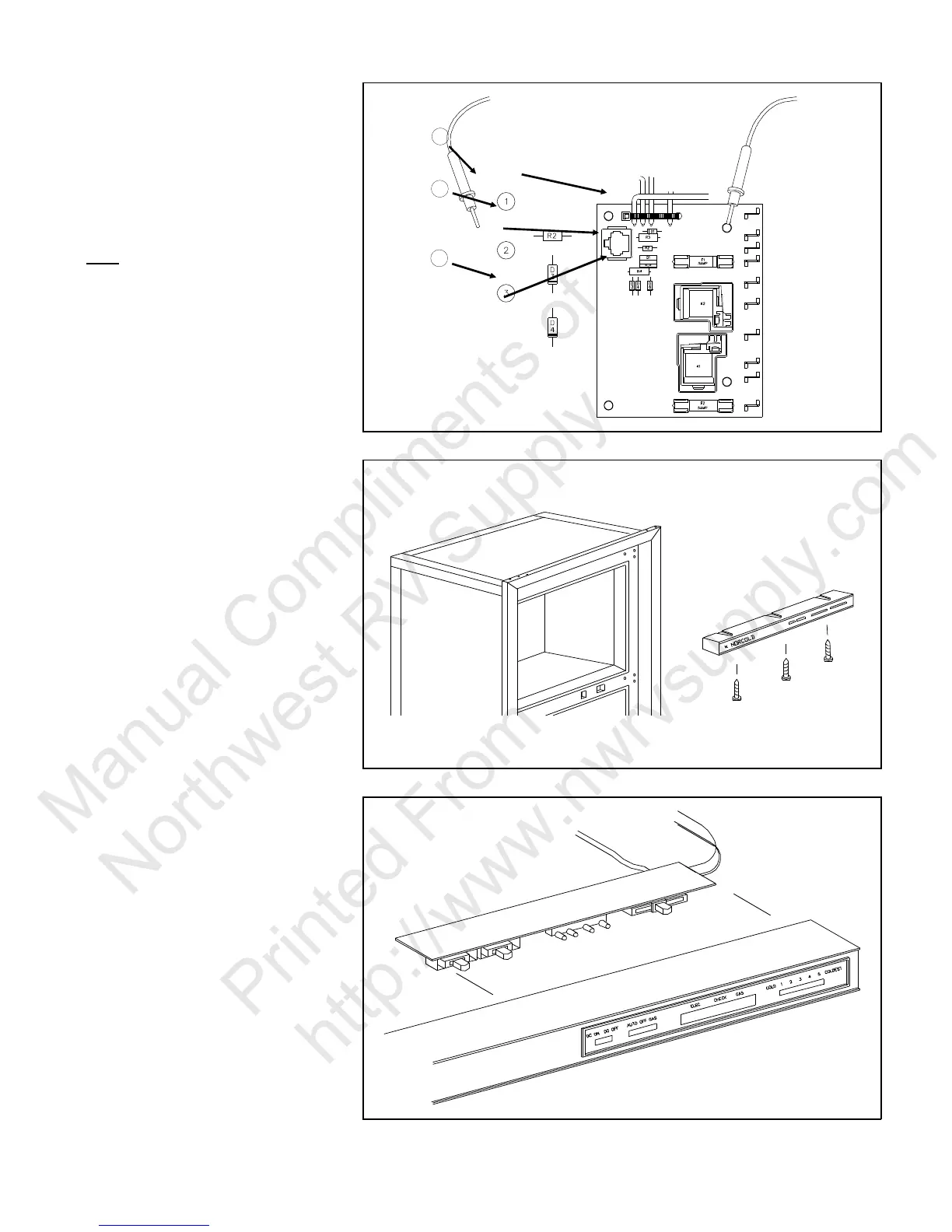

Figure 5.56 Eyebrow Removal
Figure 5.57 Eyebrow Board Removal
Figure 5.55 12 Volt DC Circuit Check
5-27
