Norcold DC740 - Connect the Electrical Components

Reverse The Door Swing
7. Move the latch to the opposite side of the door (Art02329):
-Remove the two screws that attach the door handle assembly to the door
- Carefully pull the door handle off the handle pocket so you do not lose the attached spring
- Reattach the door handle assembly to the door with the two screws
- Remove the hinge hole plug and put it into the hole in the opposite end of the door
8. Put the door onto the refrigerator and make sure that the gasket seals correctly.
9. Install and tighten the four screws that attach the door hinge to the bottom of the refrigerator.
Connect The Electrical Components
Electrical Current Necessary
12 VDC / 24 VDC
12 VDC Minimum/ Restart (cut-in)/ Maximum................................................................10.9 VDC / 12.2 VDC / 17 VDC
24 VDC Minimum/ Restart (cut-in)/ Maximum...........................................................23.8 VDC / 25.2 VDC / 31.5 VDC
Fuse.......................................................................................................................................................................................................15 A / 7.5 A
This refrigerator operates on DC electronic sources. Operation out of these limits may damage the
refrigerator’s electrical circuit parts and will void the warranty.
Make no changes to any of the electrical wiring supplied with the refrigerator. Any changes that you
make to the electrical wiring will void the warranty.
Connect The 12/24 Volts DC Supply
13

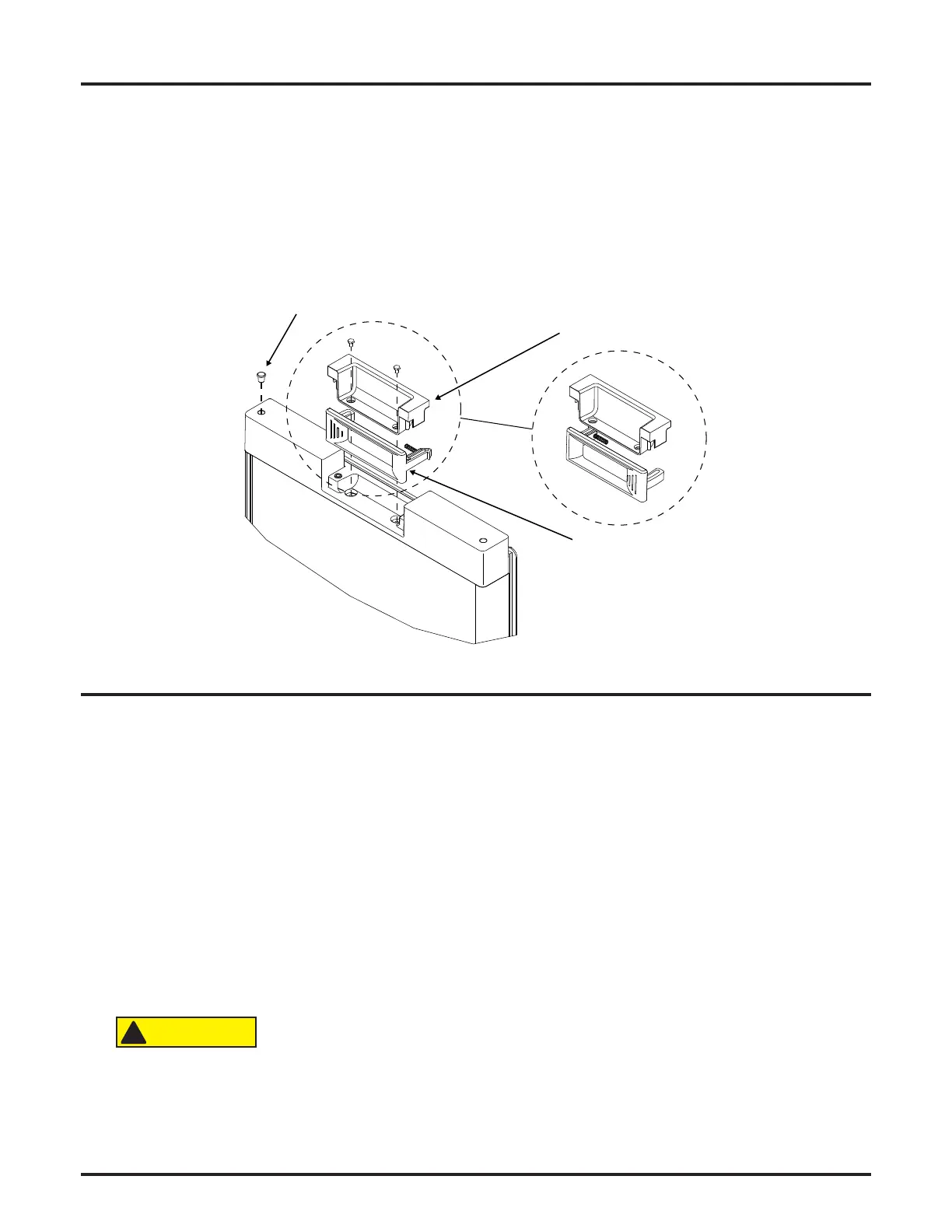

Art02329
Door handle
Handle pocket
Hinge hole plug
Only connect the refrigerator directly to the battery. Because they often
generate high voltage pulses and cause transistor defects in the control
module no other switches, lead wires, or electrical equipment should
share the wiring between the refrigerator and battery.
CAUTION
!
