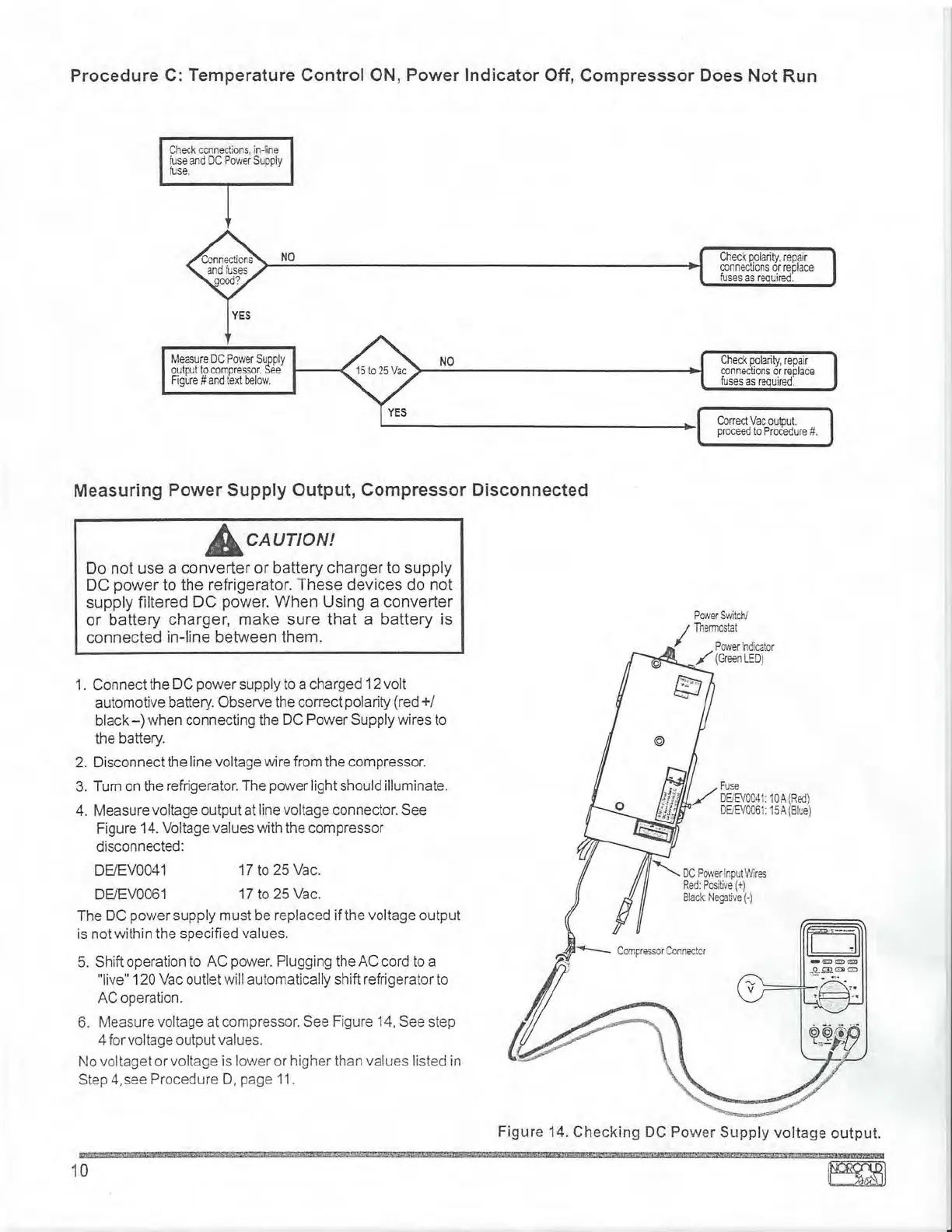

Procedure
C:
Temperature Control ON, Power Indicator Off, Compresssor Does Not Run
Check
ccnnections
, i
n-line
fuse
and
DC
Power
Supply
fuse.
NO
YES
Measure
DC
Power
Supply
output
to
compressor
.
See
1---<
Figure
#and
text
below.
NO
Measuring Power Supply Output, Compressor Disconnected
A cAUTION!
Do
not use a converter or battery charger
to
supply
DC
power
to
the refrigerator. These devices
do
not
supply filtered
DC power. When Using a converter
or battery charger, make sure
that
a battery is
connected
in-line between them.
1.
Connect the DC power supply to a charged 12 volt
automotive battery.
Observe the correct polarity
(red+/
black-)
when connecting the DC Power Supply wires to
the battery.
2.
Disconnect the line voltage wire from the compressor.
3.
Tum on the refrigerator. The power light should illuminate.
4.
Measure voltage output at line voltage connector. See
Figure 14. Voltage values with the compressor
disconnected:
DEIEV0041
DEIEV0061
17 to 25 Vac.
17 to 25 Vac.
The DC power supply must be replaced
if
the voltage output
is not within the specified
values.
5. Shift operation to
AC
power. Plugging the
ACcord
to a
"live" 120 Vac outlet will automatically shift refrigerator to
AC operation.
6. Measure
voltage at compressor. See Figure 14, See step
4 for voltage output
values.
No voltage! or voltage is lower or higher than values listed in
Step 4,see Procedure D, page
11.
Check
polarity
,
repair
ccnnections
or
replace
fuses
as
required
.
Check
polarity,
repa
ir
ccnnections
or
replace
fuses
as
requi
r
ed
.
Correct
Vac
output.
proceed
to
Procedure#.
Power
Sw
i
tchl
/Thermostat
P
ow
er
In
di
ca
to
r
/ (
Green
LED
)
DC P
owe
r Input
'f~
res
Red:
Pos
itiv
e ( +)
Bla
ck:
Ne
gati
ve(-)
Figure
14.
Checking
DC
Power
Supply
voltage
output.
