Norcold EV0041 - Troubleshooting

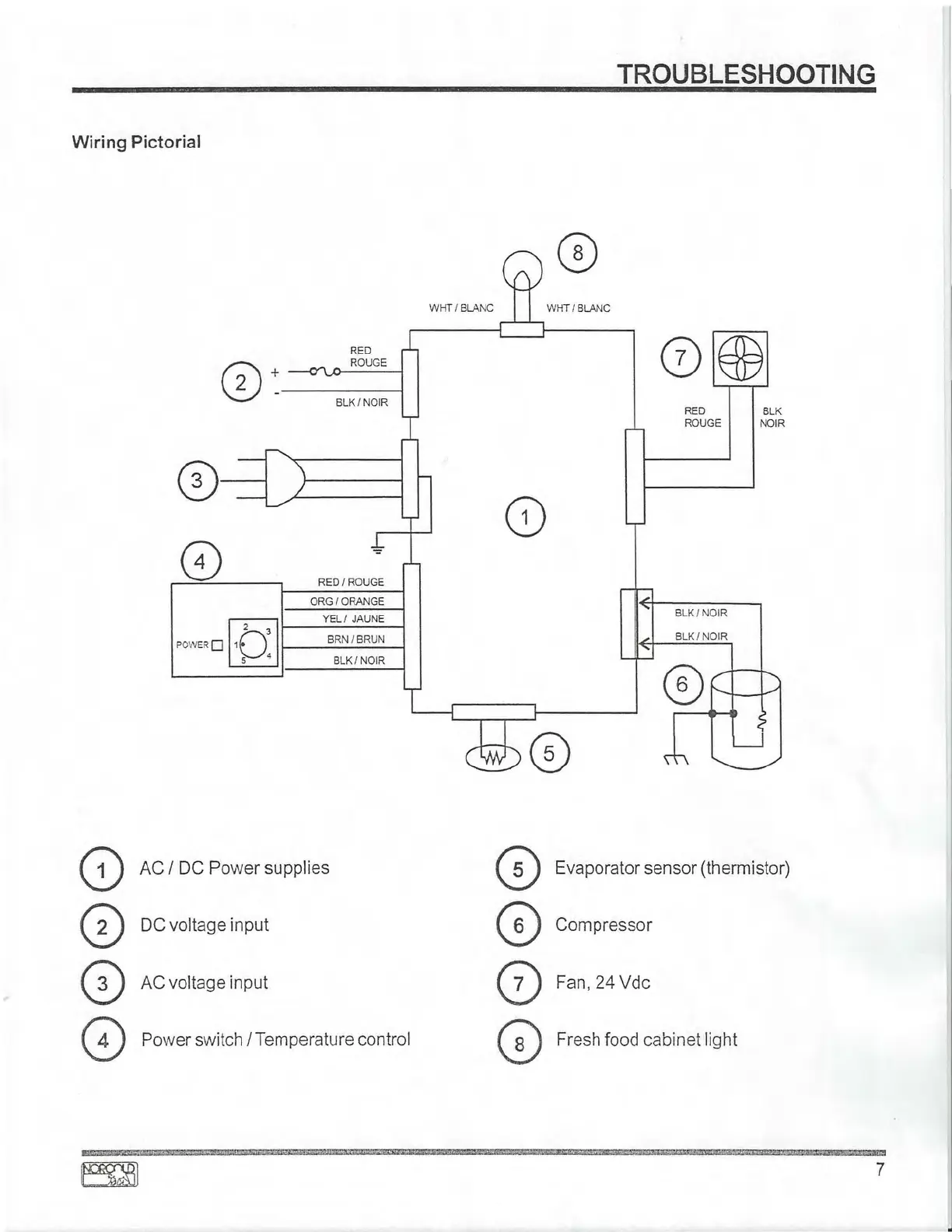

Wiring Pictorial
WHT I BLANC
RED/ROUGE
ORGIORANGE
8
AC I DC Power supplies
0
DC voltage input
0
AC voltage input
0
Power switch /Temperature control
~]
0
0
0
0
TROUBLESHOOTING
WHT/BLANC
RED BL K
ROUGE NO IR
BLK / NOIR
BLK/NOIR
Evaporator sensor (thermistor)
Compressor
Fan, 24 Vdc
Fresh food cabinet light
7
