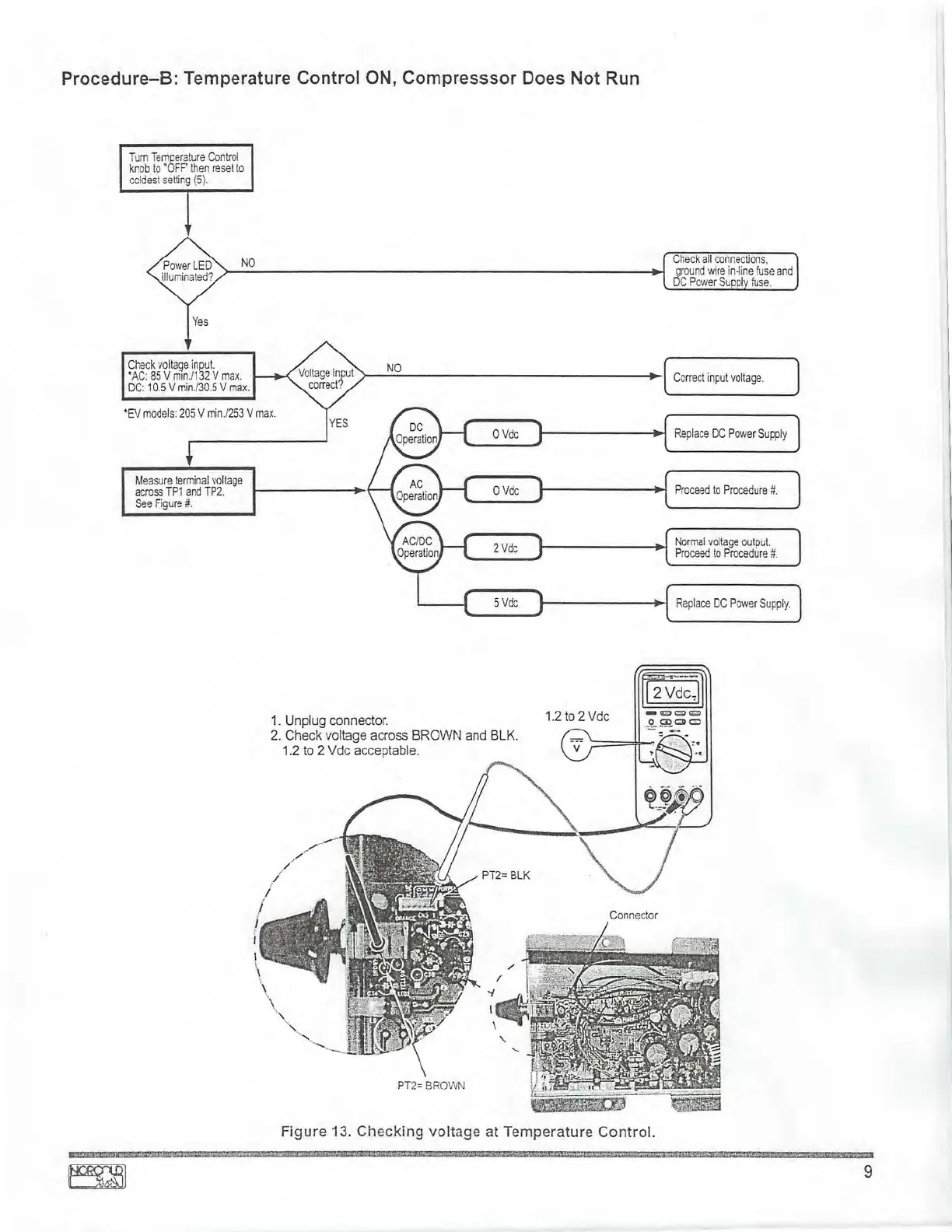

Norcold EV0041 - Procedure-B: Temperature Control ON, Compresssor Does Not Run

Procedure-S: Temperature Control ON, Compresssor Does Not Run
Tum Tempera tu re Contro l
kn ob to 'OFP then reset to
coldest s etti ng (5).
NO
Yes
Check voltage input.
'AC: 85 V mm./132 V max.
DC : 10.5 V min./30.5 V max.
'EV models: 205 V min ./ 253 V max.
Measure terminal voltage
acr oss TP1 and TP2.
See F igu re #.
NO
Correct in put voltage.
Replace DC Power Supply
Proceed to Procedure#.
Normal voltage output.
Pro ceed to Procedure #.
t--------t~ Replace DC Power S up ply .
Rd£1
----
1. Unplug connector.
2. Check voltage across BROWN and BLK.
1.2 to 2
Vdc acceptable.
PT 2= BROW~J
Figure 13. Checking voltage at Temperature Control.
9
