Norcold N260.3 Series User Manual

N260.3, 323
10
www.norcold.com
Exploded Rear View - Model 323
NOTE:
Refer to the Parts List for complete list of parts.
No. Description
3 Burner Box Cover Assembly
4 Spark Electrode
7 Burner Tube
9 Thermocouple
10 Burner Box Base
11 Control Assembly
13 Manual Shut-off Valve
14 Bracket-Manual Shut-off Valve
15 Interrupter
17 Heater-AC
18 Heater-DC
21 Selector Knob
22 Gas Knob
23 Baffle Assembly
24 Burner / Orifice Assembly

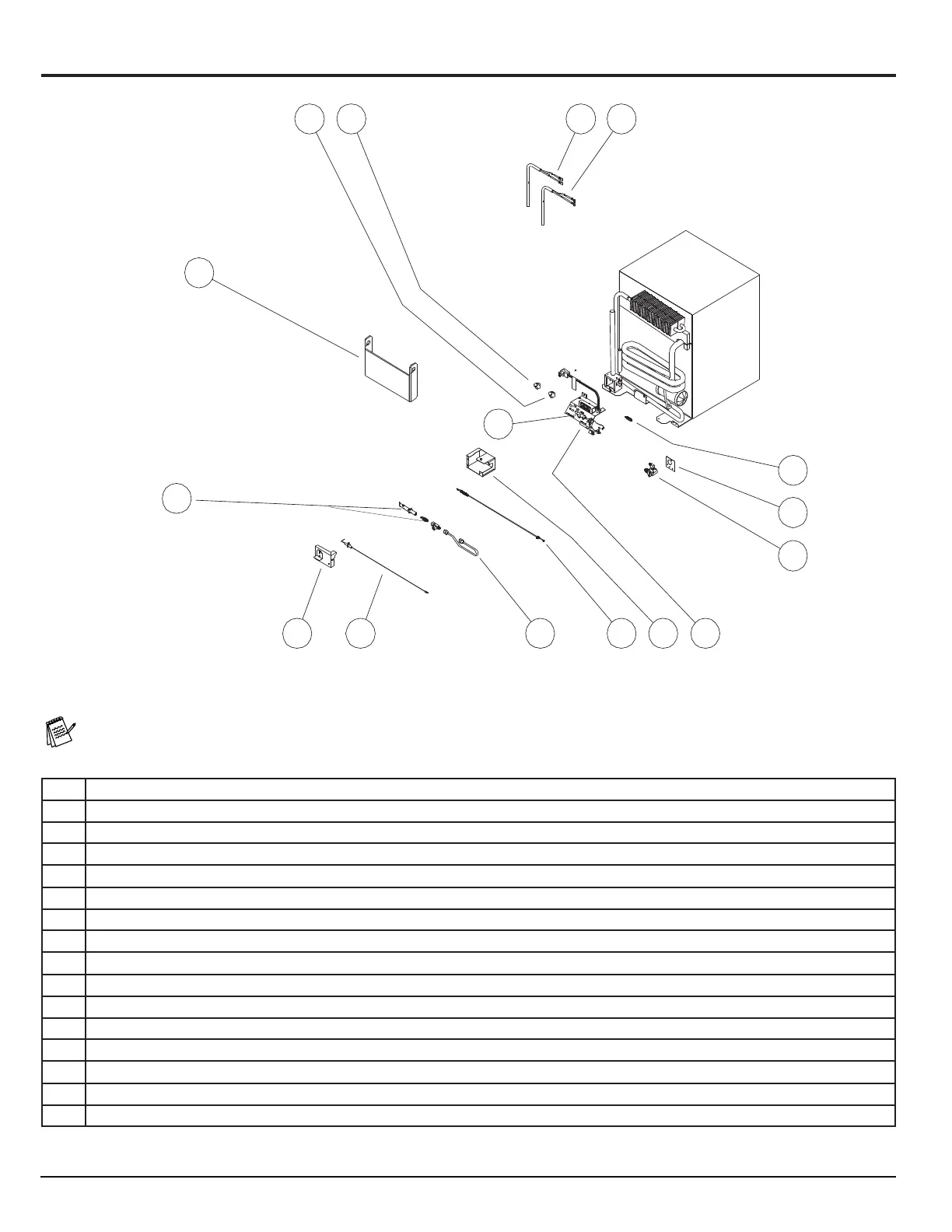

Fig. 8 - Exploded Rear View - 323
109
7
4
3
18 17
15
14
13
11
23
22
21
24
25
Art00644A-1

Norcold N260.3 Series Specifications

General

Brand	Norcold
Model	N260.3 Series
Category	Refrigerator
Language	English
