Norcold N260.3 Series User Manual

SERVICE MANUAL
7
www.norcold.com

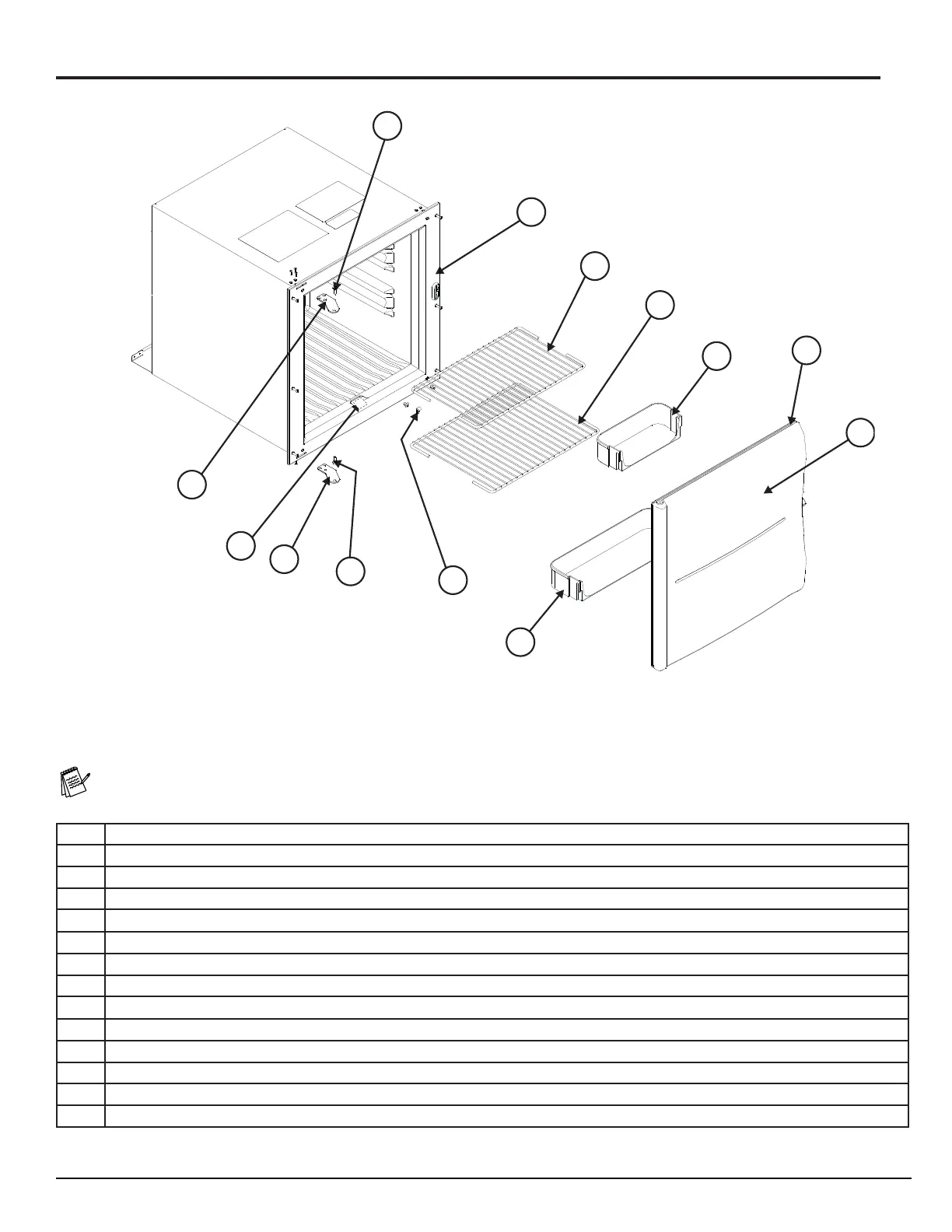

Fig. 5 - Exploded Front View - N260.3
1
13
12
10
11
9
8
7
5
4
3
2
6
Exploded Front View - Model N260.3
NOTE:
Refer to the Parts List for complete list and details.
No. Description
1 Breaker-Cabinet
2 Wire Shelf-TOP
3 Wire Shelf-BOTTOM
4 Bin Door Shelf-Small
5 Door Gasket
6 Door Assembly
7 Bin-Door Shelf-Large
8 Clip-Shelf
9 Hinge Pin-Bottom
10 Hinge-Lower/Upper
11 Nameplate
12 Hinge-Lower/Upper
13 Hinge Pin-Top
NOR000422A

Norcold N260.3 Series Specifications

General

Brand	Norcold
Model	N260.3 Series
Category	Refrigerator
Language	English
