Norcold N8DCX - Wiring Diagram; Component Identification

Item Description
A Display Module
B 12 VDC Input
C 15A Fuse
D Main PCBA Cooling Unit
E Exterior Fan
F Freezer Compartment Thermistor
G Fresh Food Compartment Thermistor
H Interior Light
I Interior Fan
J Interior Light Switch
K Magnet Valve

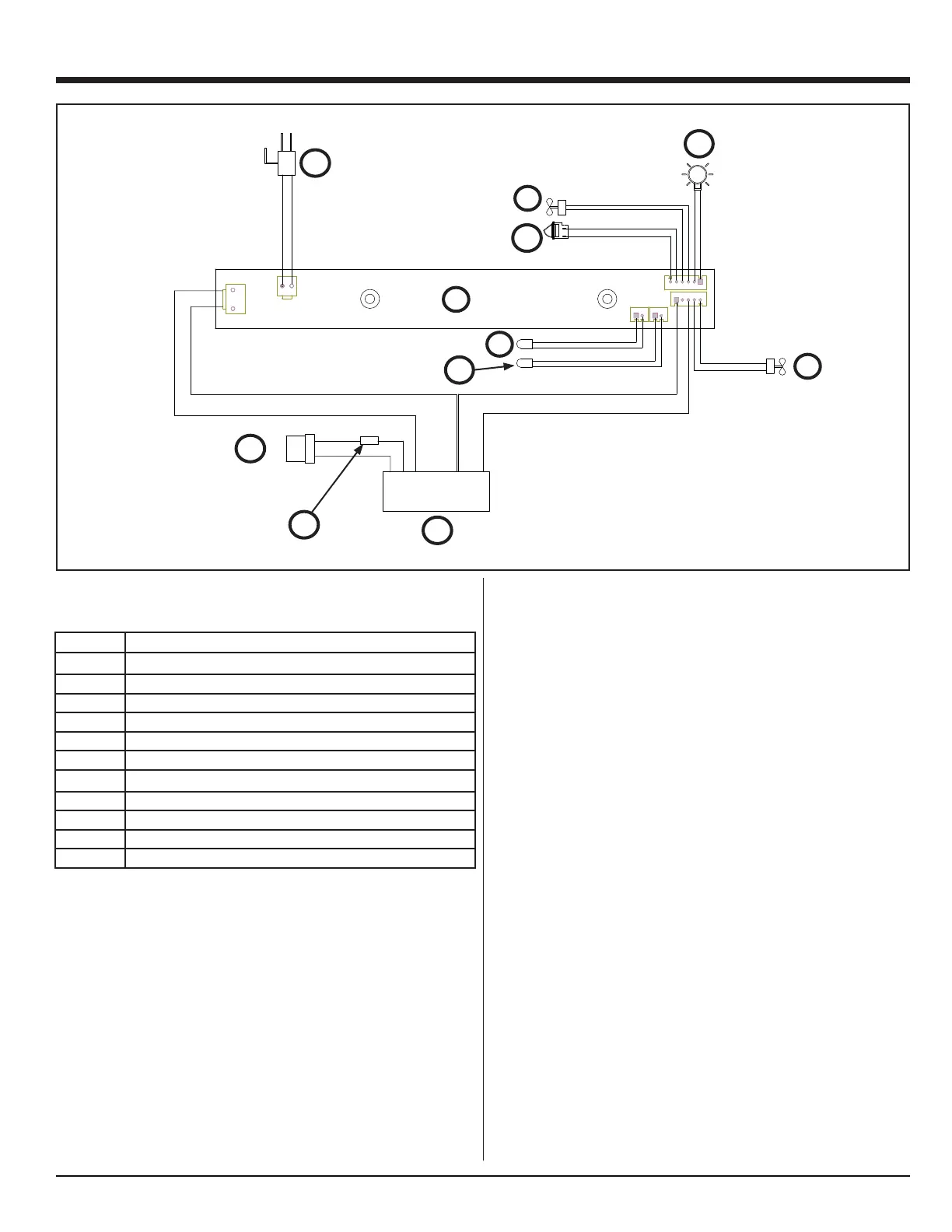

Fig. 6 - Wiring diagram
WIRING DIAGRAM
SERVICE MANUAL
27
www.norcold.com
FJ2
T12V
GND
GND
MK
LC
LD
FJ1
LED
12V
12V
12V
CN4
CN5
CN2
CN1
DCFDCF
RD/RG
WH/BC
+
-
+
-
+
F
D C
P
T
FUSE
BK/NR
RD/RG
BL/BL
WH/BC
RD/RG
WH/BC
WH/BC
BL/BL
BK/NR
BR/BN
BK/NR
WH/BC
BK/NR
WH/BC
BR/BN
NOR000949A
G
E
F
J
A
B
H
I
K
C
D
