6 Operating status messages
BU 0240 en-US-4920 77
Pos: 65 3 /Anlei tung en/El ektr onik/FU und Star ter/6 . Meld ungen zum Betr iebsz usta nd/Diag nos e LEDs/D iag nos e-LEDs am SK 2x0E ( BG 4) un d SK 2x5 E [SK 2x xE] @ 2\mod_1350999163928_14638.docx @ 49243 @ 355 @ 1
6.2.2 Diagnostic LEDs on the SK 2x0E (size 4) and SK 4x5E
1
RJ12,
RS 232, RS 485
2
Diagnostic LEDs
3
P1/P2, LED-VFD,
LED-ASi

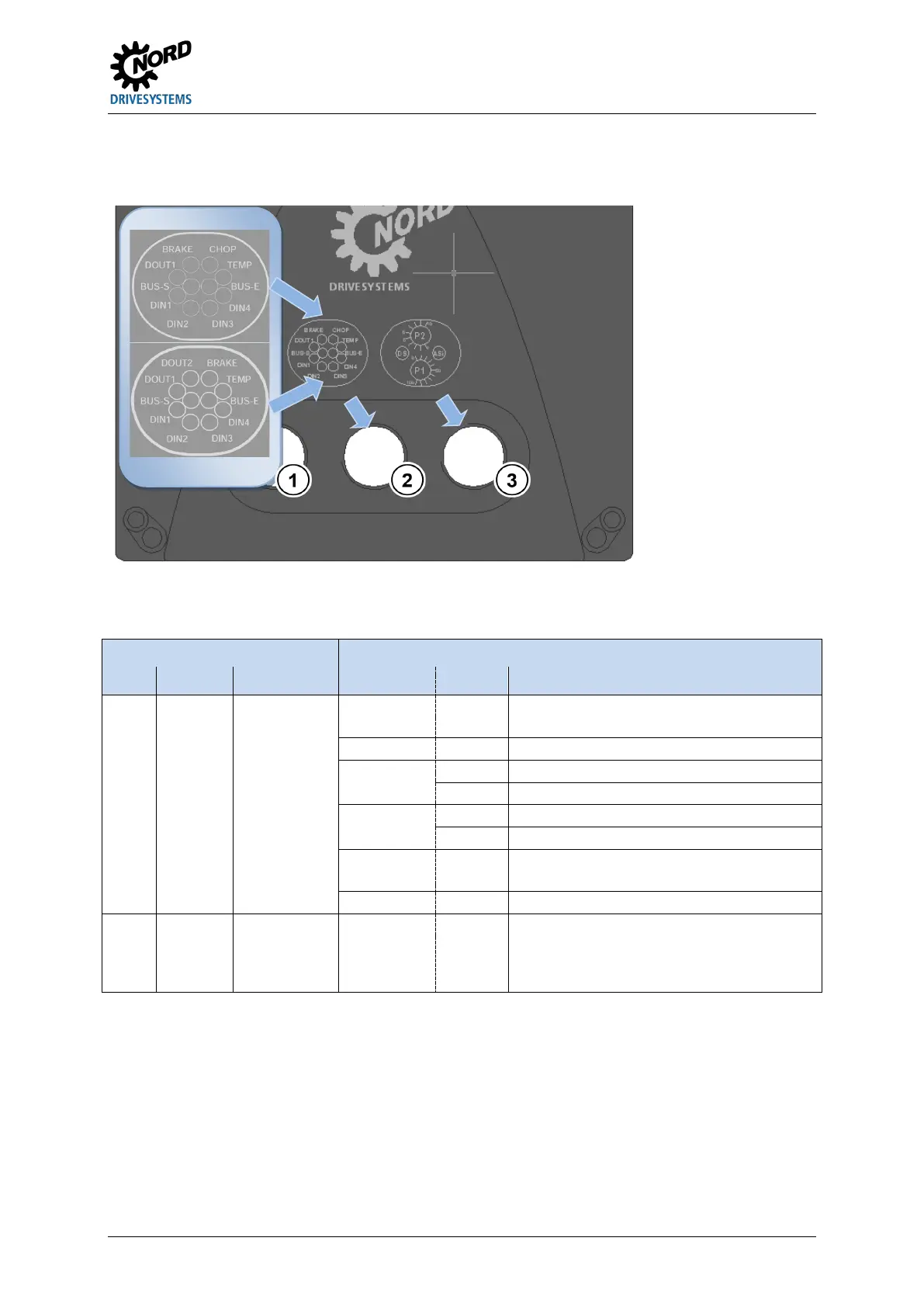

Figure 12: Diagnostic openings SK 2x0E size 4 or SK 4x5E
Status LEDs
LED Signal
Name Color Description Status Meaning
DS
dual
red/green
VFD status
off
VFD not on standby,
 no line and control voltage
green on
VFD is enabled (VFD running)
green 0.5 Hz VFD is in standby or not enabled
Flashing
4 Hz
VFD is in switch-on block
red/green
4 Hz
Warning
Alternating
1 Hz
Degree of overload of switched-on VFD
green on +
flashing red
VFD not on standby,
 Control voltage available but no line voltage
flashing red Error, flashing frequency → error number
AS-i
dual
red/green
Status AS-i
Details (

Section Fehler! Verweisquelle
konnte nicht gefunden werden. "Fehler!
Verweisquelle konnte nicht gefunden
werden.")
SK 2x5E
SK 2x0E
