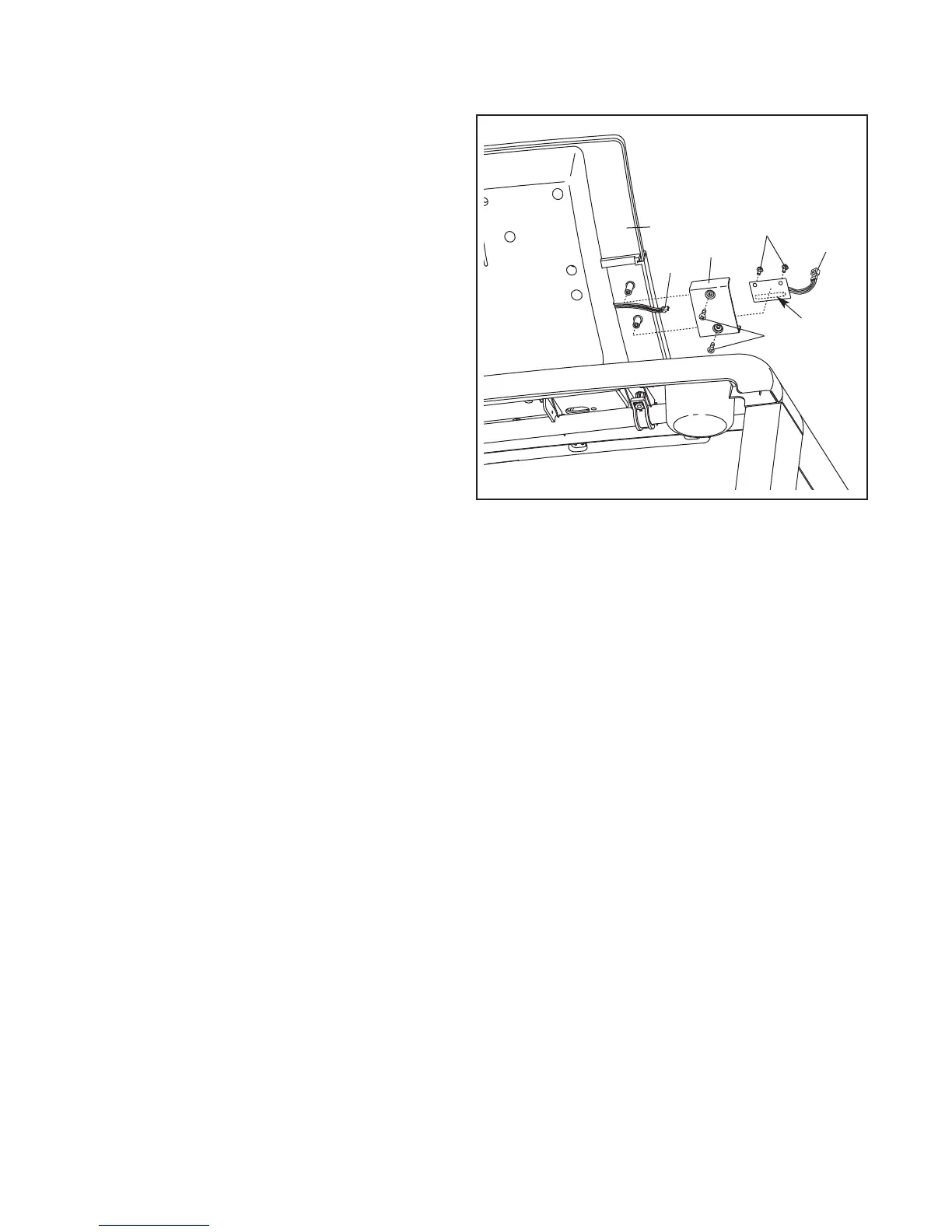

If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
R
emove the indicated 1/2" Screws (1) and the
Access Door (87) from the back side of the
Console (91).
2. Connect the wire on the receiver (A) to the indi-
cated wire extending from the Console Back
(91).
Hold the receiver so the small cylinder
is oriented and is facing the Console Back.
Attach the receiver to the plastic posts on the
Access Door (87) with the two included small
screws.
3.
Make sure that no wires are pinched.
Reattach the Access Door (87) with the 1/2"
Screws (1). Discard the other wires included
with the receiver.
A
87
Small
Cylinder
1
91
Wire
Small
Screws
To Next Page
