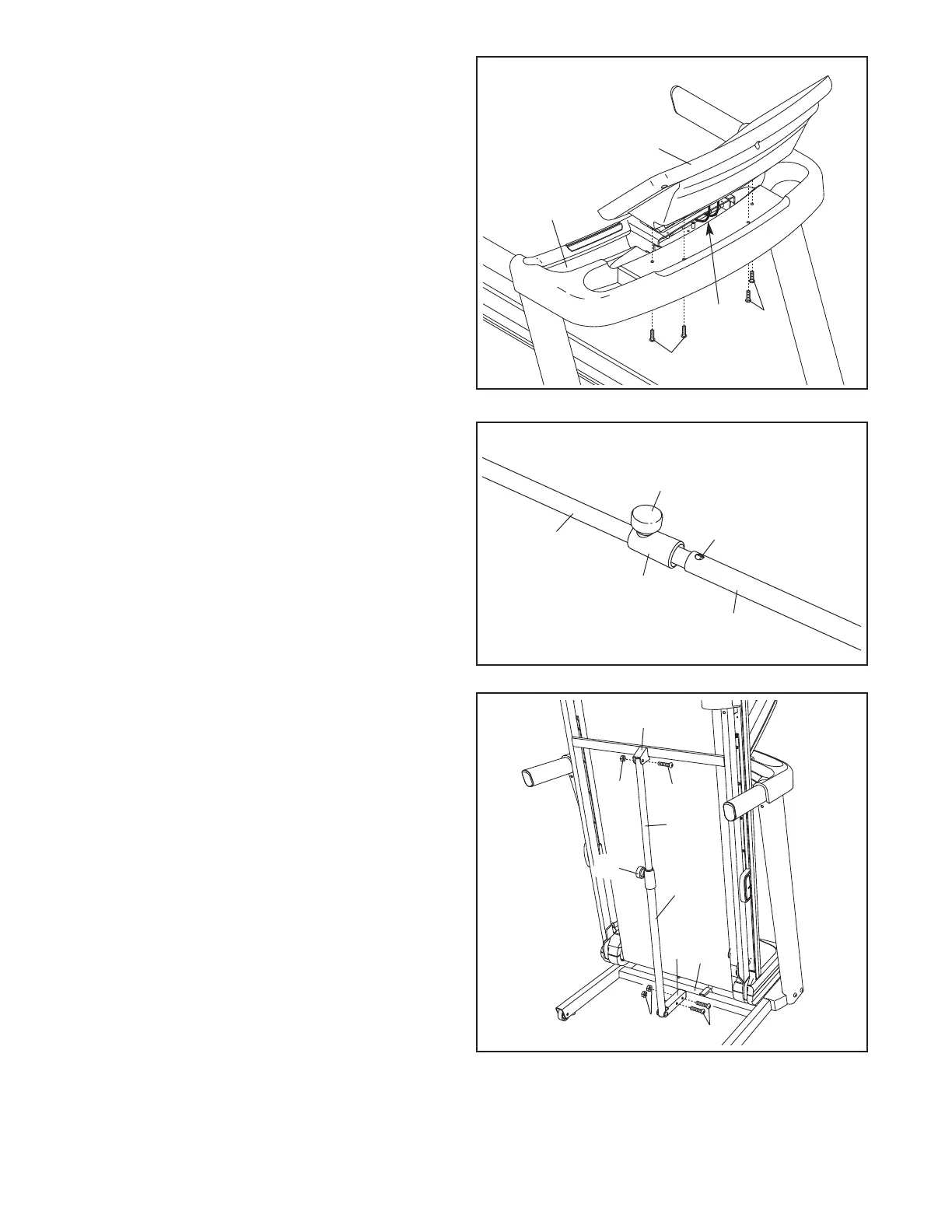

12. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown. Attach the Latch Bracket (14) and
the Storage Latch (53) to the Base (83) with two
3/8" x 2" Bolts (4) and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
53
8
8
Large
Barrel
83
4
56
14
12
4
11. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the hole.
Pull on the sleeve to make sure that it is
locked into place.
54
Sleeve
Hole
Tube
53
10. Insert the wires from the console assembly into
the handrail assembly. Set the console assem-
bly on the handrail assembly.
Attach the console assembly to the handrail as-
sembly with four 1/4" x 3/4" Bolts (5). Be careful
not to pinch the wires or sit on the Hood (not
s
hown).
Console
Assembly
5
5
Wires
Handrail
Assembly
1
0
13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex keys in a secure place; the large hex key
is used to adjust the walking belt (see pages 26 and 27).
11
54
10
To Next Page
