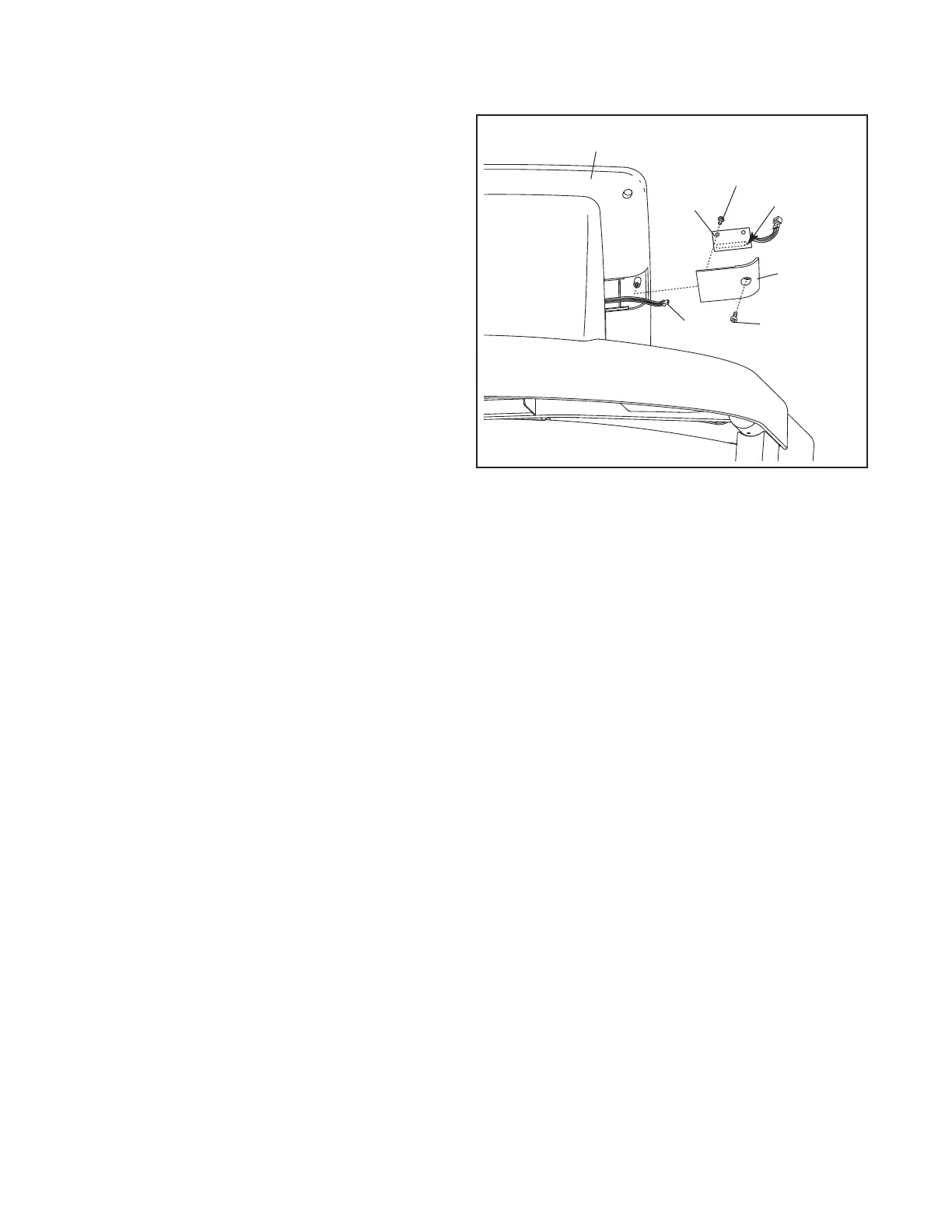

If you purchase the optional chest pulse sensor (see page 22), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1
. Make sure that the power cord is unplugged.
Remove the indicated #8 x 1/2" Screw (1) and
t
he Access Door (87) from the Console Back
(91).
2. Connect the wire on the receiver to the indicated
wire extending from the Console Back (91).
Hold the receiver so the small cylinder is ori-
ented as shown and is facing the Console
Back. Attach the receiver to the plastic posts on
the Access Door (87) with the included small
screw.
3. Be careful not to pinch the wires. Reattach
the Access Door (87) with the #8 x 1/2" Screw
(1). Discard the other wires included with the re-
ceiver.
R
eceiver
87
Small
C
ylinder
1
9
1
Wire
Small
Screw
