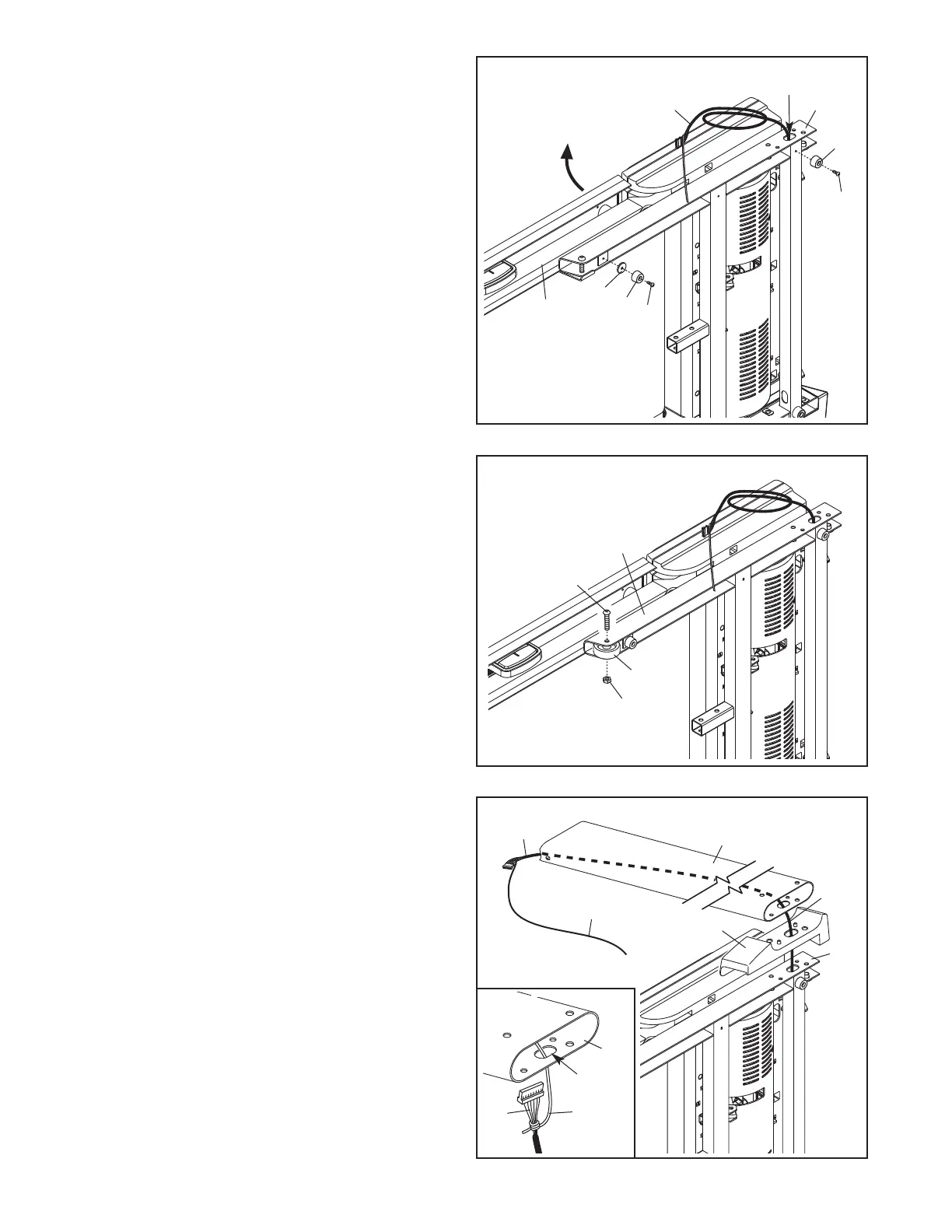

3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown. Then, set the
Right Upright Spacer on the Base (83). Be care-
ful not to pinch the Upright Wire.
Have a second person hold the Right Upright
(78) near the Base (83). See the inset drawing.
Make sure that the wire tie goes through the in-
dicated hole in the Right Upright. Tie the wire tie
securely around the end of the Upright Wire
(38). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Right Upright.
83
38
78
79
Wire Tie
38
3
2. Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4) from the Base (83). Attach a Wheel (84) with
the Bolt and the Nut that you just removed. Do
not overtighten the Nut; the Wheel must turn
freely.
83
4
8
2
84
Wire
Tie
78
Hole
38
1
. Make sure that the power cord is unplugged.
W
ith the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the tie securing the Upright Wire (38) to the
Base (83). Next, locate the tie in the indicated
hole in the Base, and use the tie to pull the
Upright Wire out of the hole.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
8
3
2
56
81
1
81
2
38
H
ole
13
