8

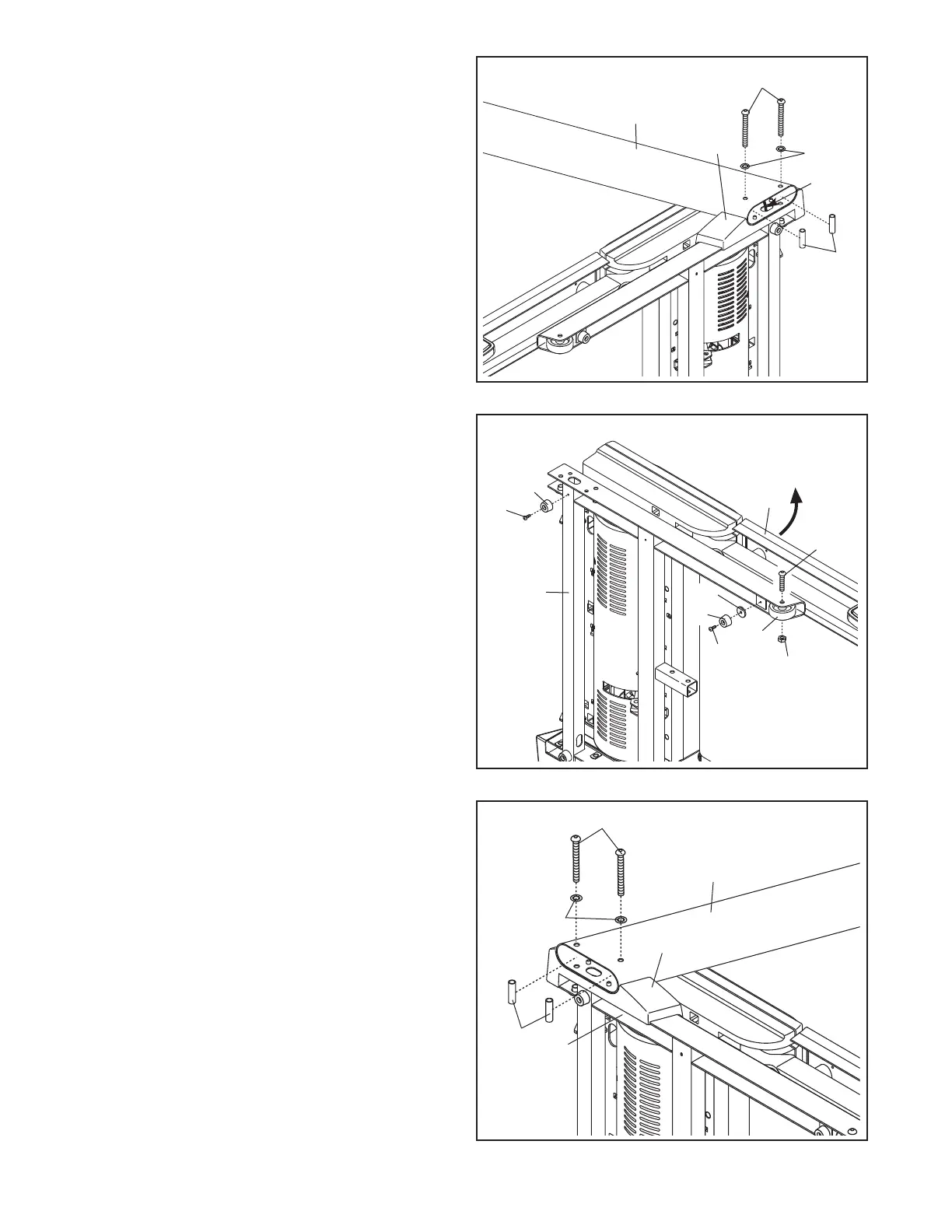

6. Set the Left Upright Spacer (76) on the Base
(83). Have a second person hold the Left
Upright (74) near the Base. Next, hold a Bolt
Spacer (80) inside the lower end of the Left
Upright. Insert a 3/8" x 4 1/2" Bolt (6) with a 3/8"
Star Washer (9) into the Left Upright and the
Bolt Spacer. Repeat this step with a second
Bolt Spacer (80), 3/8" x 4 1/2" Bolt (6), and
3/8" Star Washer (9). Then, set the Left Upright
in the Left Upright Spacer.
Tighten the 3/8" x 4 1/2" Bolts (6) until the heads
of the Bolts touch the Left Upright (74); do not
fully tighten the Bolts yet.
With the help of a second person, lower the
treadmill so that the Base (83) is flat on the
floor.
76
74
6
83
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4), from the Base (83). Attach a Wheel (84)
with the Bolt and the Nut that you just removed.
Do not overtighten the Nut; the Wheel must
turn freely.
5
83
84
56
8
81
2
4
2
4. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (78). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
w
ith a second Bolt Spacer (80), 3/8" x 4 1/2"
Bolt (6), and 3/8" Star Washer (9). Then, set
the Right Upright in the Right Upright Spacer
(79). Be careful not to pinch the Upright Wire
(
38).
Tighten the 3/8" x 4 1/2" Bolts (6) until the heads
of the Bolts touch the Right Upright (78); do not
fully tighten the Bolts yet.
79
78
6
4
38
9
9
80
81
80
13
