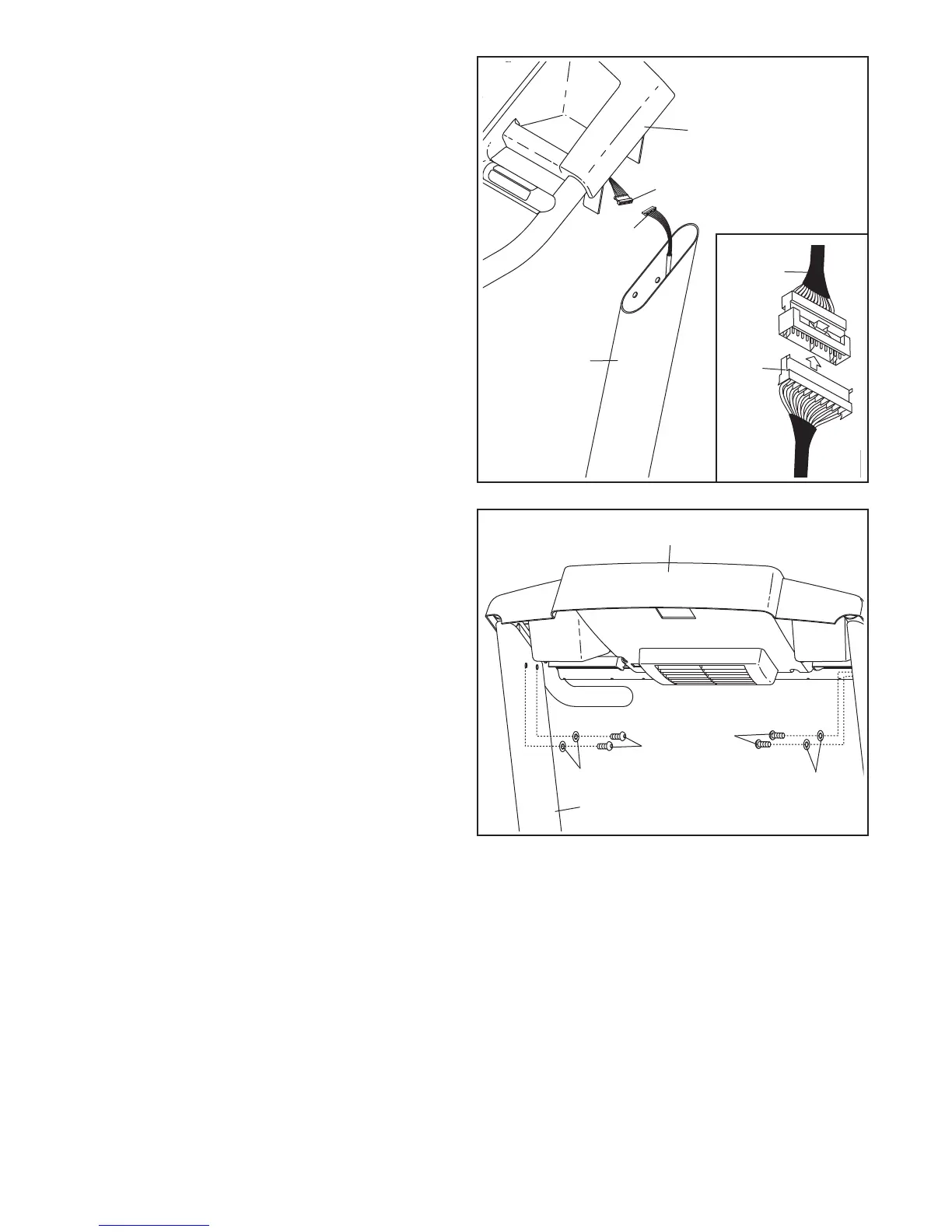

2. With the help of a second person, carefully raise
the Uprights (20) to the vertical position. Remove
the band securing the Upright Wire Harness (73)
to the right Upright. Have a second person hold
the console assembly near the right Upright.
Connect the Upright Wire Harness (73) to the
console wire extending from the console assem-
bly. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors into
the right Upright (20).
2
Console
A
ssembly
Console Wire
3. Carefully set the console assembly on the
Uprights (20) as shown. Make sure that no
wires are pinched. Attach the console assem-
bly to the Uprights with four Star Washers (67)
and four Handrail Bolts (72). Start all four
Handrail Bolts before tightening them.
3
73
20
72
72
20
67
67
73
Console Assembly
Console
Wire
To Next Page
