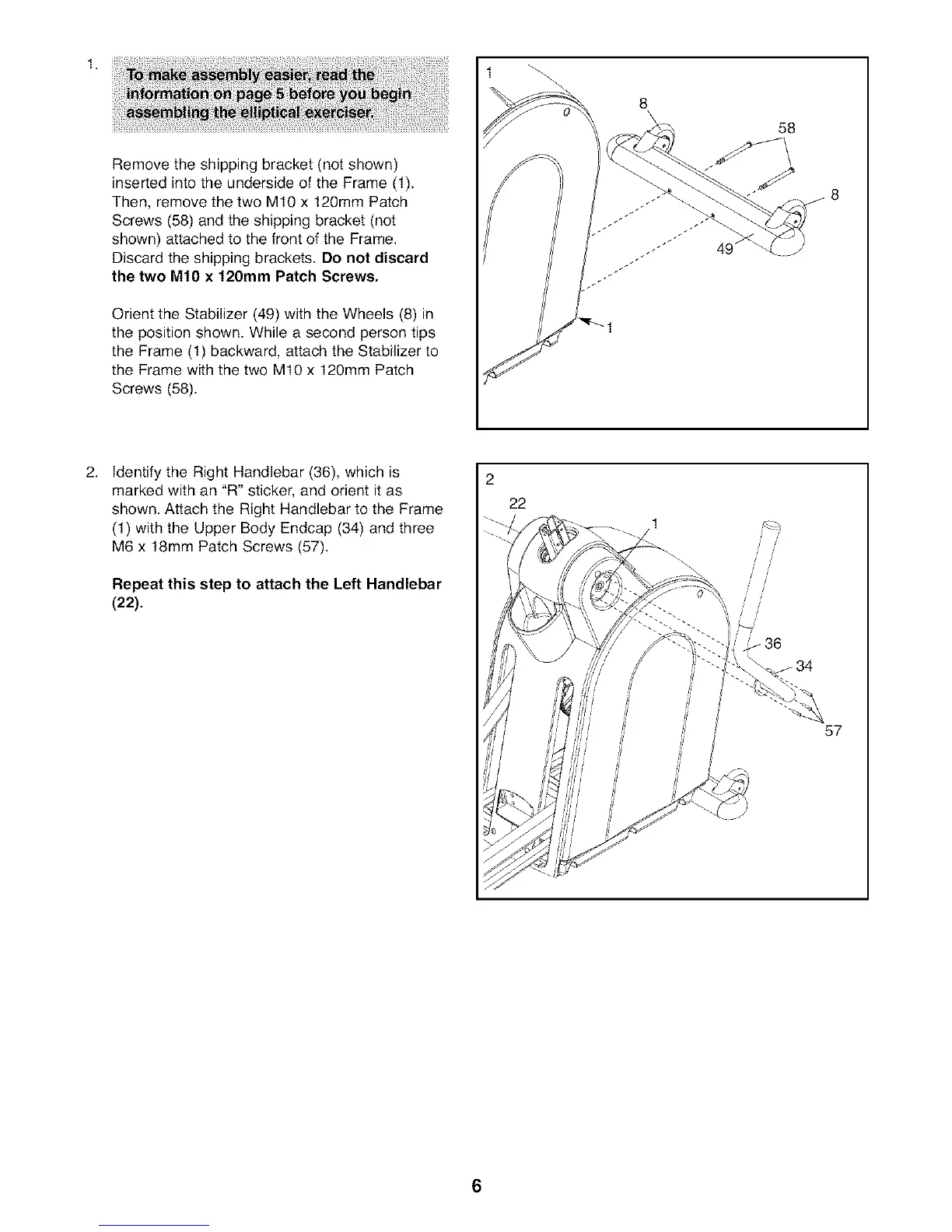

Remove the shipping bracket (not shown)
inserted into the underside of the Frame (1).
Then, remove the two M10 x 12gram Patch
Screws (58) and the shipping bracket (not
shown) attached to the front of the Frame.
Discard the shipping brackets. Do not discard
the two Mt0 x 120ram Patch Screws.
Orient the Stabilizer (49) with the Wheels (8) in
the position shown. While a second person tips
the Frame (1) backward, attach the Stabilizer to
the Frame with the two M1O x 120mm Patch
Screws (58).
8
58
2.
Identify the Right Handlebar (36), which is
marked with an "R" sticker, and orient it as
shown. Attach the Right Handlebar to the Frame
(1) with the Upper Body Endcap (34) and three
M6 x 18mm Patch Screws (57).
Repeat this step to attach the Left Handlebar
(22).
2
22
6
